3.9 Measurement Diagrams for Installation
3.9.1 Door Width
The minimum door width allowed (measured from the door shackle to the hinge) is 230 mm (9.05´´). If the door is
narrower, the door shackle will hit the locker when the door is being closed.

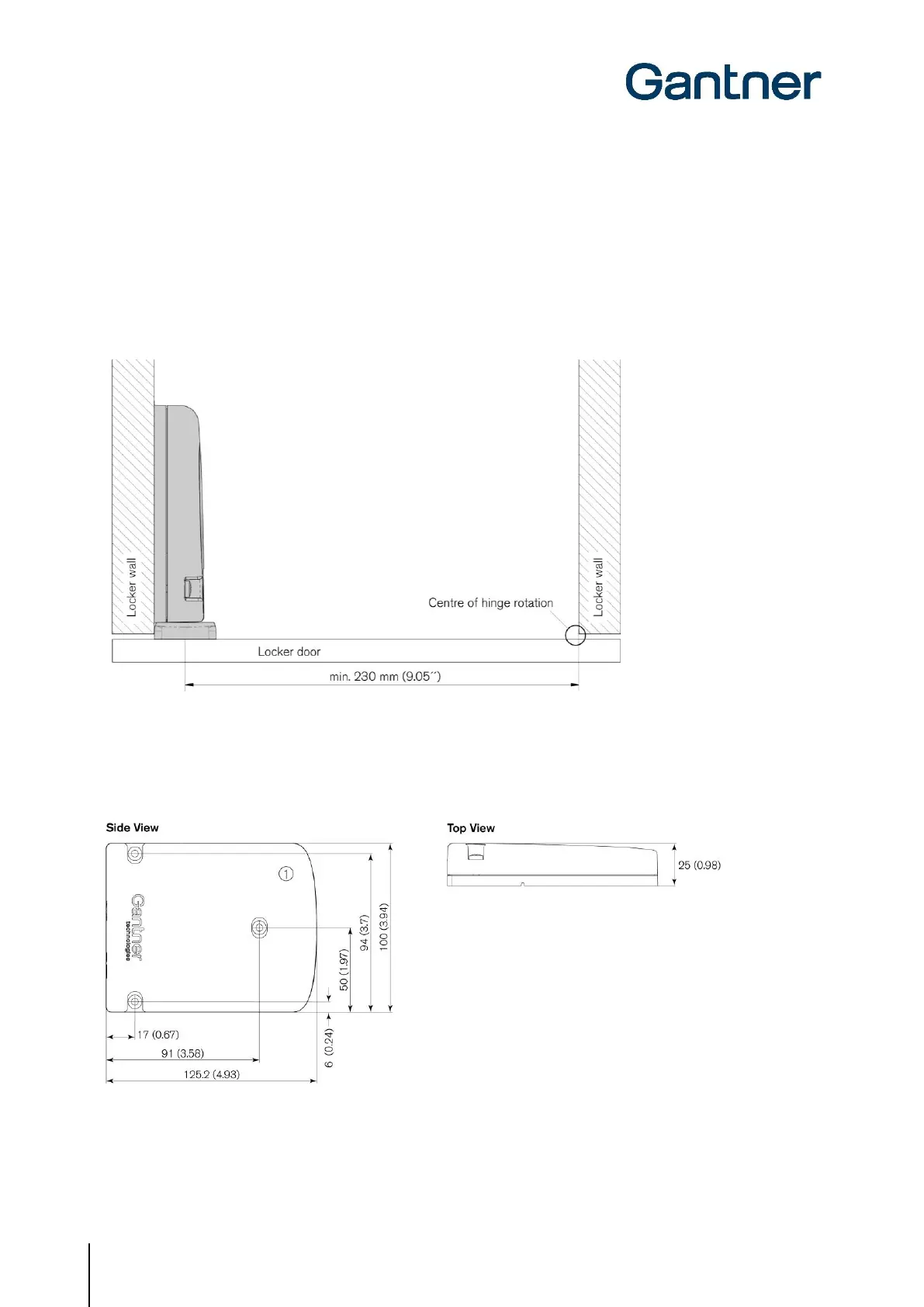

Figure 3.4 - Minimum door width
3.9.2 Dimensions of the GAT ECO.Side Lock 7010 F/ISO and GAT NET.Lock Bolt Sets
Figure 3.5 - Dimensions of the GAT ECO.Side Lock 7010 F/ISO (dimensions in mm – inches shown in brackets)
