GAT ECO.Side Lock 7010 (NW) F/ISO
Installation
www.gantner.com HB_GAT-ECOSide-Lock7010-FISO--EN_11 27
3.11.2 Installation Requirements for the GAT ECO.Side Lock 7010 F/ISO and Bolt Set
During installation, please pay attention to the following points:
- The thickness of the locker door must be between 18 and 26 mm (0.71´´ and 1.02´´). See Figure 3.11.
- When the door is pressed shut, ensure there is no gap between the bolt set (2) and the front of the GAT ECO.Side
Lock 7010 F/ISO. Ideally the bolt set should touch the front of the lock (see measurement in Figure 3.11).
- The locker door, the bolt set, and the front side of the GAT ECO.Side Lock 7010 F/ISO must be perpendicular and
parallel to each other. If not, the door contact in the GAT ECO.Side Lock 7010 F/ISO can potentially not function
correctly.
- If right and left-hinged locker doors are in use together, please note the correct LED position. The GAT ECO.Side
Lock 7010 F/ISO is mounted upside-down on left doors in comparison to right doors.

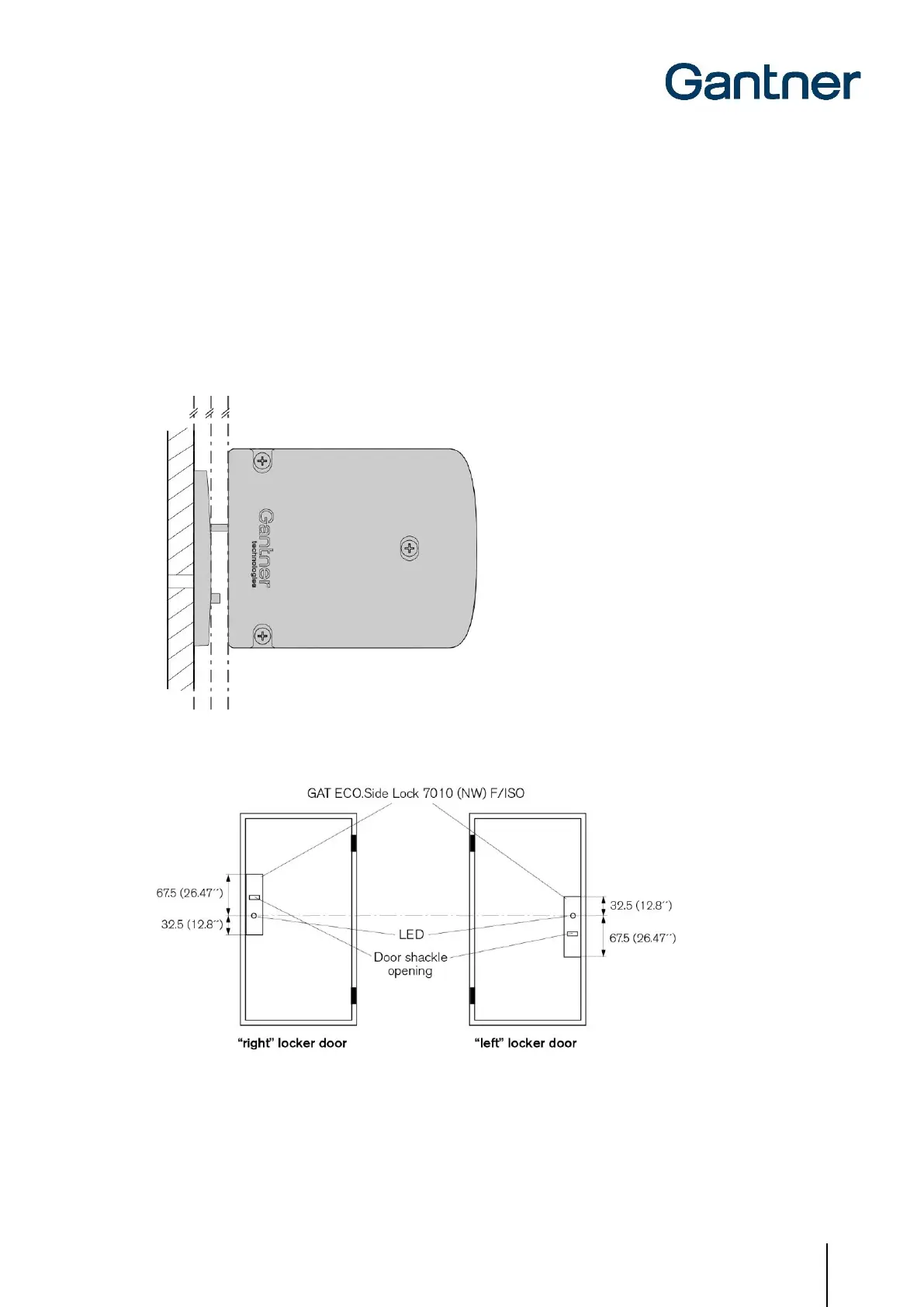

Figure 3.13 - LED positions of the GAT ECO.Side Lock 7010 F/ISO for right and left-hinged doors
NOTE! Before installing all locks in a new locker system, a test installation of one lock into a completed locker and
a function check must be performed. See section “3.3 Test Installation”.
