Gantner GAT ECO.Side Lock 7010 F/ISO User Manual

GAT ECO.Side Lock 7010 (NW) F/ISO
Installation
26 HB_GAT-ECOSide-Lock7010-FISO--EN_11 www.gantner.com
3.11.1 Cutouts in the Locker Door
The following cutouts must be made on the inner and outer walls of the locker door in order to mount the GAT
NET.Lock BoltSet 7200 and label carrier. The measurements for the cutouts are as follows.

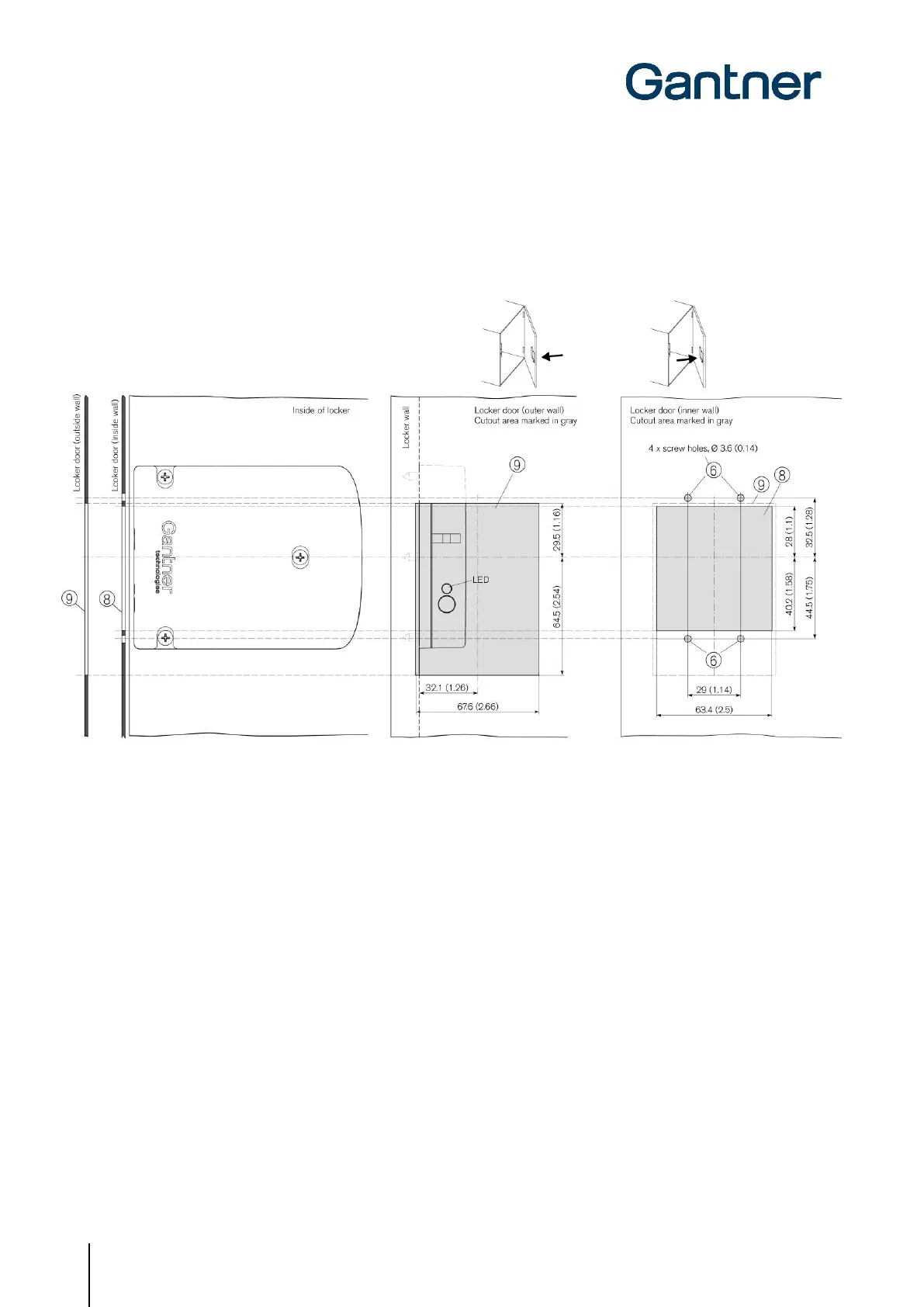

Figure 3.12 - Cutouts for metallic locker doors (dimensions in mm – inches shown in brackets)

Gantner GAT ECO.Side Lock 7010 F/ISO Specifications

General

Brand	Gantner
Model	GAT ECO.Side Lock 7010 F/ISO
Category	Locks
Language	English
