EXCAVATOR “A-TRACTION”
Use and maintenance instruction
Rev. 01/14 - ENG (original)
Via Leonardo da Vinci, 32/B
36034 Malo (VI) Italia
6
T E Z A

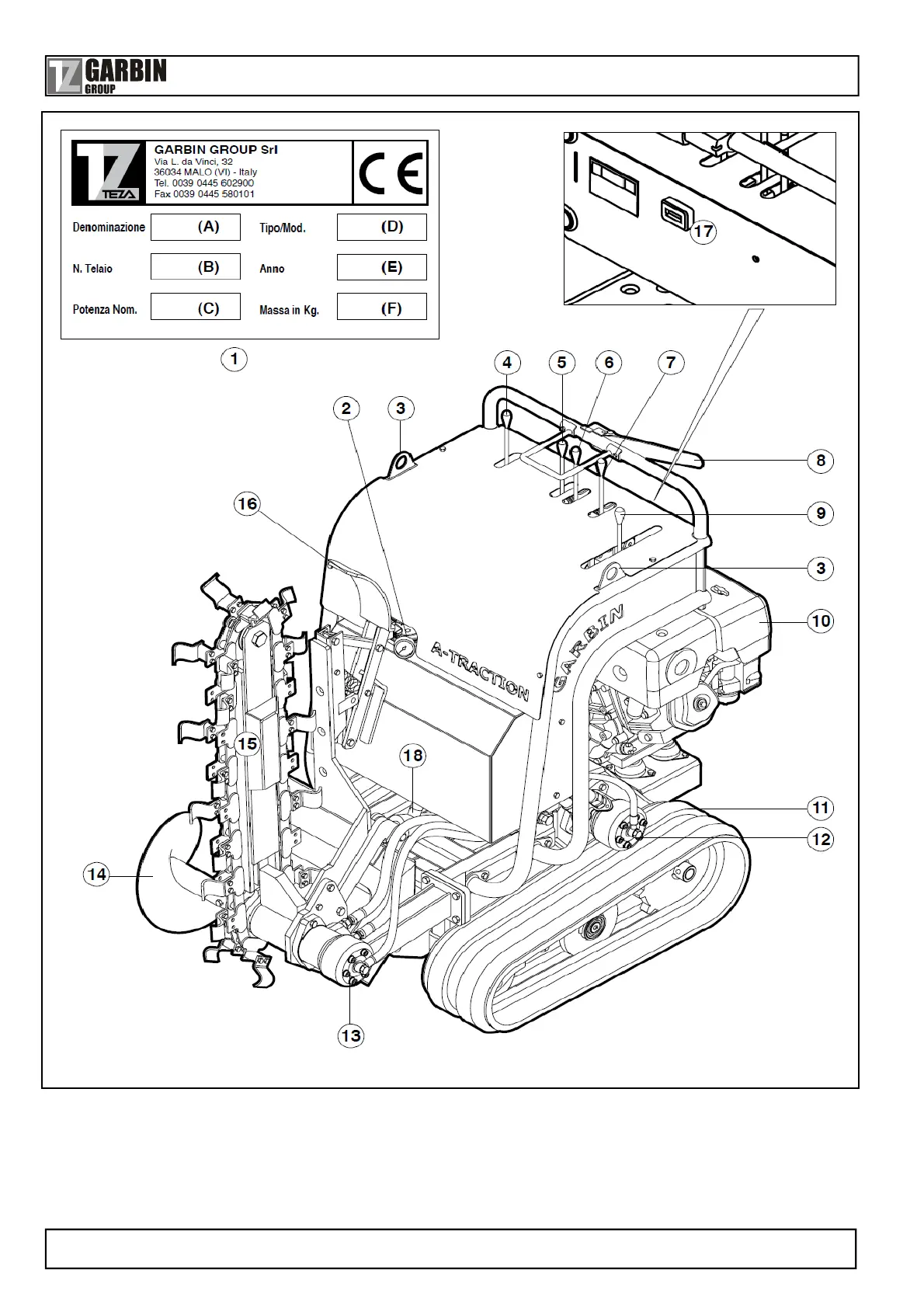

Fig. 1 - «A-Traction» Trencher and its main components
1) Identification plate. - 2) Hydraulic oil filter. - 3) Brackets for lifting. - 4) forward/reverse Chain lever .. - 5) Right
chain lever. - 6) Left chain lever. - 7) Lowering/raising chain lever. - 8) Forward chain lever (safety). - 9) Gear
chain lever slow/fast. - 10) Petrol engine. - 11) Rubber Crawler track - 12) Hydraulic motor controlling the Crawler
track (one left and one right)- 13) Hydraulic motor controlling the chains . - 14) Screw for moving material. - 15)
Chains. - 16) Chain guards and cleaners. - 17) Hour meter. - 18) Chain lifting piston.
