Gardena SILENO minimo User Manual

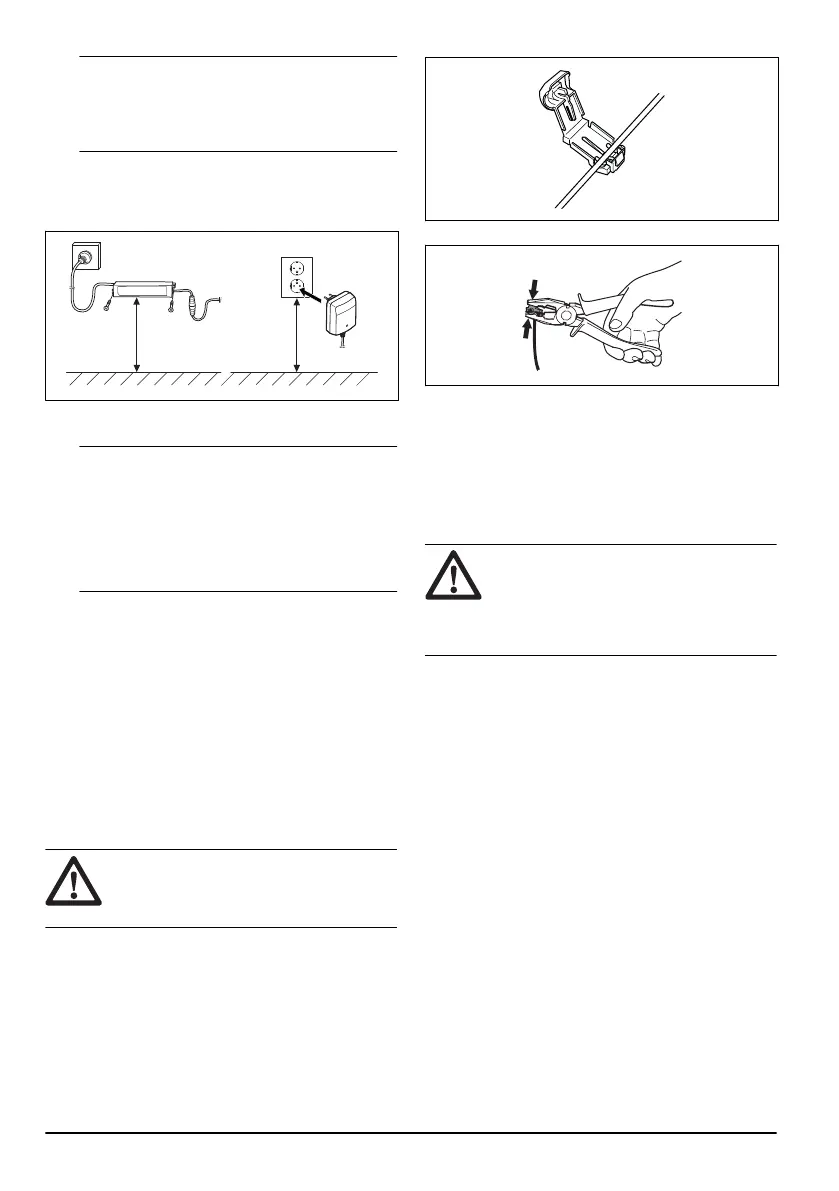

Note: Do not attach the charging station with the
screws to the ground until the guide wire is
installed. Refer to
To install the guide wire on page
18 .
3. Connect the low-voltage cable to the charging
station.
4. Put the power supply at a minimum height of 30
cm /
12 in.
min 30 cm / 12”
5. Connect the power supply cable to a 100-240V
power outlet.
Note: When the charging station is connected, it
is possible to charge the product. Put the product
in the charging station while the boundary and
guide wires are being laid. Switch on the product to
start charging the product. Refer to
The ON/OFF
button on page 23 . Do not continue with any
product settings before the installation is complete.
6. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
To put the wire into
position with stakes on page 19 or To bury the
boundary wire or the guide wire on page 19 .
7. Connect the wires to the charging station after the
installation of boundary wire and guide wire is
complete. Refer to
To install the boundary wire on
page 18 and To install the guide wire on page
18 .
8. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
Refer to
To install the guide wire on page 18 .
3.5.3 To install the boundary wire
CAUTION: Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work area.
Start and complete the installation behind the
charging station.
2.
Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "R".
6.
Push the left connector onto the metal pin on the
charging station with the mark "L".
3.5.4 To install the guide wire
CAUTION: Twinned cables, or a screw
terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.
1. Open the connector and put the wire in the
connector.
2.
Close the connector with a pair of pliers.
3.
Cut the guide wire
1-2 cm / 0.4-0.8 in. above each
connector.
4. Push the guide wire through the slot in the
charging station plate.
5. Push the connector onto the metal pin on the
charging station with the mark "G".
6. Disconnect the charging station from the power
outlet.
7. Put the end of the guide wire at the eyelet on the
boundary wire.
8. Cut the boundary wire with a pair of wire cutters.
9. Connect the guide wire to the boundary wire with a
coupler.
18 - Installation 1585 - 002 - 08.12.2020

Gardena SILENO minimo Specifications

General

Type	Robotic lawn mower
Noise level	57 dB
Cutting width	160 mm
Grass catcher	-
Product color	Black, Blue
Maximum lawn area	250 m²
Maximum cutting height	45 mm
Minimum cutting height	20 mm
International Protection (IP) code	IPX5
Power source	Battery
Charging time	1.25 h
Power consumption per month (max)	2.1 kWh

Weight and Dimensions

Depth	520 mm
Width	340 mm
Height	220 mm
Weight	6100 g
