Garmin G1000:Socata User Manual

190-00709-00 Rev. A
Garmin G1000 Pilot’s Guide for the Socata TBM 850
2-3
FLIGHT INSTRUMENTS
2
8
4
1
5
6
9
12
7
11
13
14
3
10
1
Traffic Annunciation
2
Vspeed Reference
3
Radar Height
4
Selected Heading
5
Wind Data
6
Inset Map
7
DME Information Window
8
Bearing Information Windows
9
Flight Plan Window
10
Minimum Descent Altitude/
Decision Height
11
Selected Course
12
Current Vertical Speed
13
Glidepath Indicator
14
AFCS Status Annunciation

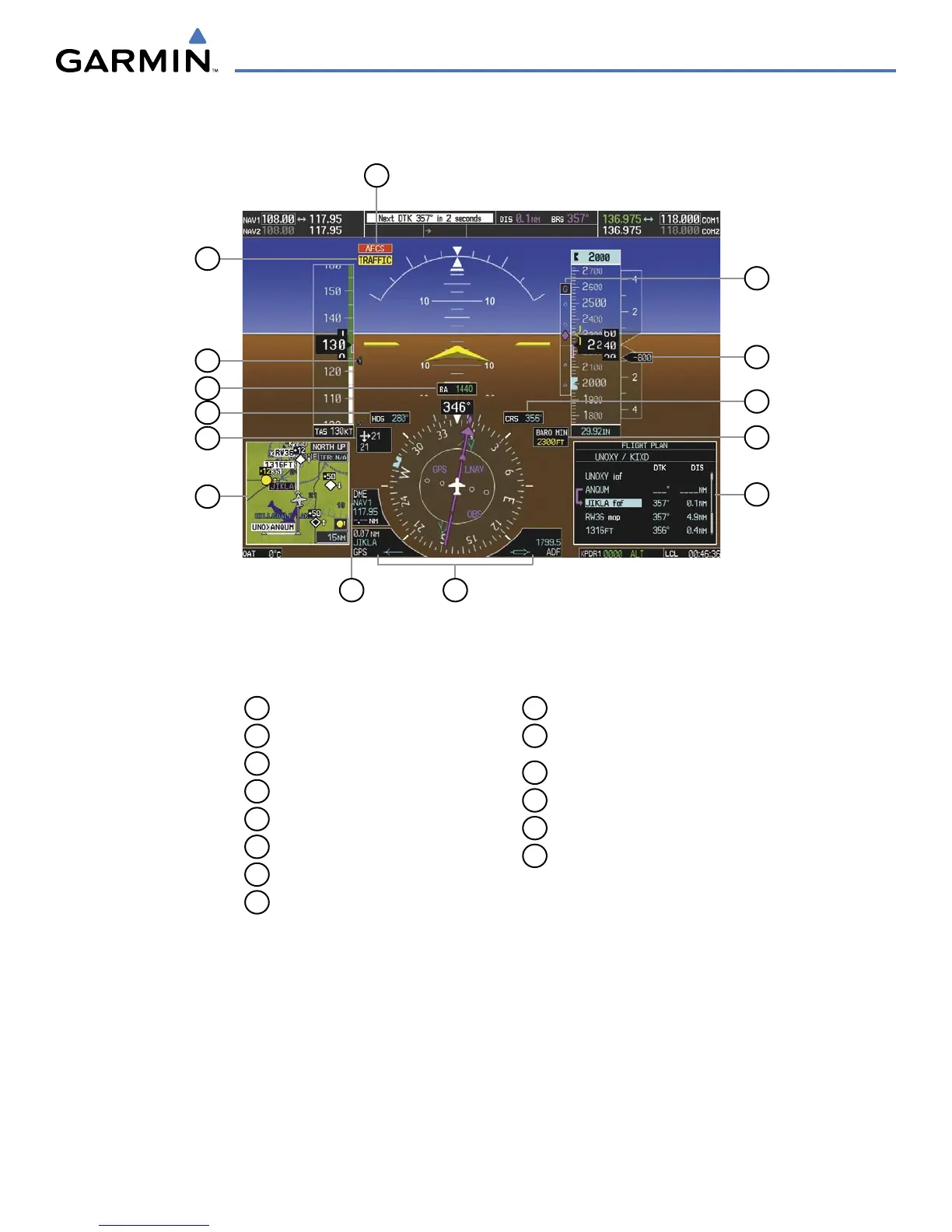

Figure 2-2 Primary Flight Display (Additional Information)

Garmin G1000:Socata Specifications

General

Display Type	LCD
Operating Temperature	-20°C to +55°C
Manufacturer	Garmin
Type	Integrated Avionics System
Resolution	1024 x 768 pixels
Display Units	Primary Flight Display (PFD) and Multi-Function Display (MFD)
Certification	FAA TSO certified
Interfaces	ARINC 429, RS-232
Screen Size	10.4 inches
