16

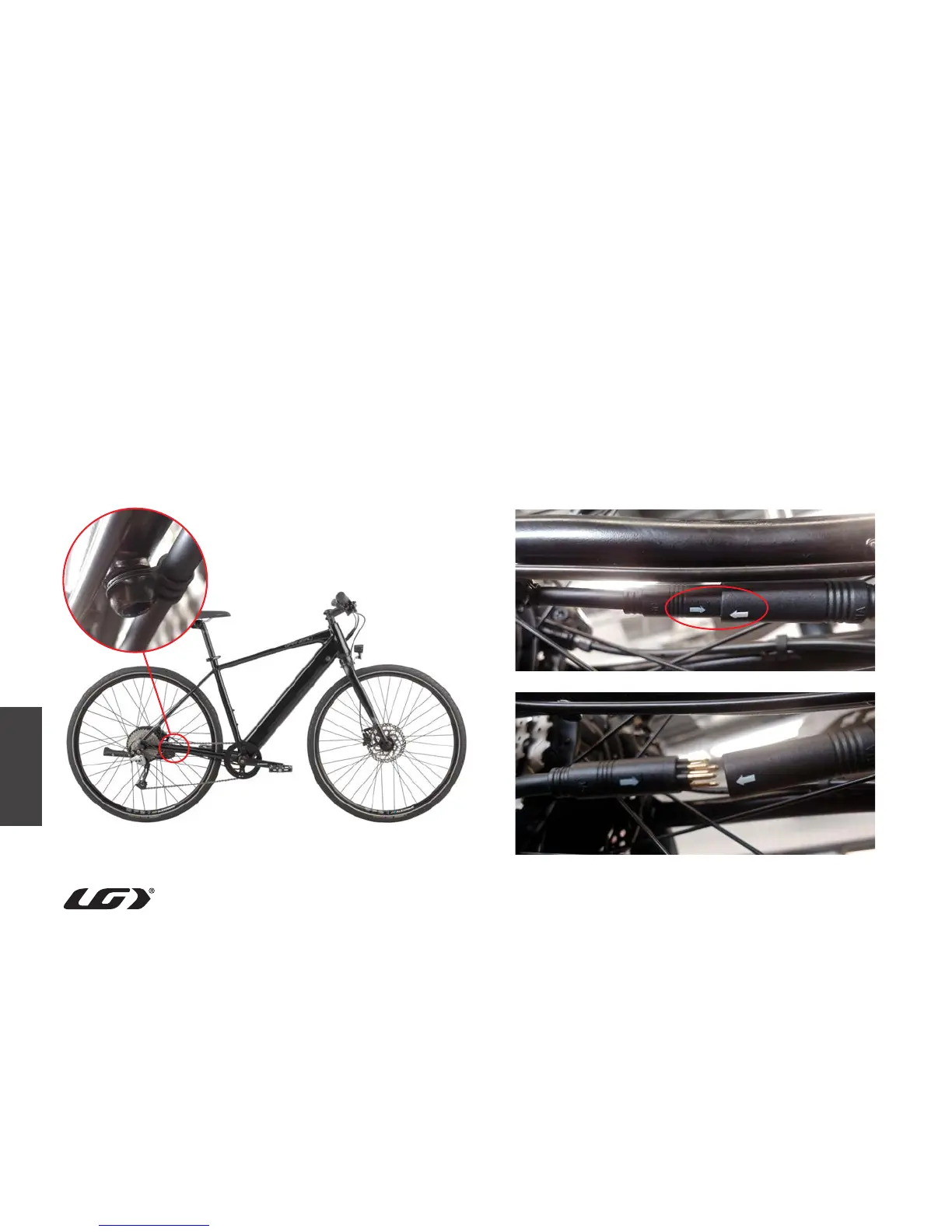

5.3 REAR WHEEL
To remove the rear wheel, you must first disconnect the wire that
powers the motor. The wire must be unsecured from the frame by
unscrewing the wire holder from the frame using a 5 mm Allen key.
Once the wire is free, pull the connector apart. The connector is located
on the bicycle drive side, under the frame next to the rear wheel.
