Connection group A1A
Connection group A1
Connection group A1A:2
100A
32A
50A
80A
CS 2
CS 3 CS 4
CS 1
Imax = Fuse size (in this case 50A)
Imonitored = Ics2 + Ics3 + Ics4
Imax = Fuse size (in this case 80A)
Imonitored = Measured current in fuse
by LI 2, through CT .
Imax = Fuse size (in this case 100A)
Imonitored = Measured current in fuse
by LI 1 through HAN
interface.
Incomming current/Main fuse
Note: Only CS loads in this circuit, no need for any LI or dedicated energymeter.
Smart Utility
energy meter (HAN)
LI 1
LI 2
CT 100A/333mV
16A
10A

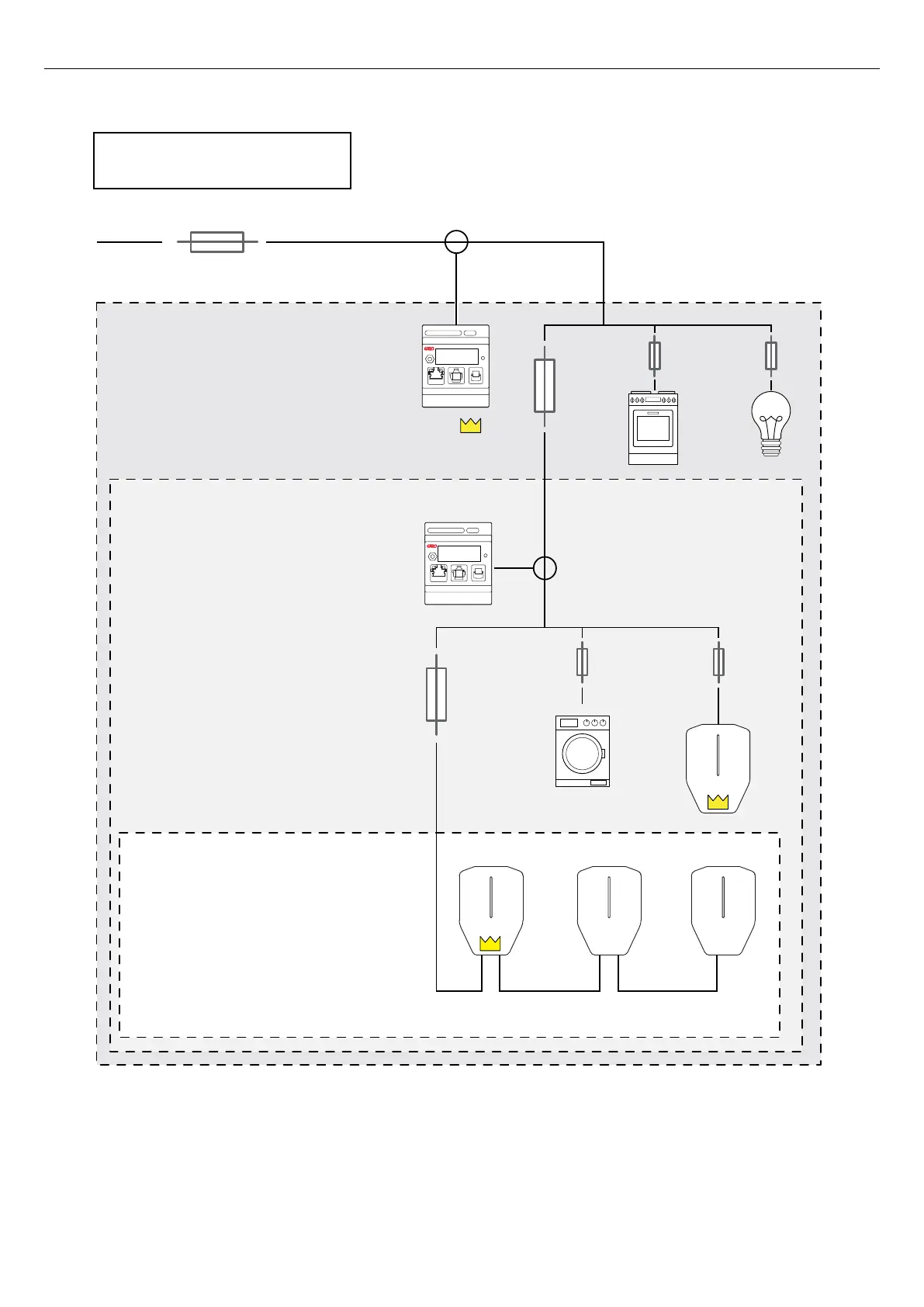

3-level Connection group (CG)
Power monitoring structure
66
Installation
