GARO ENTITY PRO - Page 67

ROUTER
INTERNET
Ethernet cable
4G SIM CARD
Wi-Fi
Mesh
Ethernet cable
Ethernet cable
WWW
3-level Connection group (CG)

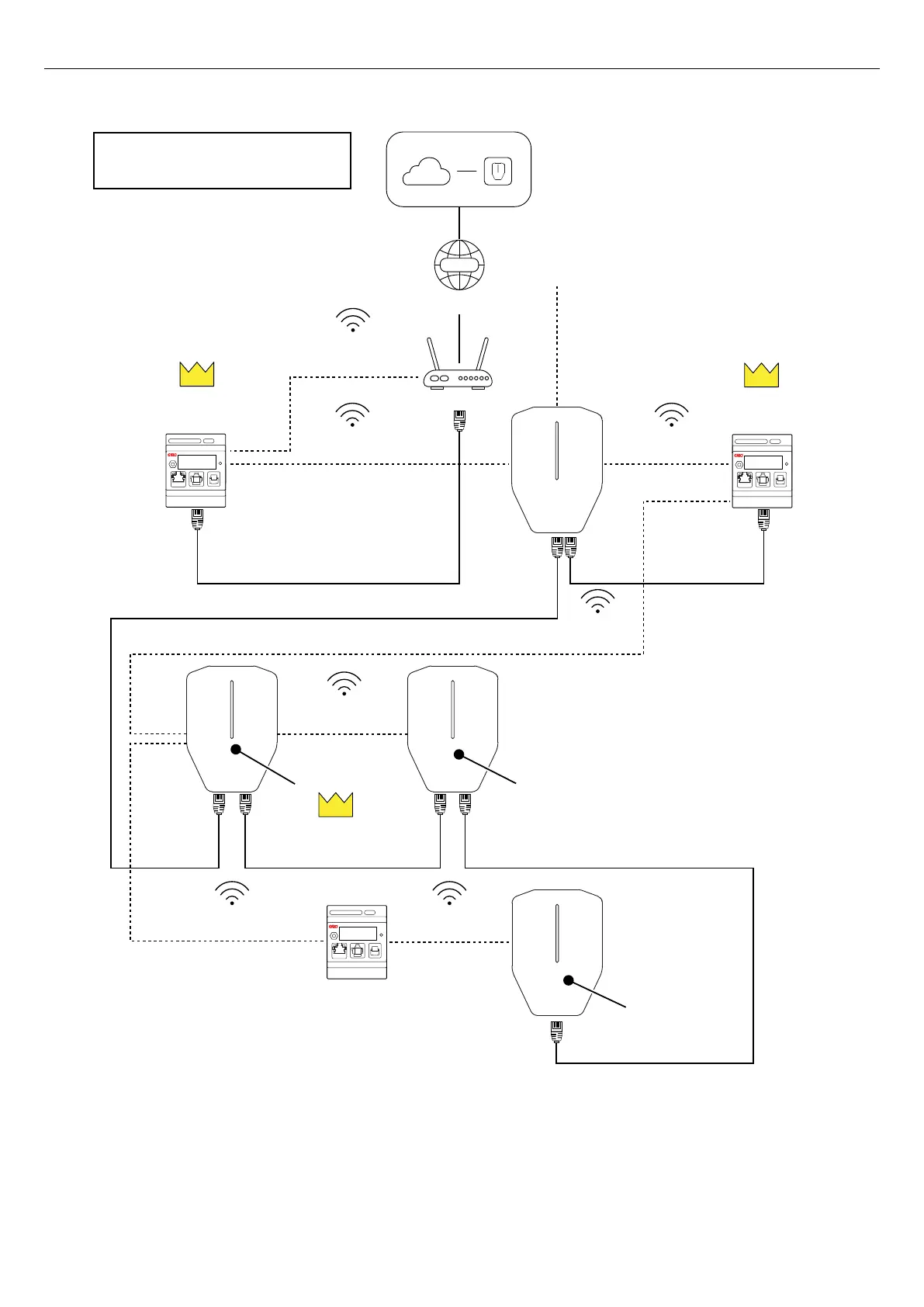

Communication structure
Wi-Fi
Mesh
CS1
LI 2
MASTER (CG A1A)
(CG A1)
MASTER CG A1
LI 1
LOCAL
Wi-Fi
CS2
MASTER
CG A1A:F1
CS3
CS4
Mesh Station
(Li acting as range extender)
Wi-Fi
Mesh
Wi-Fi
Mesh
Wi-Fi
Mesh
Wi-Fi
Mesh
LI 3
GARO Connect
APP
CLOUD
67
Installation
