Garrett CSI 250 - Assembly

3. Insert the Threaded Bolt through the holes of
the Lower Stem and Searchcoil. Hand-tighten the
searchcoil assembly with the remaining Wing Nut.
Figure 1-3.
4. Depress the Spring Clip and insert the Control
Housing into the Upper Stem. Figure 1-4.
7
CSI 250
ASSEMBLY
1. Press the two Mounting Washers into the Lower
Stem. Figure 1-1.
2. Slide the Searchcoil onto the Stem. Figure 1-2.
6
Garrett Metal Detectors

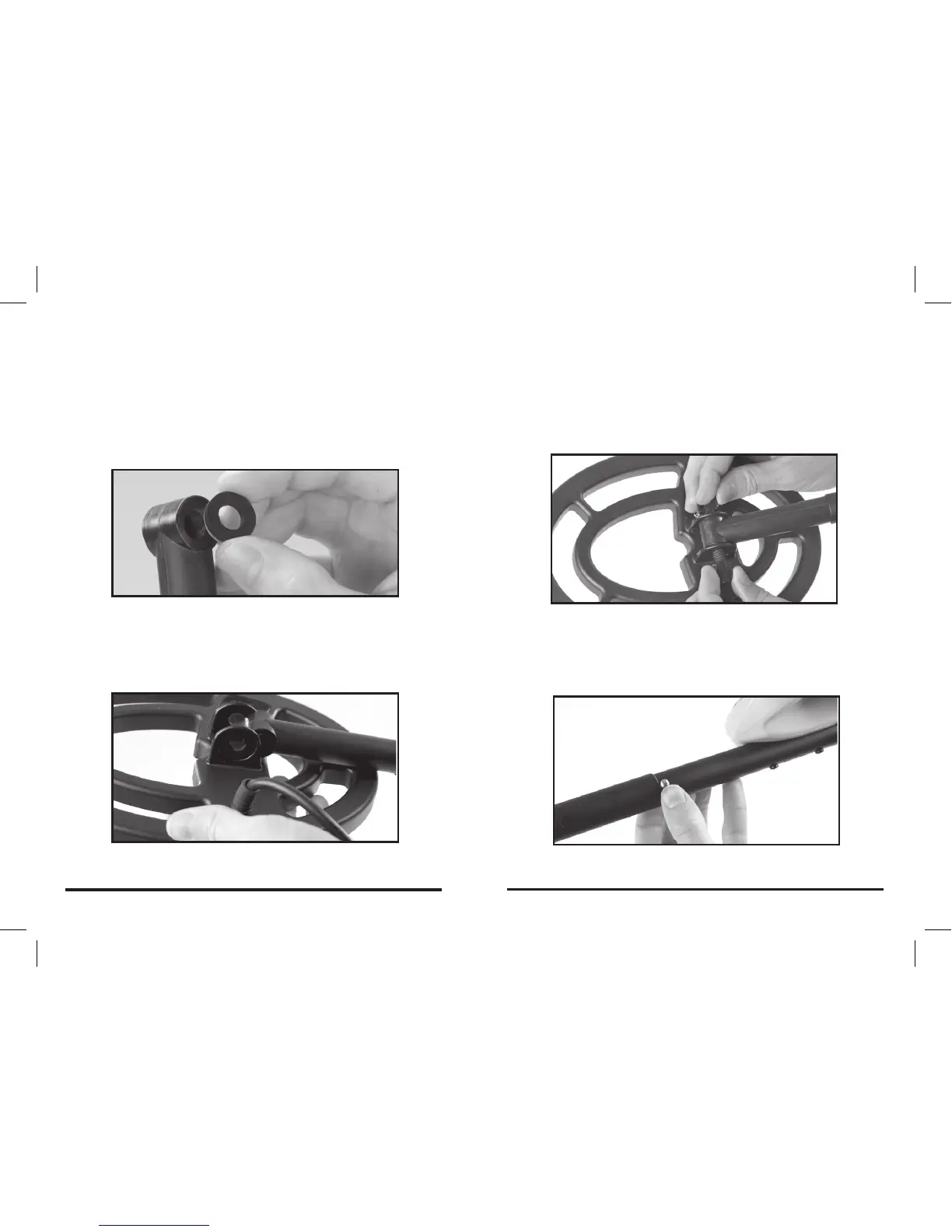

Figure 1-3
Figure 1-4
Figure 1-1
Figure 1-2
