EC / MC / SM 2005 -
103
-

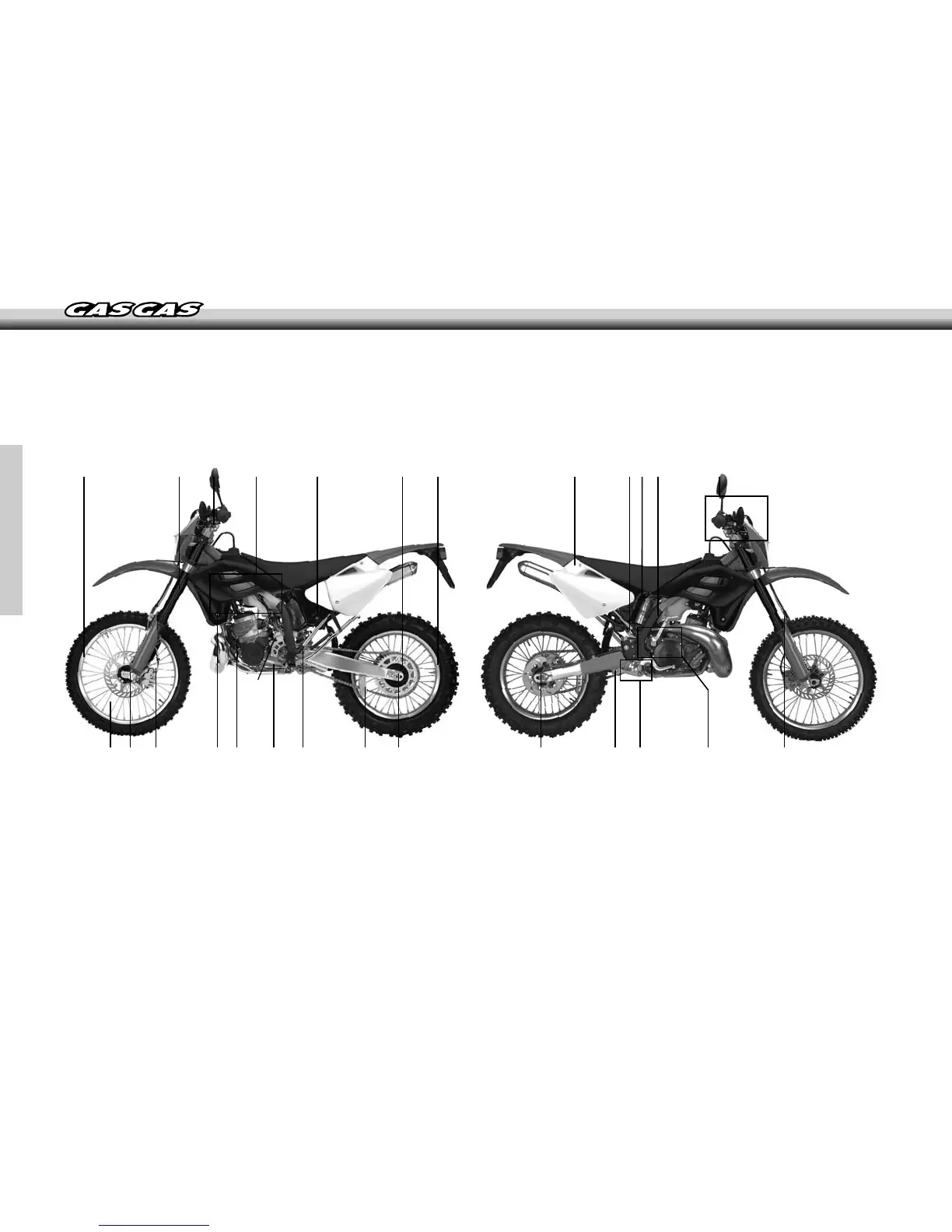

BOLTS AND NUTS TIGHTENING
Every day before riding, check the tighteness of the bolts and nuts described here. Also check that all other fasteners are in place and in good
condition.
1- Front and rear wheel.
2- Front fork.
3- Handlebar.
4- Clutch lever holder screw.
5- Cylinder head bolt.
6- Spark plug.
7- Cylinder nuts.
8- Air cleaner box holder bolts.
9- Trailing plate bolts.
19- Seat mounting bolts.
20- Subframe bolts.
21- Rear shock absorber bolts.
22- Exhaust mounting bolts.
23- Suspension top bridge bolts.
24- Steering stem nut.
25- Brake lever bracket screw.
26- Rear axle nut.
27- Linkage mounting bolt.
10- Spokes.
11- Front axle bolt.
12- Brake hose screw.
13- Radiator bracket bolts.
14- Engine holder bolts and nuts.
15- Gearshift pedal bolt.
16- Subframe bracket bolt.
17- Chain guide bolts.
18- Chain adjuster nut.
28- Rear brake pedal bolt.
29- Torque rod mounting bolt.
30- Swingarm shaft nut.
31- Kick-start pedal bolt.
32- Kick-start pedal nut.
33- Front brake hose fastening screw.
1 1
2
3,4
10
9
11 12 1613 14 15 17 18 26
19 21 22 23,24,25
27
20
28,29 30,31,32
5,6,7
33
8
