USER GUIDE – MC3001
2.3. – WORKING PRINCIPLE:
This machine is comprised of 3 main systems: the hydraulic circuit, the crimping head with numerical
set stop for crimp adjustment, and the electrical system.
2.3.1. – HYDRAULIC SYSTEM:
This supplies the energy necessary to move the dies.
Composition:
The hydraulic circuit is comprised of (see figures 1 and 2)
- a drilled block (1)
- a pressure limiter (2)
- a pilot valve (3)
- a control valve (4)
- a motor (5)
- a pump (6)
- a suction filter (7)
- an oil tank (8)

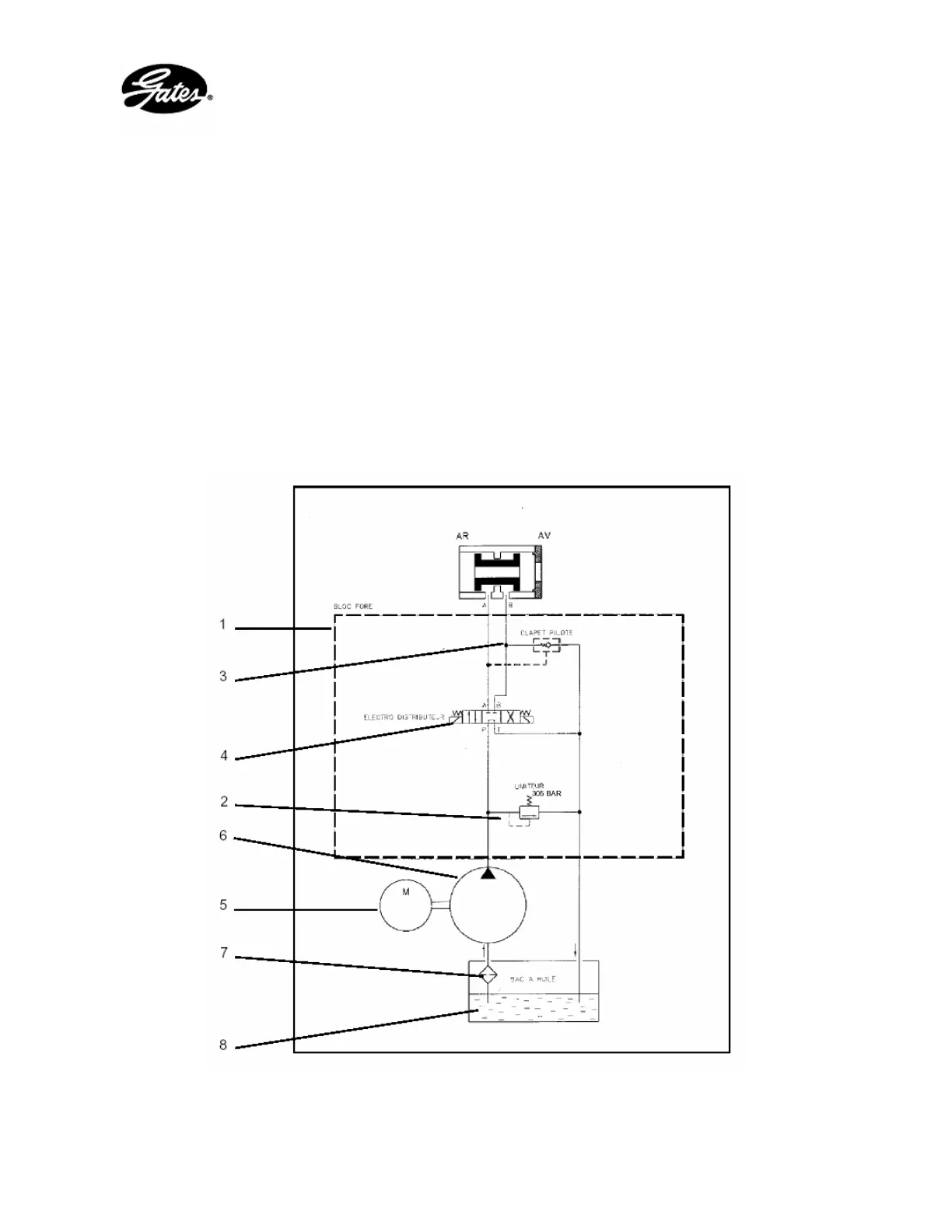

Figure 1 : Hydraulic circuit diagram
5
