Gates PC 707 - Schematic and Replacement Parts List

12
23
1
2
3
4
6
7
10
11
12
13
14
15
16
15
17
18
19
20
31
21
22
5
28
30
29
27
26
25
24

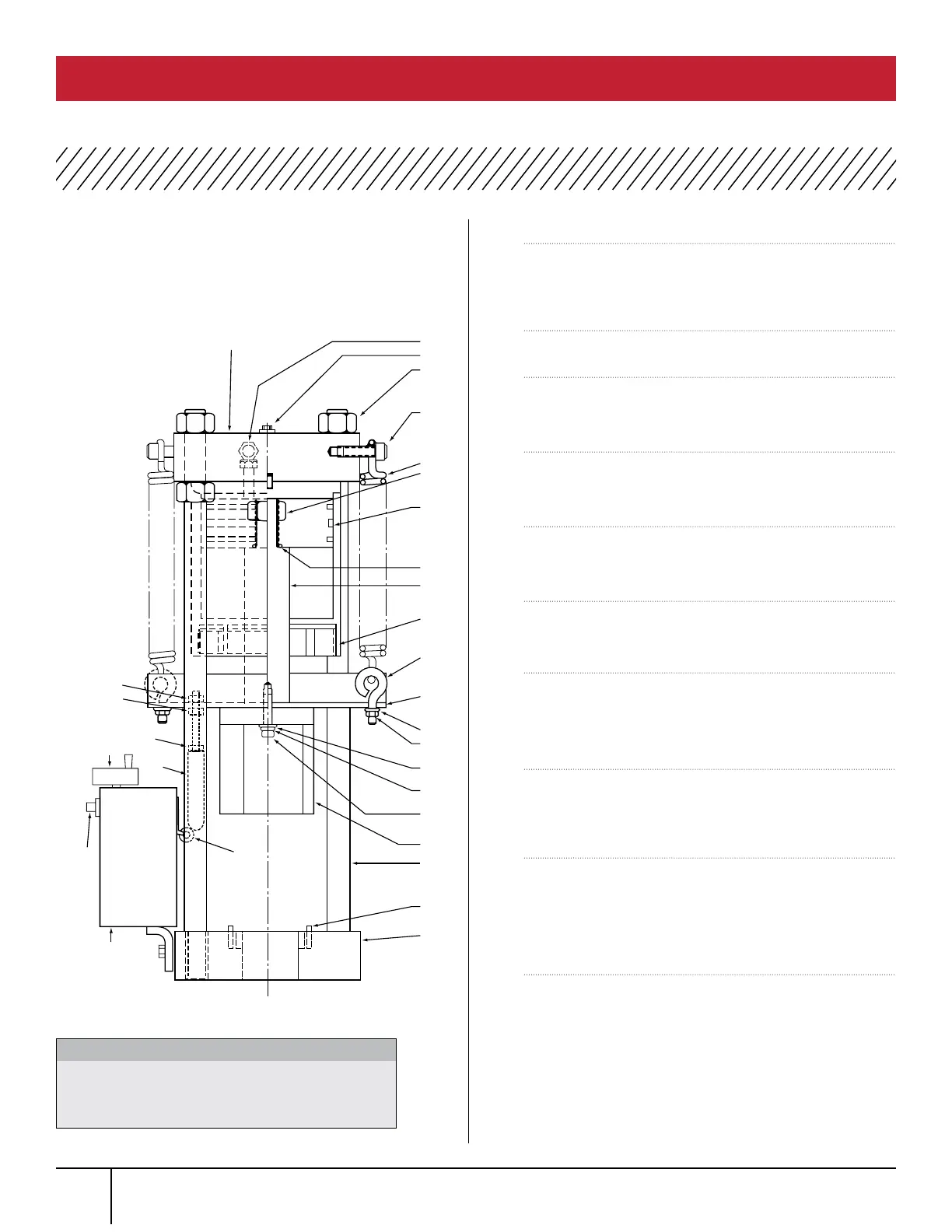

Crimper Schematic for Serial #B14,000
and above, all serial numbers starting with
RU, and newer refurbished units.*
KEY PROD. PART
NO. NO. NO. DESCRIPTION QTY.
1 7253-0029 86967 8MB-8FPX Adapter 1
*2
—————- ——— Screw 3/8-16 x Hex HD 1
3 7482-0243 78737 Nut 1-8 Standard Hex (Special-
Grade 8) 8
*4 ————— ——— Screw 1/2-13 x 1-1/4 S.H.C.S. 2
5 7482-6959 78751 Return Spring 2
*6 ————— ——— Nut 1-14 w/Nylon Insert 1
7 7482-0105 78718 Piston Seal Kit Assembly 1
10 7482-0147 78732 “O” Ring 1-1/8 O.D. x 1 I.D. (Nitrile) 1
11 7482-0106 78719 Piston Rod 1
12 7482-0109 78722 Piston Rod Guide 1
13 7482-0118 78729 Spring Anchor 2
14 7482-0107 78720 Return Spring Anchor Channel 1
*15 ————— ——— Washer 3/8 Plain 3
*16 ————— ——— Nut 3/8-16 Hex 2
*17 ————— ——— Lockwasher 3/8 1
*18 ————— ——— Screw 3/8-16 x 2-1/4 S.H.C.S. 1
19 7482-0112 78725 Pusher Cup 1
20 7482-0111 78724 Tie Rod 4
*21 ————— ——— Roll Pin 1/4 x 1 4
22 7482-0110 78723 Base Plate (Machine) 1
** 7482-0119 78730 Mounting Bracket 1
23 7482-0116 78728 Cylinder and Top Plate 1
24 7482-0229 78734 Microswitch Actuator Rod 1
*25 ————— ——— Top Actuator Nut (1/2-13) 1
*26 ————— ——— Bottom Actuator Nut (1/2-13) 1
*27 ————— ——— Actuator Locking Nut (1/2-20,
new style, only) 1
** 7482-0115 78727 Backup Ring, Large 1
** 7482-0789 78478 Die Cage (includes eight
1/4 x 3/8 socket head shoulder 2
screws with 10-24 thread) halves
** 7482-0919 78758 Washers for Die Fingers 1
** 7482-0297 78747 Die Cone, No Notch 1
** 7482-0239 78737 Die Cone, Notched (optional) 0
** 7482-3011 78755 Molykote “G” Grease (3 oz. jar) 1
** 7253-86876 86876 8MB-8FPX90 Adapter 1
** 7482-0289 78745 Hose Assembly PC 707 1
** 7482-0283 78742 Shroud only 1
** 7482-0280 78740 Readout Meter 1
** 7482-0291 78746 Die Finger Removal Tool (Magnet) 1
** 7482-1672 78749 Shoulder Screws for Die Fingers 8
SWITCH BOX
28 7482-0277 78739 Switch Box - Complete
with Wiring Harness 1
29 7482-0231 78735 Knob, Switch Box 1
30 7482-0054 78717 Crimp Switch 1
31 7482-0442 78252 Microswitch
** 7482-0747 78754 Wiring Harness, Switch Box
to Shroud for 115 Volt only 1
** 7482-0498 78748 Wiring Harness, Switch Box
to Shroud to convert
from 115 to 230 Volt 1
** 35019-FP ——— Face Plate 1
* These items can be purchased at most hardware stores-not stocked at
Gates.
** Not shown on diagram.
Newer refurbished units have a serial
number with a -7R suffix.
*NOTE:
PC 707 SCHEMATIC AND PARTS LIST
PC 707 CRIMPER SAFETY AND OPERATING MANUAL
1
