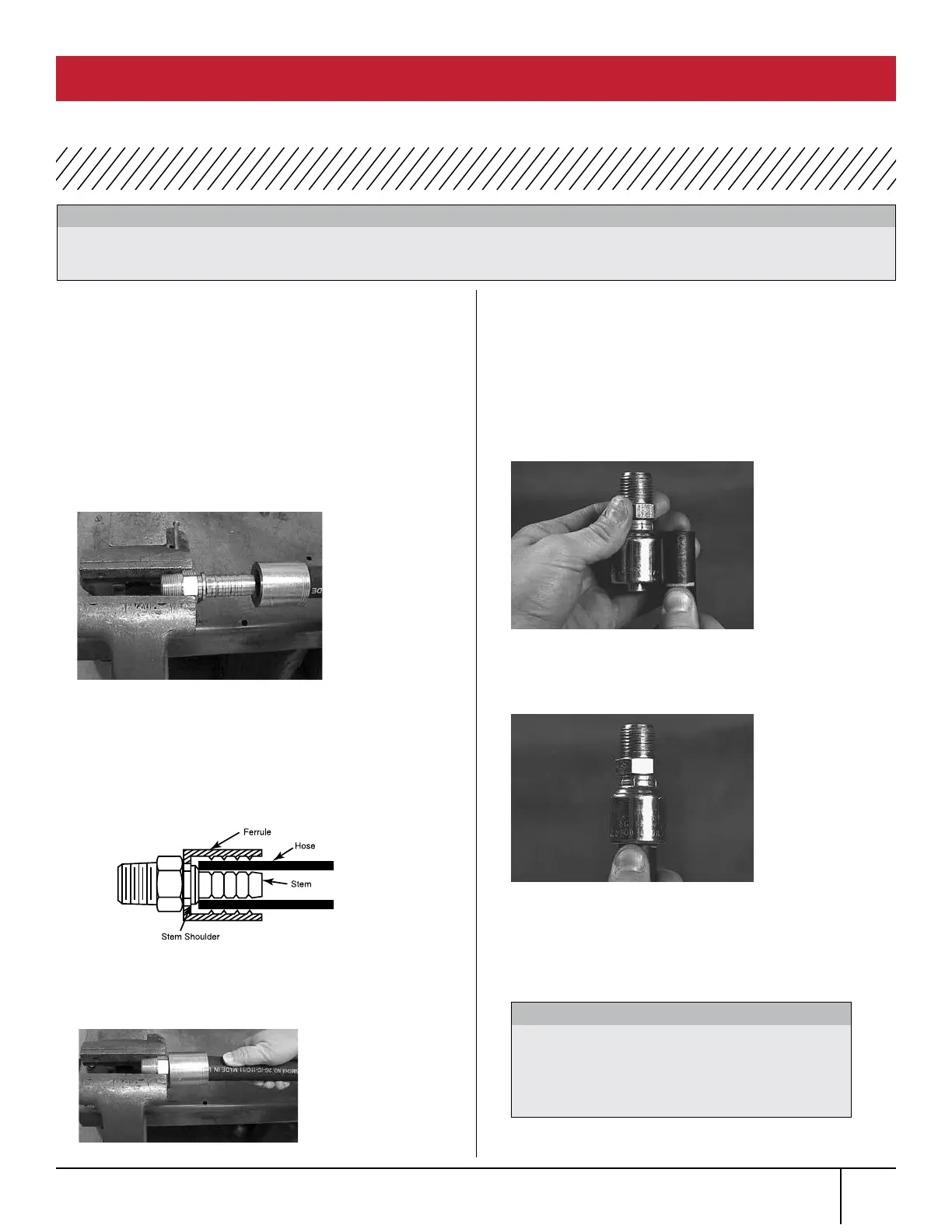

Gates PC 707 - Hose Preparation

5
TWO-PIECE COUPLINGS
Cut hose to desired length.
Log onto www.gates.com/ecrimp for the latest crimp
information on-line. Or, use Gates Crimp Data Manual
#35019 (Ind.), 428-7365 (Auto.), select the correct stem
and ferrule.
Place ferrule over end of hose. If skiving is required,
see instructions in Gates Hand Skiver Manual,
#35019-W.
Lubricate the first 2 or 3 serrations on stem with
lightweight oil (SAE 10W).
Clamp stem in vise on hex portion, and push hose
onto stem. Hose should be flush against stem
shoulder (see cutaway drawing).
Push ferrule so it rests against hex of stem. Hose and
coupling are now ready for crimping.
MEGACRIMP
®
PRE-ASSEMBLED COUPLINGS
Cut hose to desired length.
Log onto www.gates.com/ecrimp for the latest
crimp information on-line. Or, use Gates Crimp Data
Manual #35019 (Ind.), 428-7365 (Auto.), select the
correct MegaCrimp coupling.
Place a visible mark on hose cover at the inser-
tion length shown in the crimp data manual or use
MegaCrimp Insertion Tool (7482-1342).
Insert coupling into the hose until the mark lines
up with the end of the coupling ferrule.
Hose and coupling are now ready for crimping.
A new hose and end fittings (stem/ferrule) must be used when building a hose assembly. Re-using any component will
seriously affect performance and could result in serious injury or property damage.
CAUTION:
Log onto www.gates.com/ecrimp for more
details. Or, see Hose Assembly Guide of the
Gates Crimp Data Manual, #35019 (Ind.)
and 428-7365 (Auto.).
NOTE:
HOSE PREPARATION
PC 707 CRIMPER SAFETY AND OPERATING MANUAL
1.
2.
3.
4.
5.
4.
5.
6.
1.
2.
3.
