6

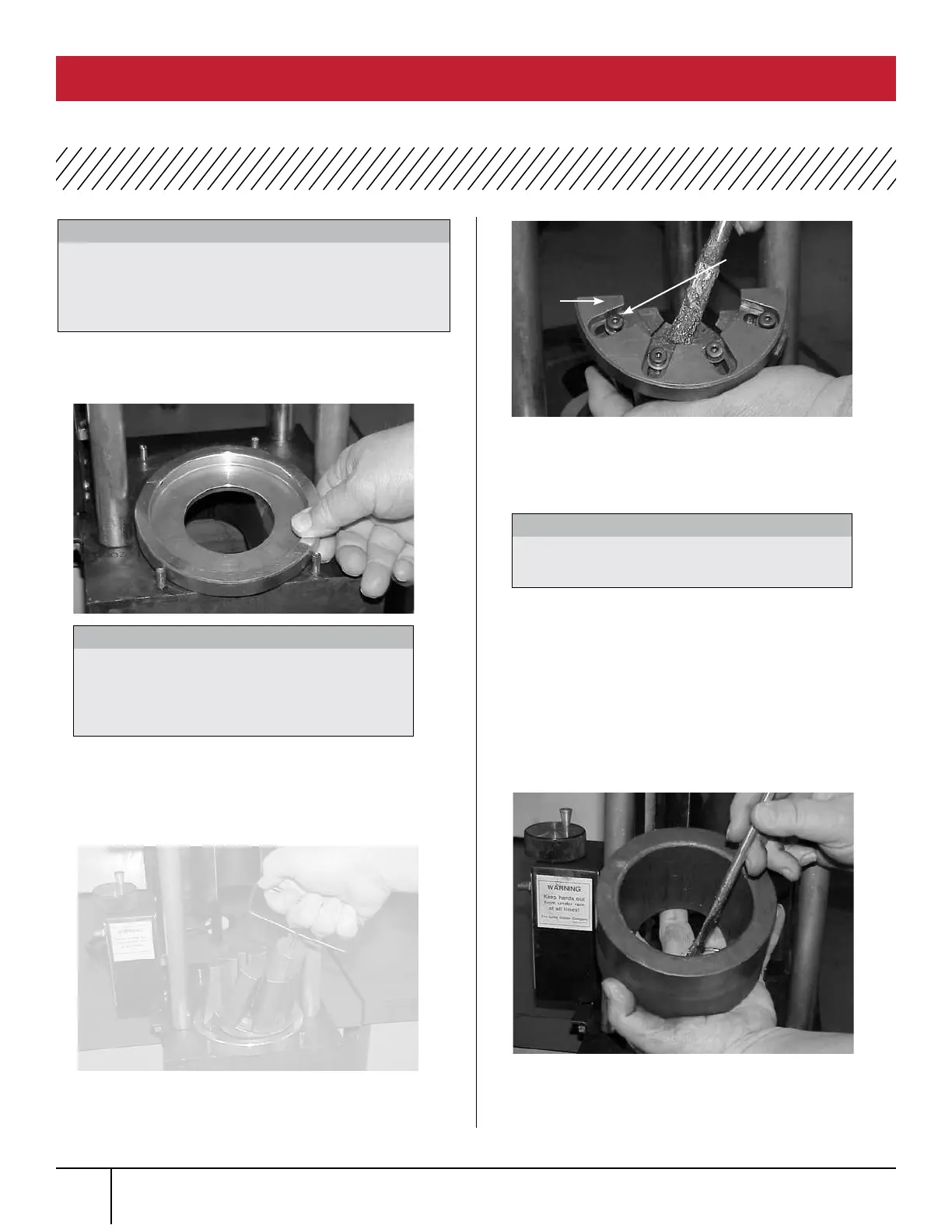

Place die back up ring on front of crimper base
plate. This back up ring is used with all die sets.
Log onto www.gates.com/ecrimp, or select proper
die set for hose and coupling by referring to the
Gates Crimp manual, #35019 (Ind.) and
428-7365 (Auto.).
Using die magnet supplied with crimper, insert
proper die set, one half at a time, onto die
backup ring.
Periodically check bottom of die cage and top
surface of die back up ring for cleanliness.
Check screws holding fingers to cage to make sure
they are tight. Tighten if necessary. This could affect
crimp if loose.
Apply a thin layer of Molykote “G” grease to inside
working area of die cone. The layer of grease must
be redistributed periodically when the area becomes
shiny from rubbing on the die fingers.
Not recommended for use below 40°F. Pump
damage may occur. If operation is required below
40°F, pump oil reservoir must be heated.
CAUTION:
Die cage may break if surfaces are not
kept clean.
WARNING:
Use No-Notch Die Cone when crimping with
720, 737, and 739 Die sets. Using the
optional notched cone may cause damage
to die cone.
NOTE:
Die
Cage
Screws for
Die Fingers
(7482-1672
or 78749)
OPERATING INSTRUCTIONS
PC 707 CRIMPER SAFETY AND OPERATING MANUAL
1.
2.
3.
4.
5.
6.
