Instructions for SW200DC
www.gatexpertstore.com
10

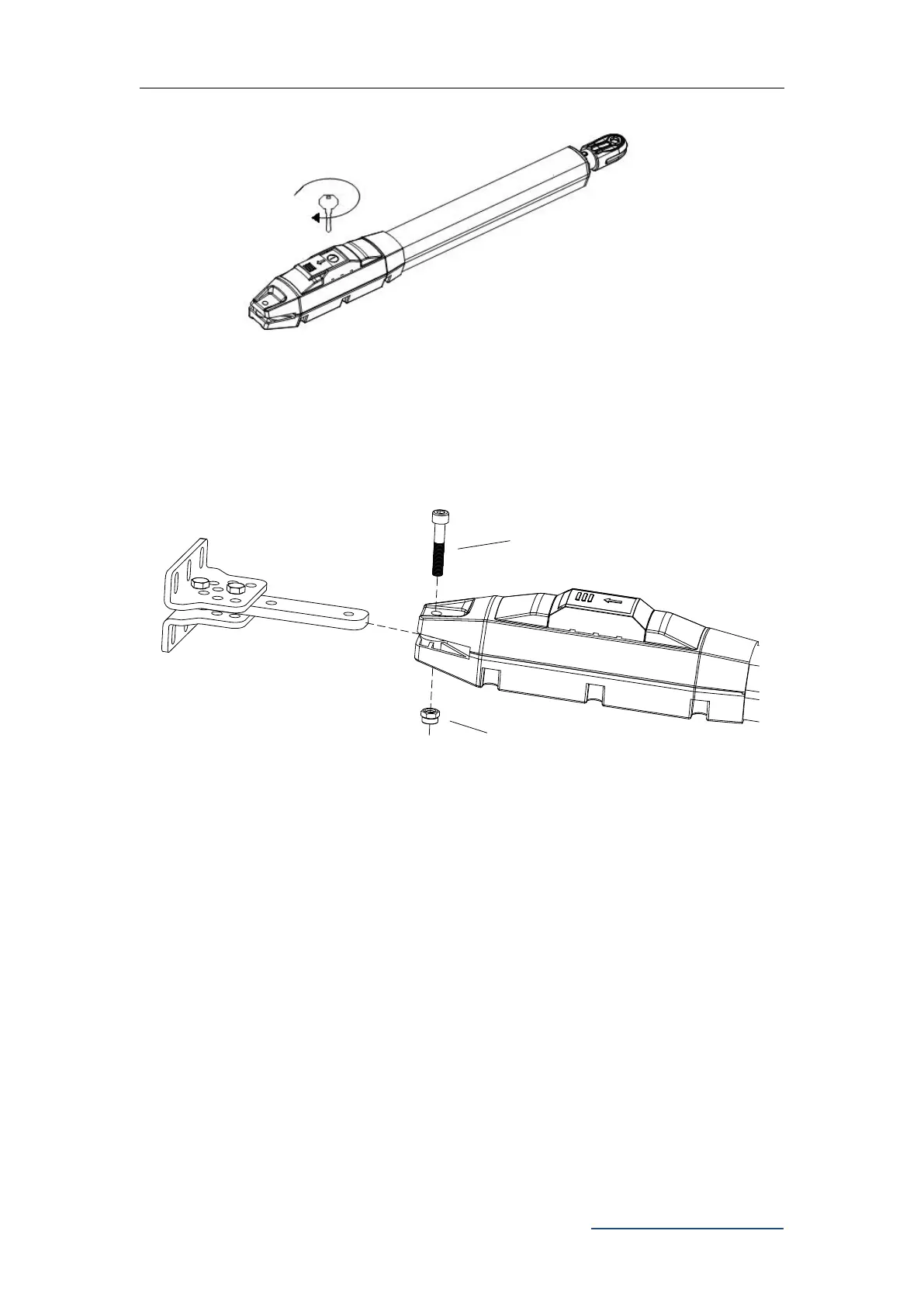

Figure 7
D) Connect the main machine with connecting brackets by screw and nut as shown in
Figure 8.
M8×45内六角螺钉
M8自锁螺母
Figure 8
E) As shown in figure 9 below, connect wall bracket with wall according to marked
position. Then, connect main machine with wall bracket by screw and nut. (Please
use spirit level to make sure the installation levelness.)
Screw M8x45
Self-locking nut
