2.0 PRODUCT INFORMATION
2.1 General Specifications
Bill Insertion: Up to 32 bill denominations with 4 way insertion
Bill Dimensions: 61 to 85mm wide; up to 170 mm long
Bill Acceptance Rate: Typically greater than 98%
Cycle Time for Validation: Approximately 2 seconds
Interface Protocols Supported: Pulse, Parallel, cctalk
®
(plain & encrypted), bi-direction
serial (“RS232”), NAMA MDB, SSP
Power Supply: 12Vdc +/-10% (Note: Tip positive for the DC power
supply jack)
Power Consumption (Validating): 800mA @ 12V
(Idle): 200mA @ 12V
Environmental Range (Operating Temp): 0° to 60°C
(Operating Hum): Up to 95% R.H., non-condensing
(Storage Temp): -10° to 65°C

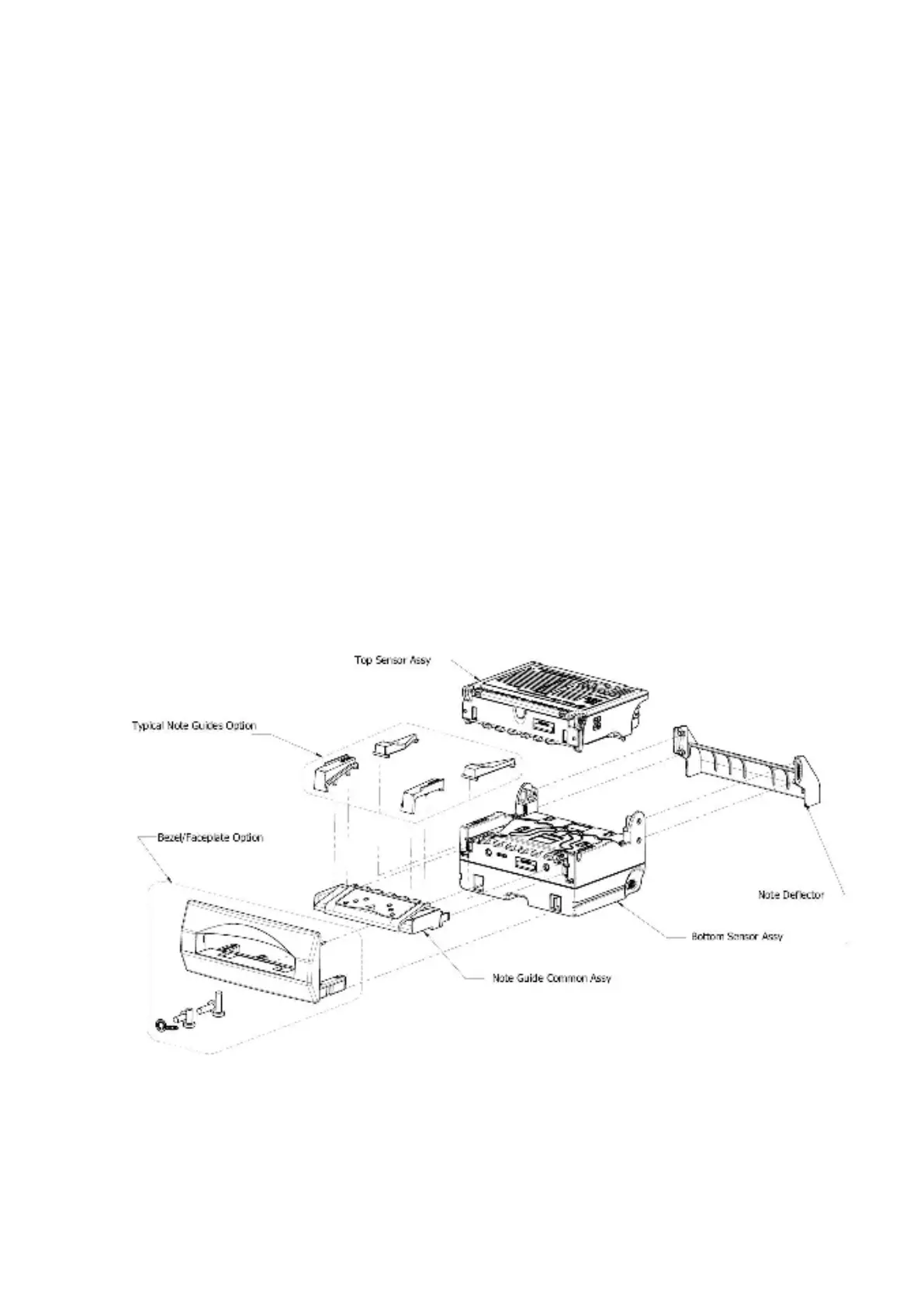

2.2 Product Assembly
