5.0 SOFTWARE CONFIGURATION

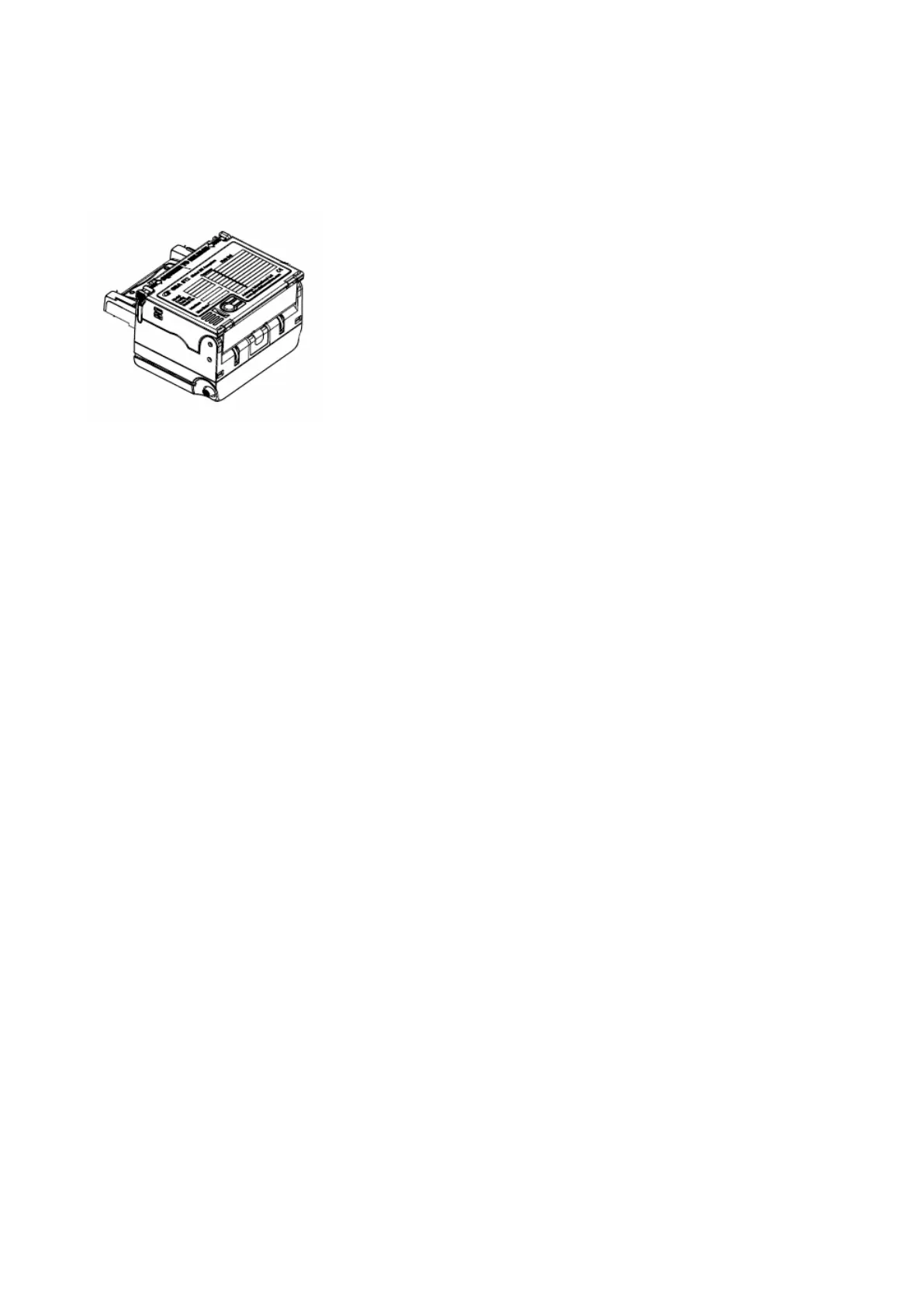

5.0 - Image illustrating top of ST2
The GBA ST2 can be configured using either the on-board push button, USB memory stick, or via
a Windows based PC package – GBA Tools.
5.1 ON-BOARD PUSH BUTTON
The on-board push button is located on purple lid of the unit, next to the diagnostics LED. This
push button will allow access to on-board programming modes including note enable, note disable
and Primary Calibration / Configuration. A single long press of more than 2 seconds will cancel the
programming mode. In the note enable and disable modes a sample note must then be presented
for scanning. If the operation is successful the validator will return to normal operation mode. If it
is unsuccessful, it will remain in the program mode. If the push button is held for more than 5
seconds an error is reported (LED solid red).
5.1.1 Configuration Procedure – Enable Note
Procedure:
1. Push button x 1, the diagnostic LED will flash green rapidly.
2. Insert the specific denomination required to be enabled.
3. The GBA ST2 will take the note in and then return it.
4. Enable complete. The diagnostic LED will return to solid green.
5.1.2 Configuration Procedure – Disable Note
Procedure:
1. Push button x 2, the diagnostic LED will flash red rapidly.
2. Insert the specific denomination required to be disabled.
3. The GBA ST2 will take the note in and then return it.
4. Disable complete. The diagnostic LED will return to solid green.
