Puma III User Manual
CorelDRAW Plug-In A-3
Contour cutting through CorelDraw
Step 1 Position the paper with registration marks printed by your printer on the GCC cutter.
Step 2 Select “FilesPrint”.
Note: if you use CorelDraw X5 and later, you must follow the steps below.
Step 1 Click the “color” page and go to the “Color conversions performed by:” and then select
the model name of you cutter (please refer to Figure A3-14).

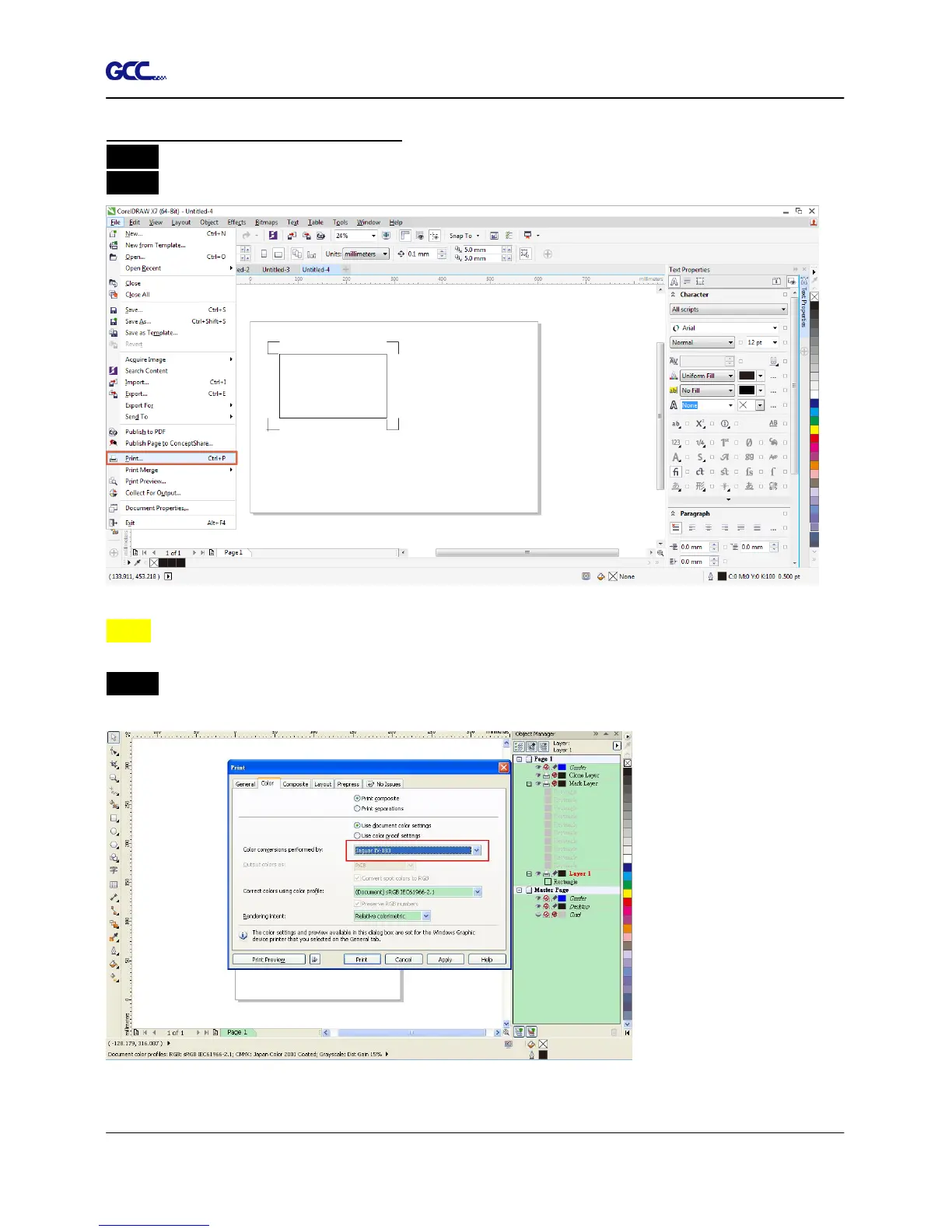

Figure A3-13
Figure A3-14
