GDS VCI - System Operation and Installation; Power and Switch Operations

User’s Manual
11
Power On/off Method and Switch
Operation
Hardware
Module: A–01-003 (p.01)
To turn on the VCI module, first connect the main DLC cable from the VCI module to the vehicle DLC
connector and press the main power switch.
If the vehicle DLC is not configured to provide power to the VCI, the cigar power cable must be used.
If needed, the cigar power cable can be connected directly to the vehicle battery by using the battery
extension cable.

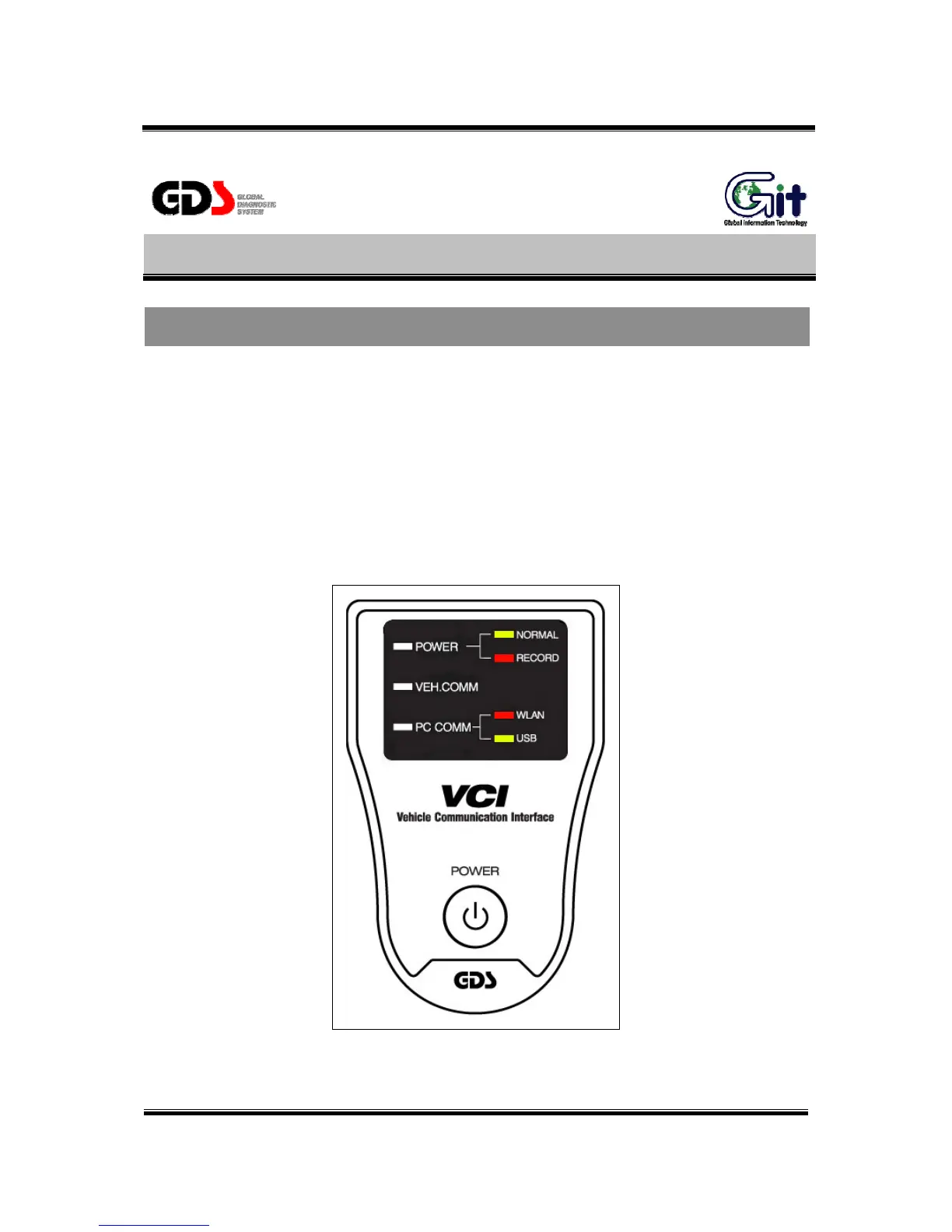

Figure 1. Main switch of VCI module
Turn on the VCI Module
