User’s Manual
19
Installation of Trigger Module
and Cigar Power Cable
Hardware
Module: A–01-005 (p.01)
The Trigger module has two purposes.
When the ignition key is turned to the IG ON position, the trigger module commands the VCI to turn
ON. At that time, the VCI (if configured for flight recording) is ready to store ECU data.
When the ENTER button on the trigger module is pressed, the VCI will start recording vehicle ECU
data.
Cigar jack from the trigger module cable and round connector with 6pins are connected to the vehicle
and the VCI module respectively.

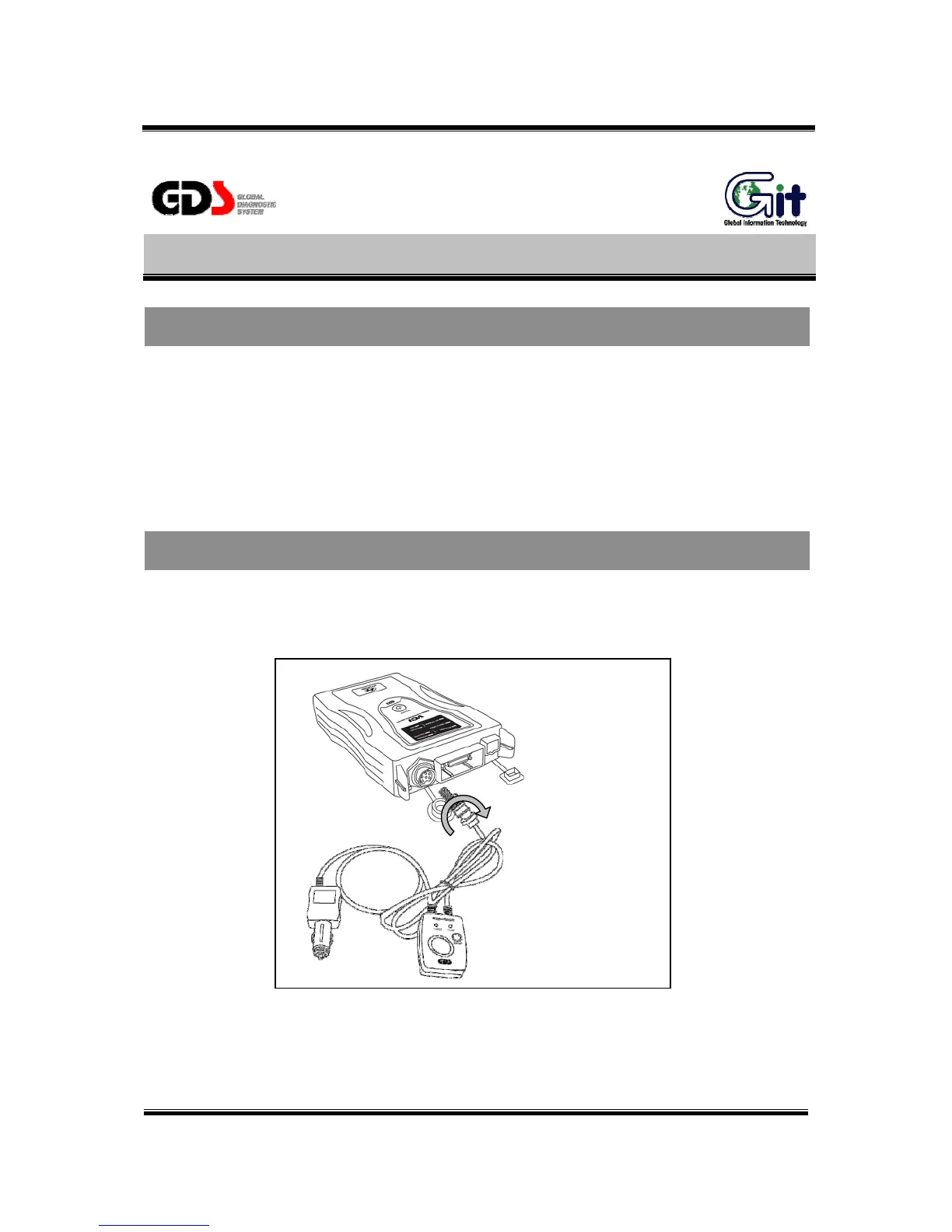

Figure 1. Installation of trigger module and VCI
Connect the trigger module to the cigar lighter or vehicle 12V power point. The trigger module should
be secured in a safe location when operating the vehicle to avoid interference with other vehicle
equipment
Trigger Module
Installation of Trigger Module and Cigar Power Cable
Rotate the round lock tab
