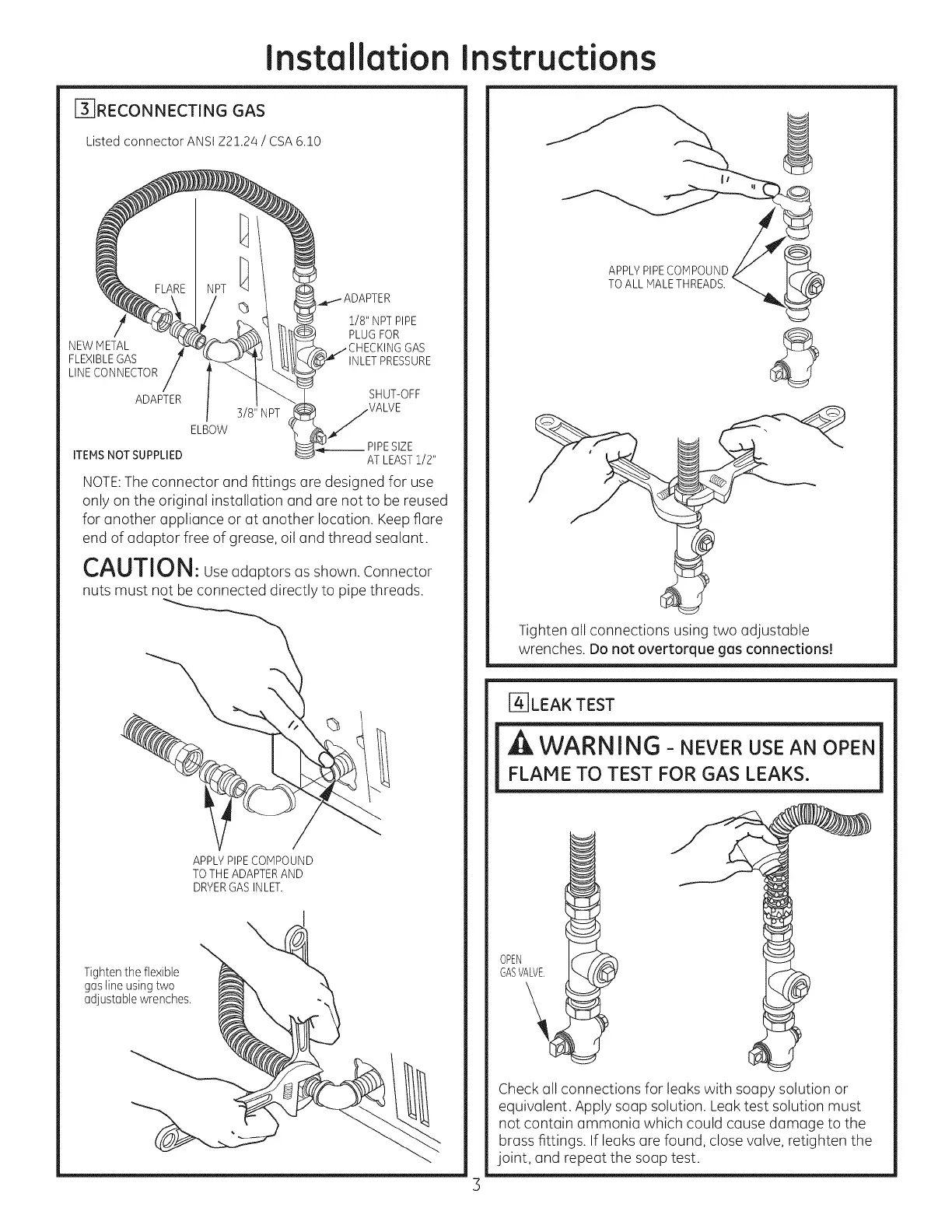

GE 10 - Page 3

Installation Instructions
[3
IRECONNECTING
GAS
J
Listed
connector
ANS!
221.24
/
CSA
6.10
APPLY PIPE COMPOUND
TO ALL MALE THREADS.
4, a ADAPTER
1/8" NPT PIPE
PLUG FOR
NEW METAL CHECKING GAS
FLEXIBLE GAS INLET PRESSURE
LINE CONNECTOR
SHUT-OFF
ADAPTER VALVE
Se PIPE SIZE
AT LEAST 1/2"
NOTE: The connector and fittings are designed for use
only on the original installation and are not to be reused
for another appliance or at another location. Keep flare
end of adaptor free of grease, oil and thread sealant.
CAUTION: Use adaptors as shown. Connector
nuts must not be connected directly to pipe threads.
ITEMS NOT SUPPLIED
Tighten all connections using two adjustable
wrenches. Do not overtorque gas connections!
[4]LEAK TEST
A WARNING - NEVER USE AN OPEN
FLAME TO TEST FOR GAS LEAKS.
APPLY PIPE COMPOUND
TO THE ADAPTER AND
DRYER GAS INLET.
OPEN
Tighten the flexible GAS VALVE.
gas line using two
adjustable wrenches.
v Check all connections for leaks with soapy solution or
equivalent. Apply soap solution. Leak test solution must
not contain ammonia which could cause damage to the
brass fittings. If leaks are found, close valve, retighten the
joint, and repeat the soap test.
