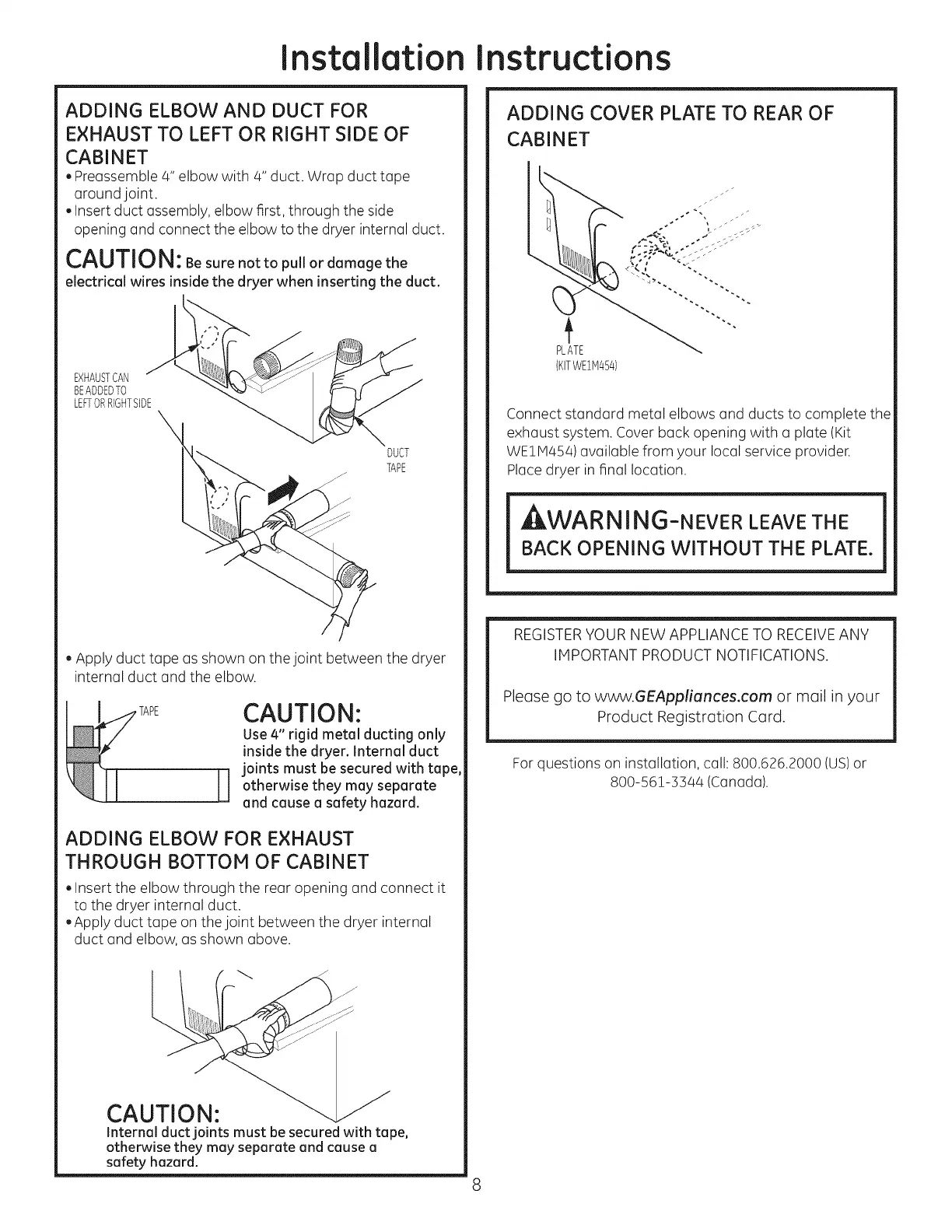

GE 10 - Page 8

Installation Instructions
ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT SIDE OF
CABINET
* Preassemble 4” elbow with 4” duct. Wrap duct tape
around joint.
«Insert duct assembly, elbow first, through the side
opening and connect the elbow to the dryer internal duct.
CAUTION: Be sure not to pull or damage the
electrical wires inside the dryer when inserting the duct.
EXHAUST CAN
BE ADDED TO
LEFT OR RIGHT SIDE
* Apply duct tape as shown on the joint between the dryer
internal duct and the elbow.
re CAUTION:
Use 4” rigid metal ducting only
inside the dryer. Internal duct
joints must be secured with tape,
otherwise they may separate
and cause a safety hazard.
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
Insert the elbow through the rear opening and connect it
to the dryer internal duct.
* Apply duct tape on the joint between the dryer internal
duct and elbow, as shown above.
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR OF
CABINET
PLATE
(KIT WETM454)
Connect standard metal elbows and ducts to complete the
exhaust systern. Cover back opening with a plate (Kit
WE1M454) available from your local service provider.
Place dryer in final location.
A\WARNING-NEVER LEAVE THE
BACK OPENING WITHOUT THE PLATE.
REGISTER YOUR NEW APPLIANCE TO RECEIVE ANY
IMPORTANT PRODUCT NOTIFICATIONS.
Please go to www.GEAppliances.com or mail in your
Product Registration Card.
For questions on installation, call: 800.626.2000 (US} or
800-561-3344 (Canadal.
