GE Power Management 750/760 Feeder Management Relay 16-
75
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
NOTE: A value of 655.35 indicates that the impedance could not be calculated
F54 FORCE LED STATE
0001h LED #1 (Top) (0 = Off, 1 = On)
0002h LED #2 (0 = Off, 1 = On)
0004h LED #3 (0 = Off, 1 = On)
0008h LED #4 (0 = Off, 1 = On)
0010h LED #5 (0 = Off, 1 = On)
0020h LED #6 (0 = Off, 1 = On)
0040h LED #7 (0 = Off, 1 = On)
0080h LED #8 (Bottom) (0 = Off, 1 = On)
F55 FRONT PANEL KEY
0'0'
1'1'
2'2'
3'3'
4'4'
5'5'
6'6'
7'7'
8'8'
9'9'
10 '.'
13 'Value Up'
14 'Value Down'
15 'Message Up'
16 'Message Down'
17 'Next'
18 'Enter'
19 'Escape'
20 'Setpoints'
21 'Actual'
22 'Reset'
23 'Open'
24 'Close'
25 'Help'
31 No Key

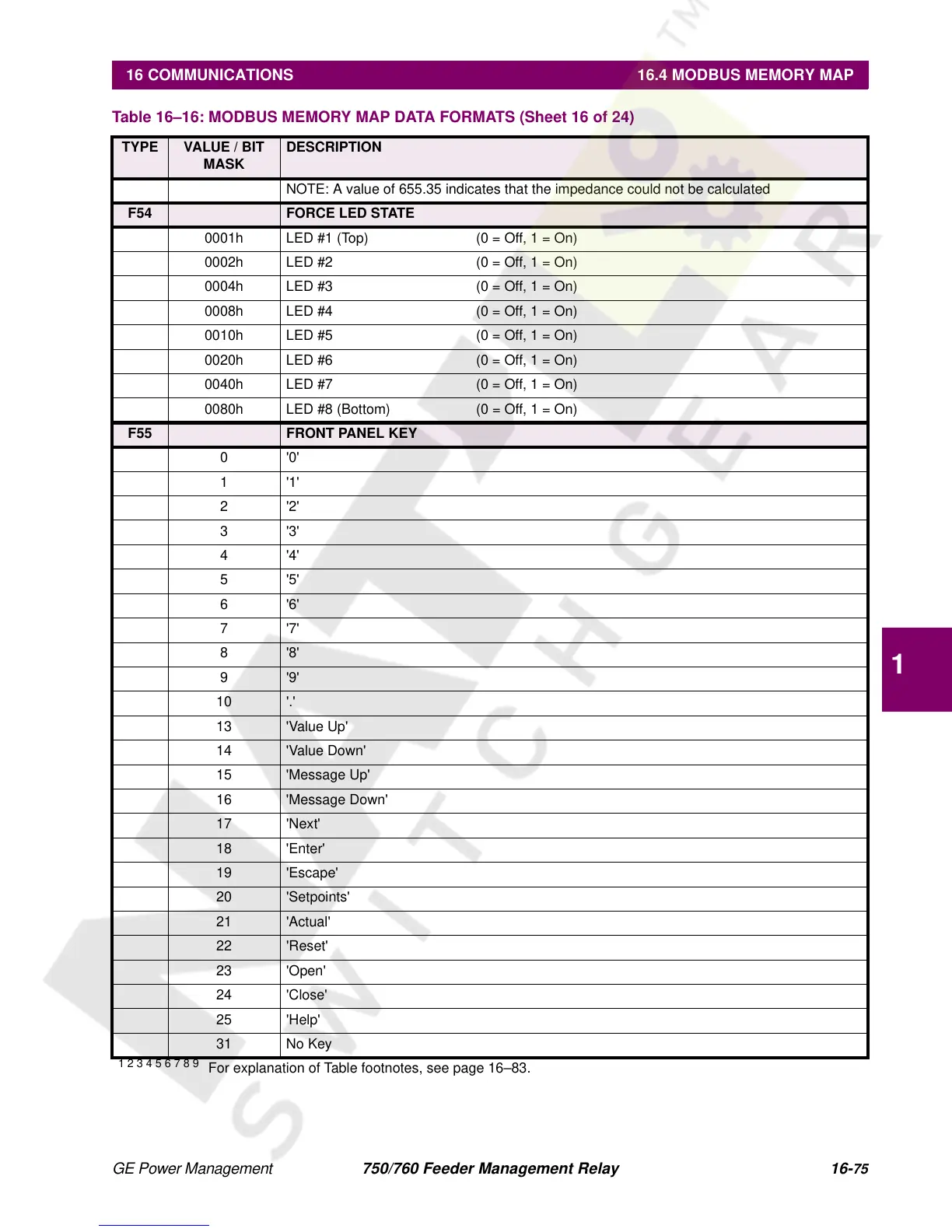

Table 16–16: MODBUS MEMORY MAP DATA FORMATS (Sheet 16 of 24)
TYPE VALUE / BIT
MASK
DESCRIPTION
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–83.
