ADTS542F
K0553 Revision D 6 [EN] English
ADTS542F

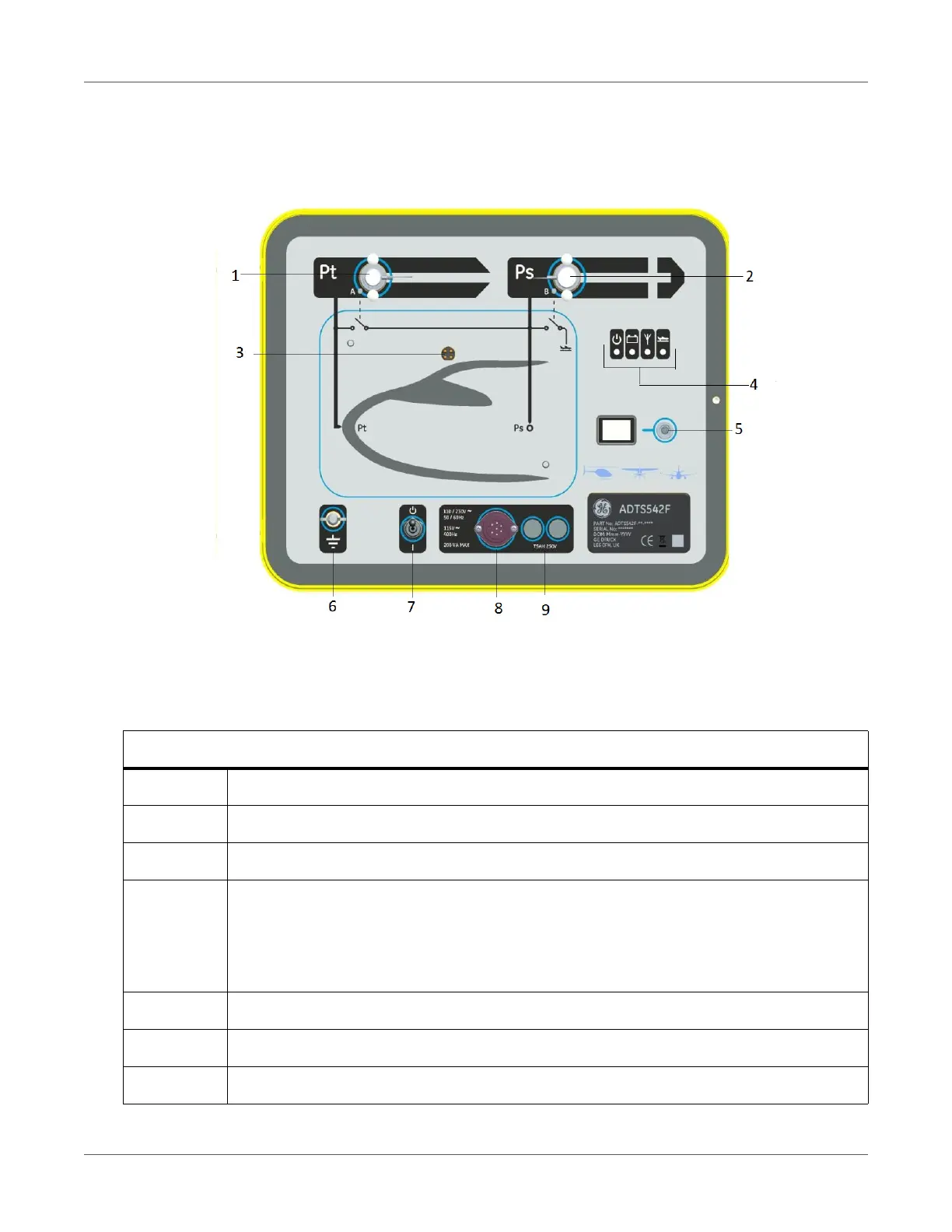

Figure 1-1: ADTS542F General Arrangement
Key to Figure 1-1:
1 Pitot (Pt) pressure port
2 Static (Ps) pressure port
3 ADTS Touch docking connector
4 Test set status indications (see below):
a: Power on and self test
b: Battery pack status (if fitted)
c: Bluetooth® wireless technology connection status
d: Aircraft status
5 ADTS Touch umbilical cable connector
6 External functional earth/ground terminal
7 Power On/Standby switch
