PITOT STATIC

K0553 Revision D 42 [EN] English

This baseline Pitot Static control screen will typically be used to actively exercise the connected

aircraft or system over the required Ps/Pt parameter test range.

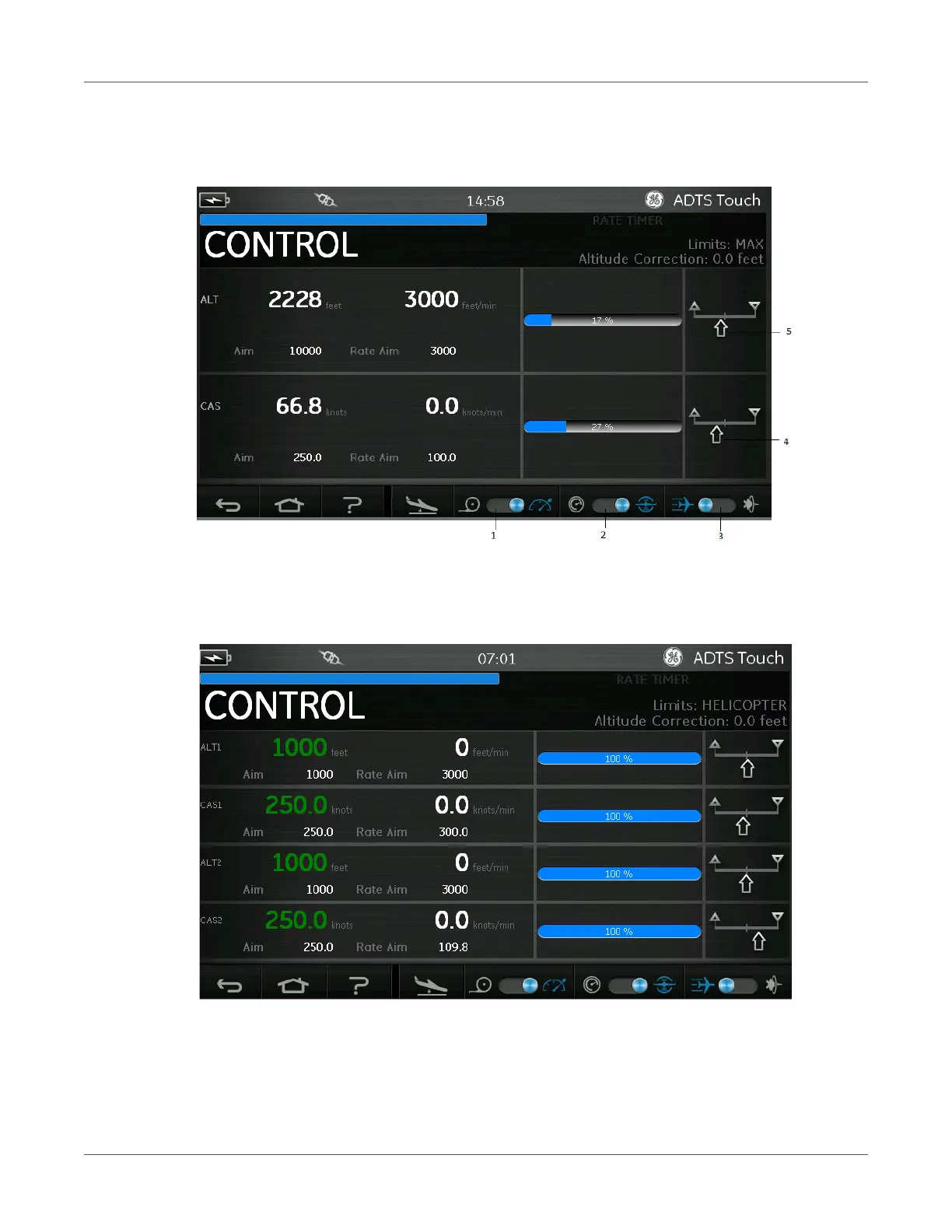

Figure 3-7: Control mode screen - Single Channel

Figure 3-8: Control mode screen - Multi Channel
