Illustration 2.14 Control Wiring Access for IP55/ Nema 12 and
IP66/Nema 4X
2.5.8.2 Control Terminal Types
Illustration 2.15 shows the removable frequency converter
connectors. Terminal functions and default settings are
summarized in Table 2.6.

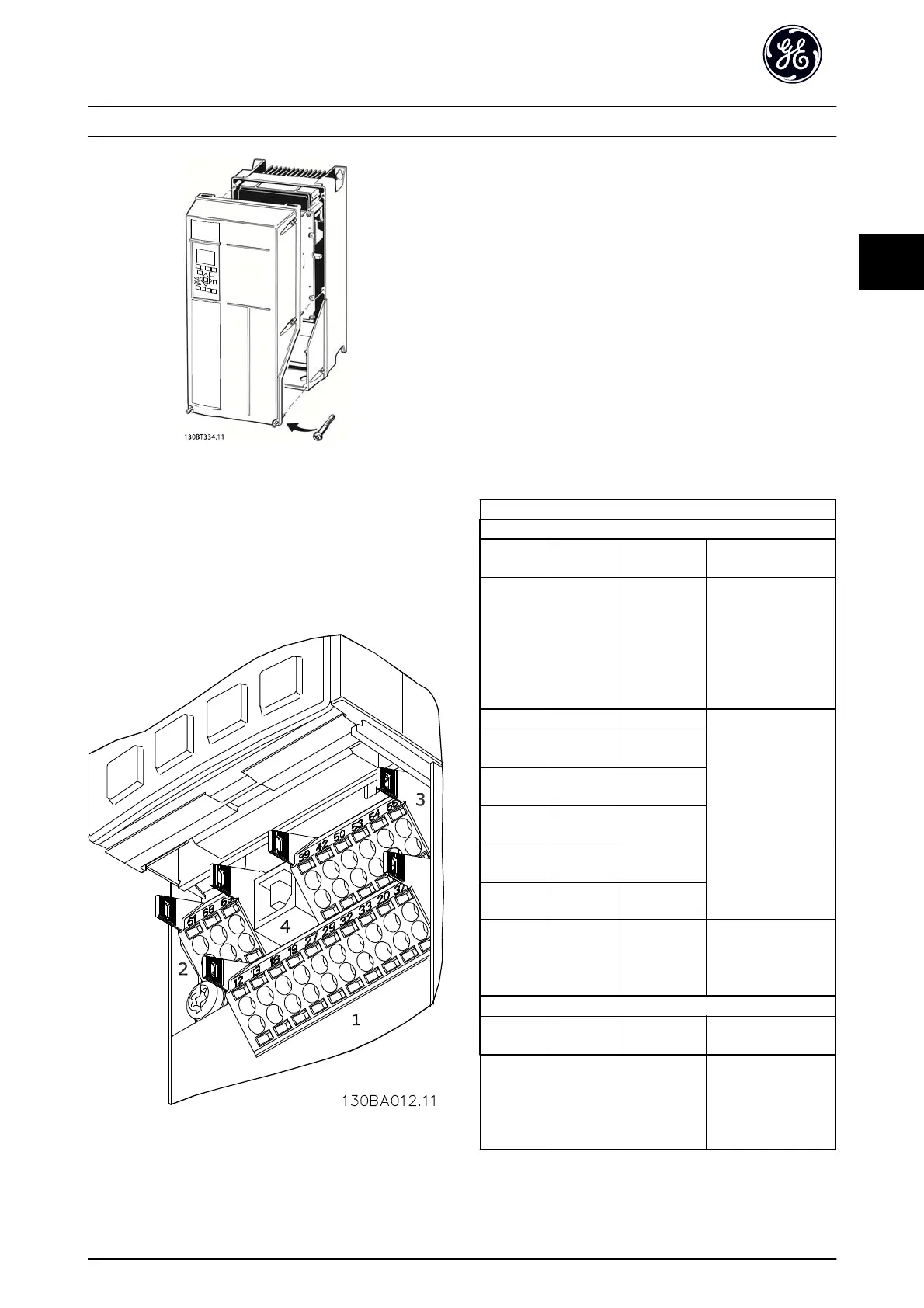

Illustration 2.15 Control Terminal Locations
•
Connector 1 provides four programmable digital
inputs terminals, two additional digital terminals
programmable as either input or output, a 24 V
DC terminal supply voltage, and a common for
optional customer supplied 24 V DC voltage
•
Connector 2 terminals (+)68 and (-)69 are for an
RS-485 serial communications connection
•
Connector 3 provides two analog inputs, one
analog output, 10 V DC supply voltage, and
commons for the inputs and output
•
Connector 4 is a USB port available for use with
the frequency converter
•
Also provided are two Form C relay outputs that
are in various locations depending upon the
frequency converter configuration and size
•
Some options available for ordering with the unit
may provide additional terminals. See the manual
provided with the equipment option.
See 13.2 General Technical Data for terminal ratings details.
Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
12, 13 - +24 V DC 24 V DC supply
voltage. Maximum
output current is 200
mA total for all 24 V
loads. Useable for
digital inputs and
external transducers.
18 E-01 [8] Start
Digital inputs.
19 E-02 [0] No
operation
32 E-05 [0] No
operation
33 E-06 [0] No
operation
27 E-03 [0] No
operation
Selectable for digital
input and output.
Default setting is
input.
29 E-04 [14] JOG
20 - Common for digital
inputs and 0 V
potential for 24 V
supply.
Analog Inputs/Outputs
39 -
Common for analog
output
42 AN-50 Speed 0 -
High Limit
Programmable analog
output. The analog
signal is 0-20 mA or
4-20 mA at a
maximum of 500
Ω
Installation
AF-600 FP
TM
Design and Installation Guide
DET-768b 21
