GE AHS24 - Final Window and Case Preparations; Window Lock Bracket Installation; Foam Insulation for Sealing

49-7791 13
Installation Instructions
INSTALLATION INSTRUCTIONS

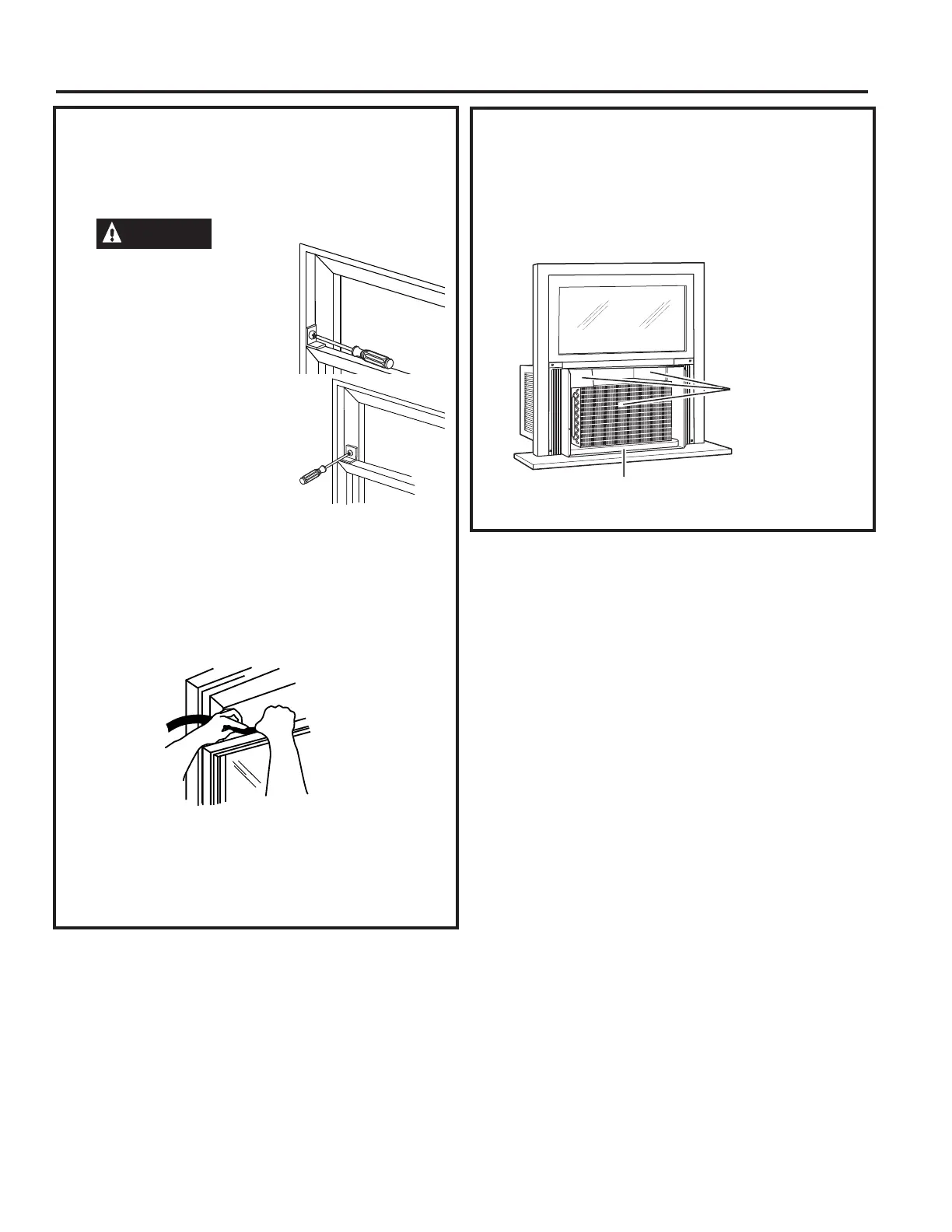

5. PREPARE THE WINDOW AND
INSTALL THE CASE (continues)
8VH7\SH%6FUHZWRLQVWDOOWKHZLQGRZORFN
bracket on top of the bottom window.
H.
CAUTION
To prevent broken glass or
damage to windows, on vinyl
or other similarly constructed
windows, attach the window
locking bracket to the
window side jamb with one
7\SH%VFUHZ
I. Cut the foam top window gasket to the window
width.
J. Stuff the foam between the glass and the window
to prevent air and insects from getting into the
room.
NOTE: If the gasket supplied does not fit your
window, obtain appropriate material locally to
provide a proper installation seal.
Wood
Vinyl
6. INSTALL THE AIR CONDITIONER
IN THE CASE
A. Slide the air conditioner into the case by
the base pan. Do not push on the controls, foam
air discharge housing or the finned coils. Make
sure the air conditioner is firmly seated.
Do not press on
these areas—
damage to the unit
may result
%DVH3DQ
