AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
6−2

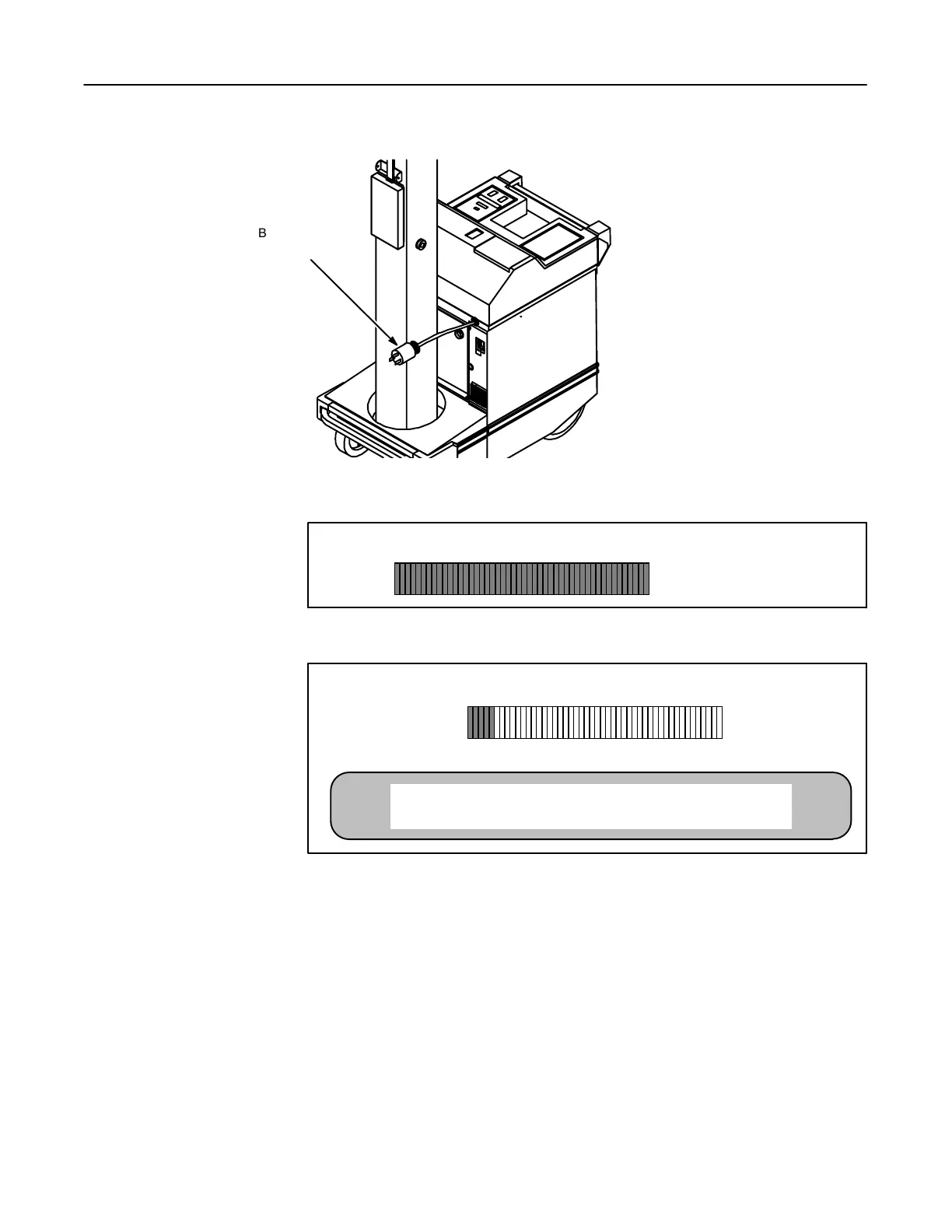

ILLUSTRATION 6−1
BATTERY
CHARGING
PLUG
TO CHARGE THE
BATTERY, SIMPLY PLUG
THE UNIT INTO ANY
CORRECTLY RATED WALL
OUTLET.
AT OR NEAR FULL CHARGE,
ALL SEGMENTS ARE
ILLUMINATED.
% Charge
The blue battery status display approximates remaining battery charge, and should
only be used to gather information as to the relative state of charge.
RECHARGE RECOMMENDED
WHEN BATTERY
CHARGE DIPS BELOW
APPROXIMATELY 10%,
RECHARGE IS
RECOMMENDED.
% Charge
As the AMX−4+ is used in its various modes of operation, the number of segments lit
will slowly decrease.
It’s important to note that you do not have to raise your kVp and mAs value to compen-
sate for low battery voltage.
Should the battery charge dip below approximately 10% of full capacity, RECHARGE
RECOMMENDED will flash on the message display. (If all segments are extinguished,
the message RECHARGE IMMEDIATELY −− X−RAY INHIBITED displays.)
To ensure maximum battery life, the AMX−4+ should not be recharged until at least
one−half of the bar graph segments have extinguished.
Illustration 6−2 shows how much of the battery’s capacity is used for the various
AMX−4+ operating modes on a relative basis.
FOR TRAINING PURPOSES ONLY!
