GE AMX 4+ Technical Publications

AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
3−1
SECTION 3
OPERATING CONTROLS

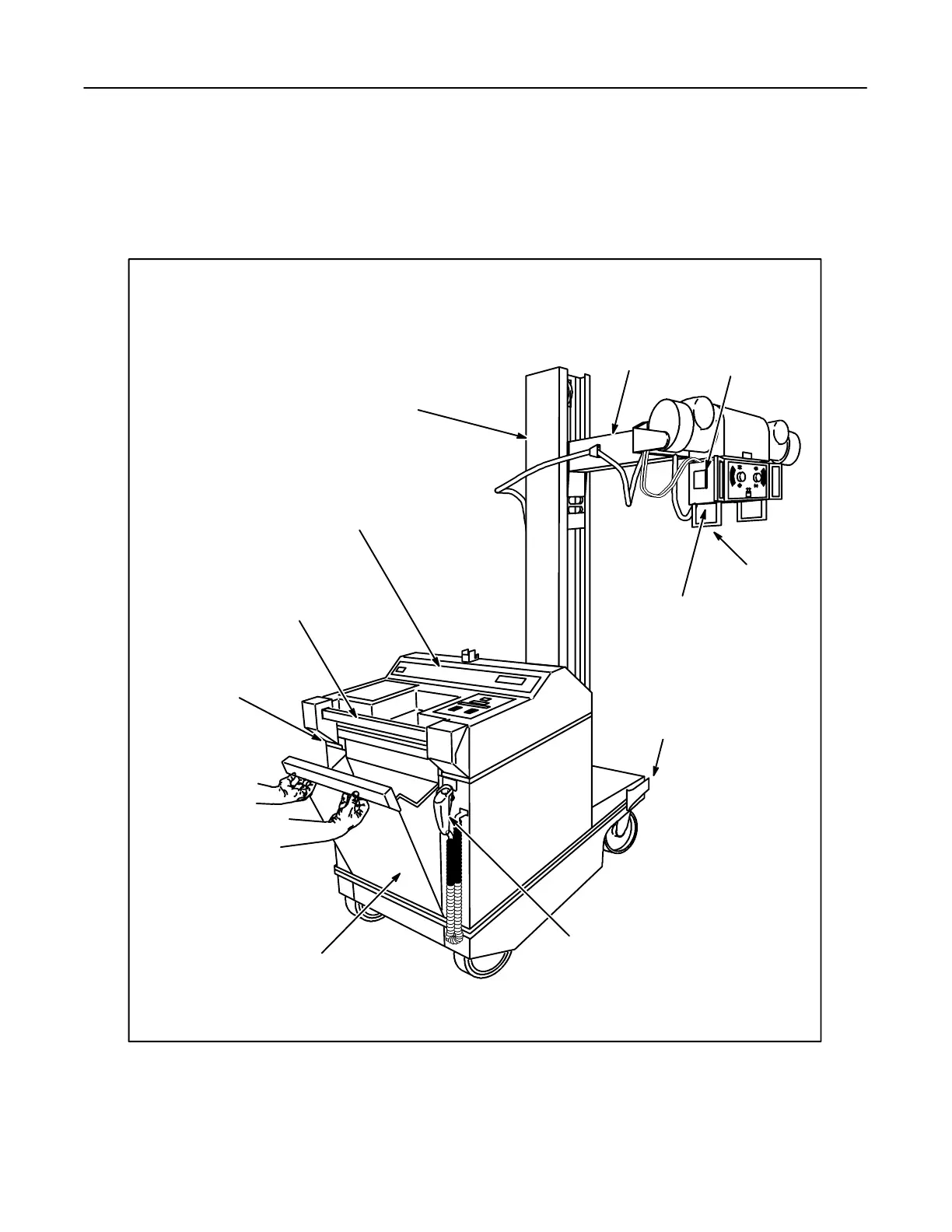

ILLUSTRATION 3−1
AMX−4+ MOBILE X−RAY UNIT (RIGHT REAR VIEW)
FILM BIN
Provides convenient storage
for ten 14" x 17" cassettes.
DRIVE HANDLE
Grip to activate
drive motors.
CONTROL PANEL
Contains most operator controls
and all displays.
VERTICAL COLUMN
Supports telescoping arm.
TELESCOPING ARM
Retractable arm supports
collimator and x−ray tube.
TAPE MEASURE
SKIN SPACER
BARS
COLLIMATOR
Adjusts easily.
Calibrated in inches
or cm.
HANDSWITCH
Controls exposures and automat-
ically timed field light.
SELF−STOPPING BUMPER
Stops drive motors and activates
brakes on impact.
BRAKE RELEASE
Releases brakes if
drive motors fail.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
