AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
3−2

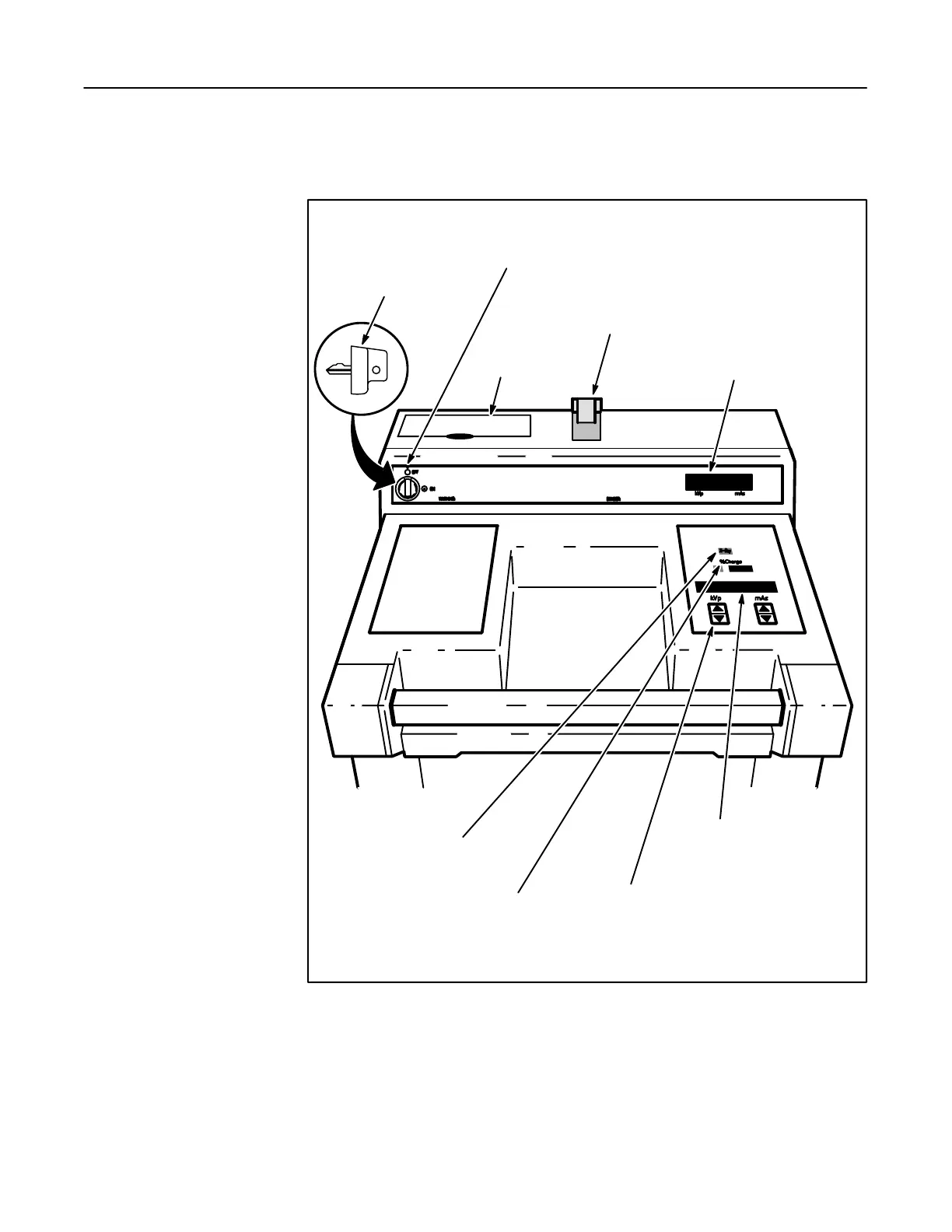

ILLUSTRATION 3−2
AMX−4+ OPERATOR CONSOLE
PENCIL TRAY
KEY SWITCH
Turn ON to drive the unit or take
exposures. Turn OFF to remove key.
Recharge in ON or OFF positions.
LATCH
Secure the vertical column
in the park / transport position.
KVP AND MAS DISPLAY
Displays kVp and mAs selections.
X−RAY EXPOSURE INDICATORS
Light up when exposure is made.
BATTERY STATUS DISPLAY
Shows relative state of charge.
At or near full charge, all segments are
illuminated.
KVP AND MAS CONTROLS
Press the up or down kVp/mAs
triangle to select the correct
exposure setting.
MESSAGE DISPLAY
Displays status and
error messages.
NOTE: Top of cap key
when in OFF
position.
FOR TRAINING PURPOSES ONLY!
