AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
6−5

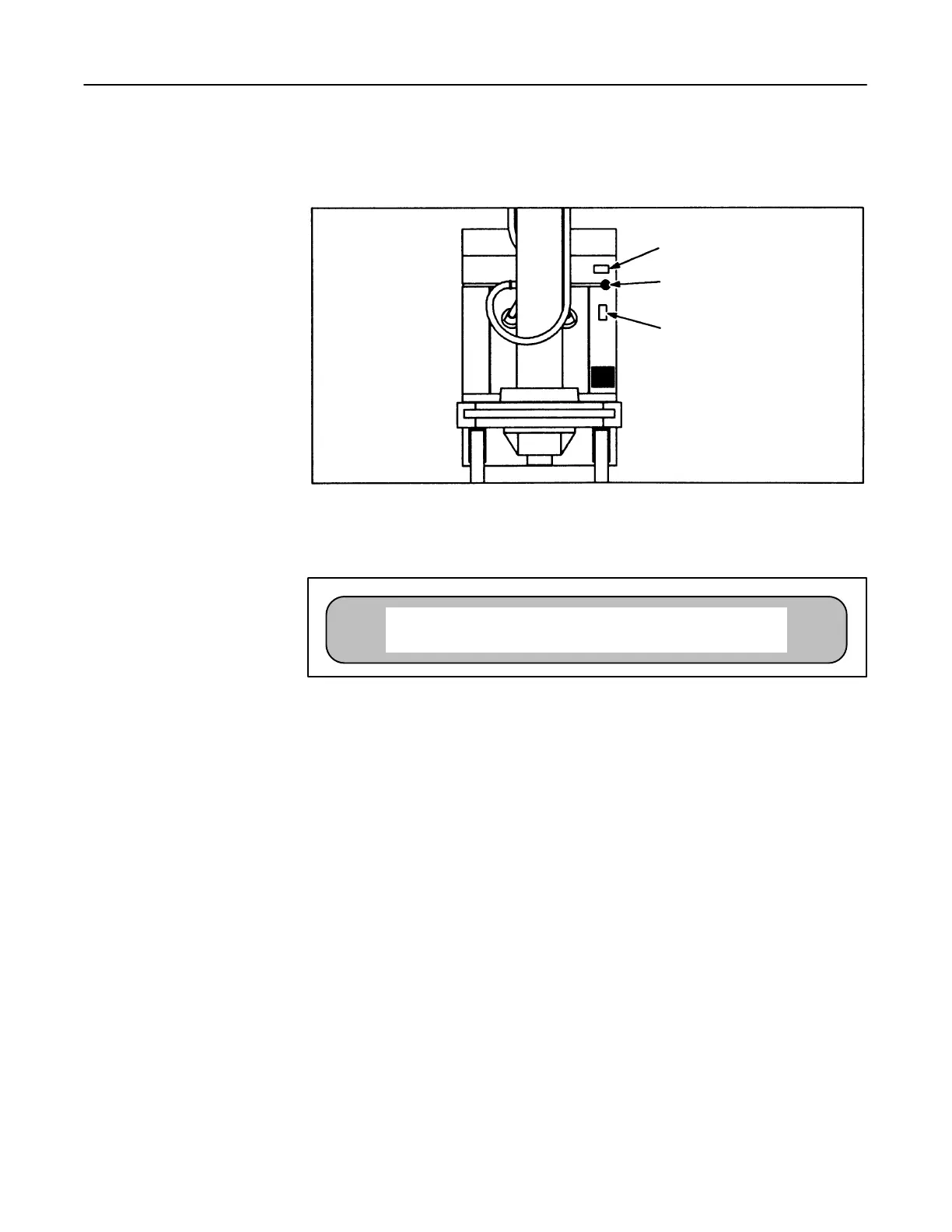

ILLUSTRATION 6−3
RATING PLATE
BATTERY CHARGING
PLUG
CIRCUIT BREAKER
3. Check the message display to confirm the charging status: the message CHARG-
ING should appear on the display.
CHARGING
D During charging all other controls, driving and x−ray exposures, for in-
stance, are disabled. Note that you may charge the batteries with the KEYS-
WITCH in either the ON or OFF position.
4. When CHARGE COMPLETE appears on the message display, and all blue seg-
ments are illuminated, the batteries are fully charged (at 100% of capacity).
5. Unplug the unit from the outlet, giving the plug a slight tug to release from take−
up reel.
Important: After unplugging the unit, turn the unit on and wait approximately 15
minutes before taking your first exposure to ensure technique accuracy.
D You may leave the unit in the charge position indefinitely, if you wish, with-
out damaging the equipment.
D The prompt BATTERY TOO HIGH may display when the first exposure is
attempted after charging. If this occurs, run the rotor for 15 to 20 seconds and
then make the exposure. This prompt is caused by a normal battery voltage
rise after charging.
