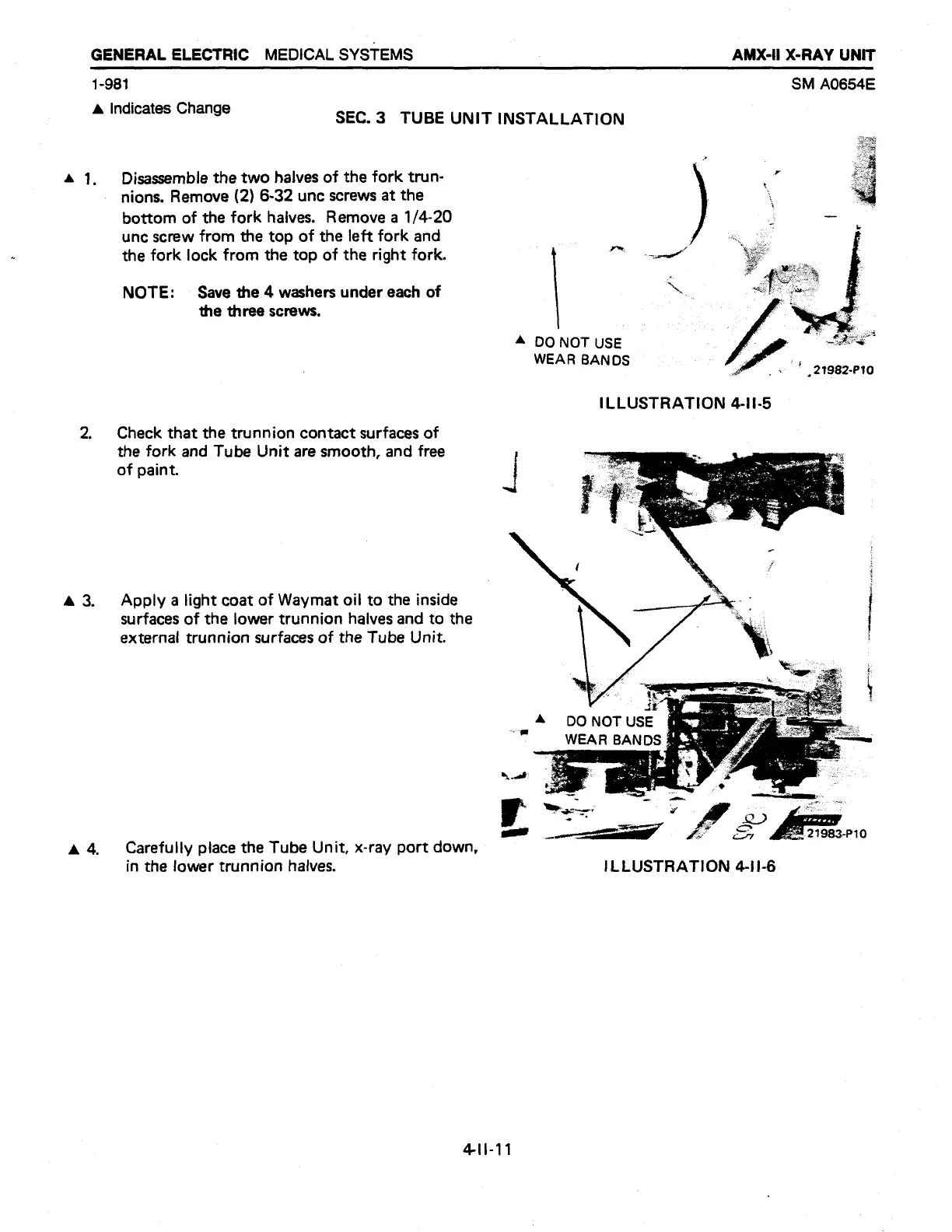

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
1-981
A
indicates
Change
A
1.
Disassemble
the
two
halves
of
the
fork
trun-
nions.
Remove
(2)
6-32
unc
screws
at
the
bottom
of
the
fork
halves.
Remove
a
1/4-20
unc
screw
from
the
top
of
the
left
fork
and
the
fork
lock
from
the
top
of
the
right
fork.
Save
the
4
washers
under
each
of
the
three
screws.
NOTE:
2.
Check
that
the
trunnion
contact
surfaces
of
the
fork
and
Tube
Unit
are
smooth,
and
free
of
paint.
A
3.
Apply
a
light
coat
of
Waymat
oil
to
the
inside
surfaces
of
the
lower
trunnion
halves
and
to
the
external
trunnion
surfaces
of
the
Tube
Unit.
A
4.
Carefully
place
the
Tube
Unit,
x-ray
port
down,
in
the
lower
trunnion
halves.
AMX-li
X-RAY
UNIT
SM
A0654E
SEC.
3
TUBE
UNIT
INSTALLATION
4
DO
NOT
USE
WEAR
BANDS
ILLUSTRATION
4-11-5
21982-P10
y
<=
<?
ILLUSTRATION
4-11-6
21983-P10
4-11-11
