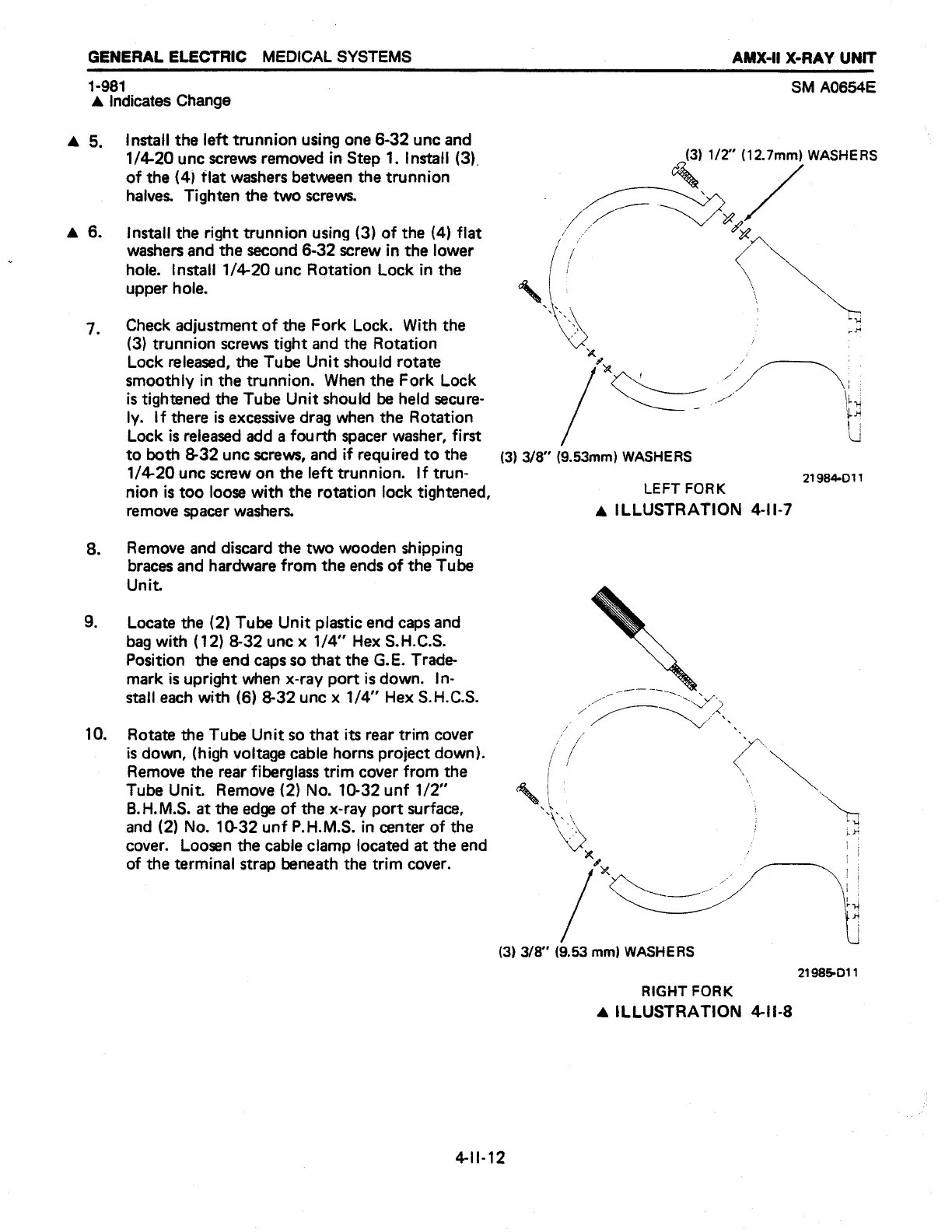

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-i X-RAY UNIT
1-981
SM A0654E
A Indicates Change
A 5.
д 6.
10.
Install the left trunnion using one 6-32 unc and
1/4-20 unc screws removed in Step 1. Install (3). (3) 1/2” (12.7mm) WASHERS
of the (4) flat washers between the trunnion
halves. Tighten the two screws. , | `
Instali the right trunnion using (3) of the (4) flat
washers and the second 6-32 screw in the lower
hole. Install 1/4-20 une Rotation Lock in the
upper hole.
Check adjustment of the Fork Lock. With the x
(3) trunnion screws tight and the Rotation A /
Lock released, the Tube Unit should rotate и 1.
smoothly in the trunnion. When the Fork Lock и SON. |
is tightened the Tube Unit should be held secure- < lb
ly. If there is excessive drag when the Rotation
Lock is released add a fourth spacer washer, first
to both 8-32 unc screws, and if required to the (3) 3/8" (9.53mm) WASHERS
1/4-20 unc screw on the left trunnion. If trun- 21984011
nion is too loose with the rotation lock tightened, LEFT FORK
remove spacer washers. A ILLUSTRATION 4-11-7
Remove and discard the two wooden shipping
braces and hardware from the ends of the Tube
Unit.
Locate the (2) Tube Unit plastic end caps and
bag with (12) 8-32 unc x 1/4” Hex S.H.C.S.
Position the end caps so that the G.E. Trade-
mark is upright when x-ray port is down. In-
stall each with (6) 8-32 unc x 1/4” Hex S.H.C.S.
Rotate the Tube Unit so that its rear trim cover
is down, (high voltage cable horns project down).
Remove the rear fiberglass trim cover from the
Tube Unit. Remove (2) No. 10-32 unf 1/2”
B.H.M.S. at the edge of the x-ray port surface,
and (2) No. 10-32 unf P.H.M.S. in center of the
cover. Loosen the cable clamp located at the end
of the terminal strap beneath the trim cover.
(3) 3/8" (9.53 mm) WASHERS
21985011
RIGHT FORK
A ILLUSTRATION 411-8
4-11-12
