GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-H X-RAY UNIT
1.981
SM
A0654E

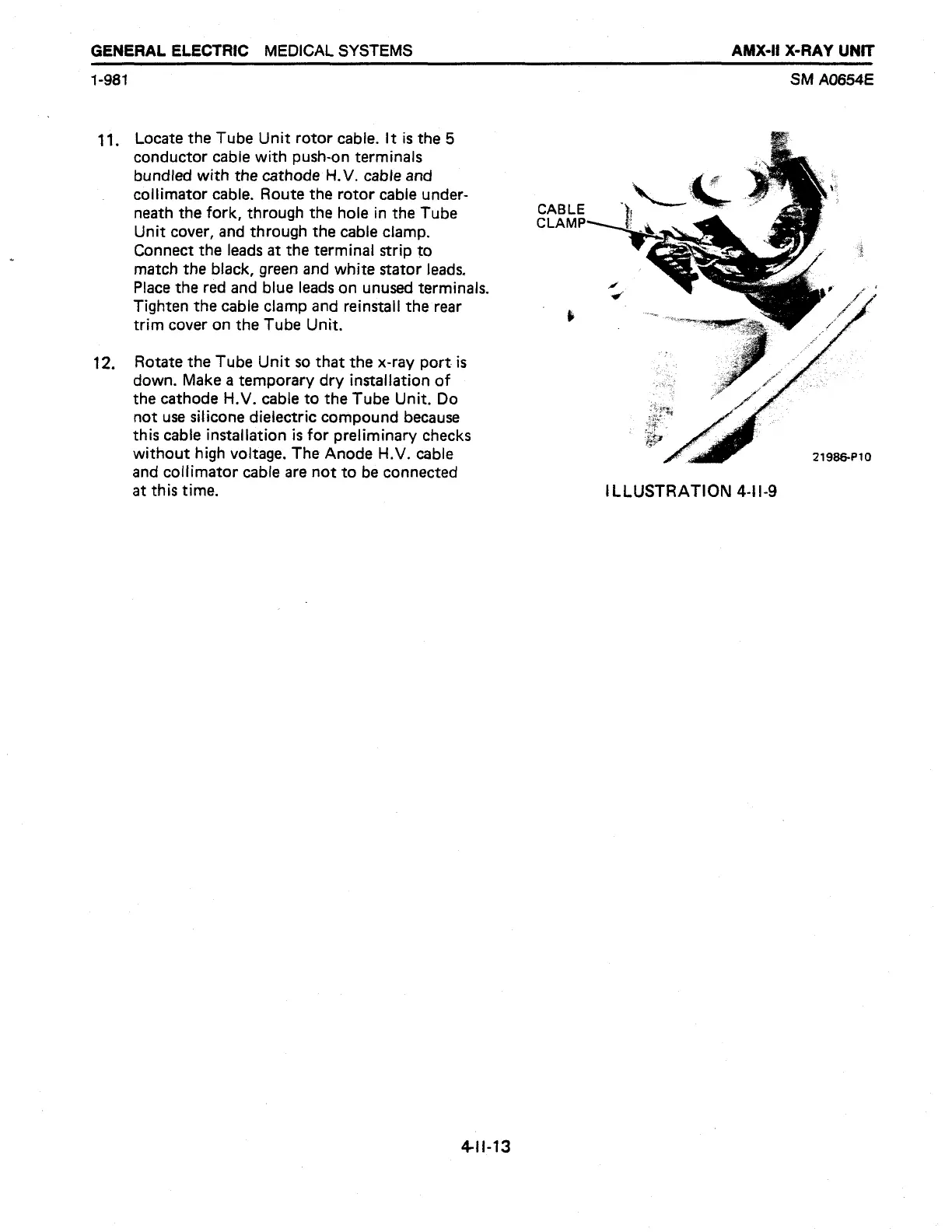

11. Locate the Tube Unit rotor cable. It is the 5
conductor cable with push-on terminals
bundled with the cathode H.V. cable and
collimator cable. Route the rotor cabie under-
neath the fork, through the hole in the Tube
Unit cover, and through the cable clamp.
Connect the leads at the terminal strip to
match the black, green and white stator leads.
Place the red and blue leads on unused terminals.
Tighten the cabie clamp and reinstall the rear
trim cover on the Tube Unit.
12, Rotate the Tube Unit so that the x-ray port is
down. Make a temporary dry installation of
the cathode H.V. cable to the Tube Unit. Do
not use silicone dielectric compound because
this cable installation is for preliminary checks
without high voltage. The Anode H.V. cable
and collimator cable are not to be connected
at this time. ILLUSTRATION 4-11-9
21986-P 10
411-13
