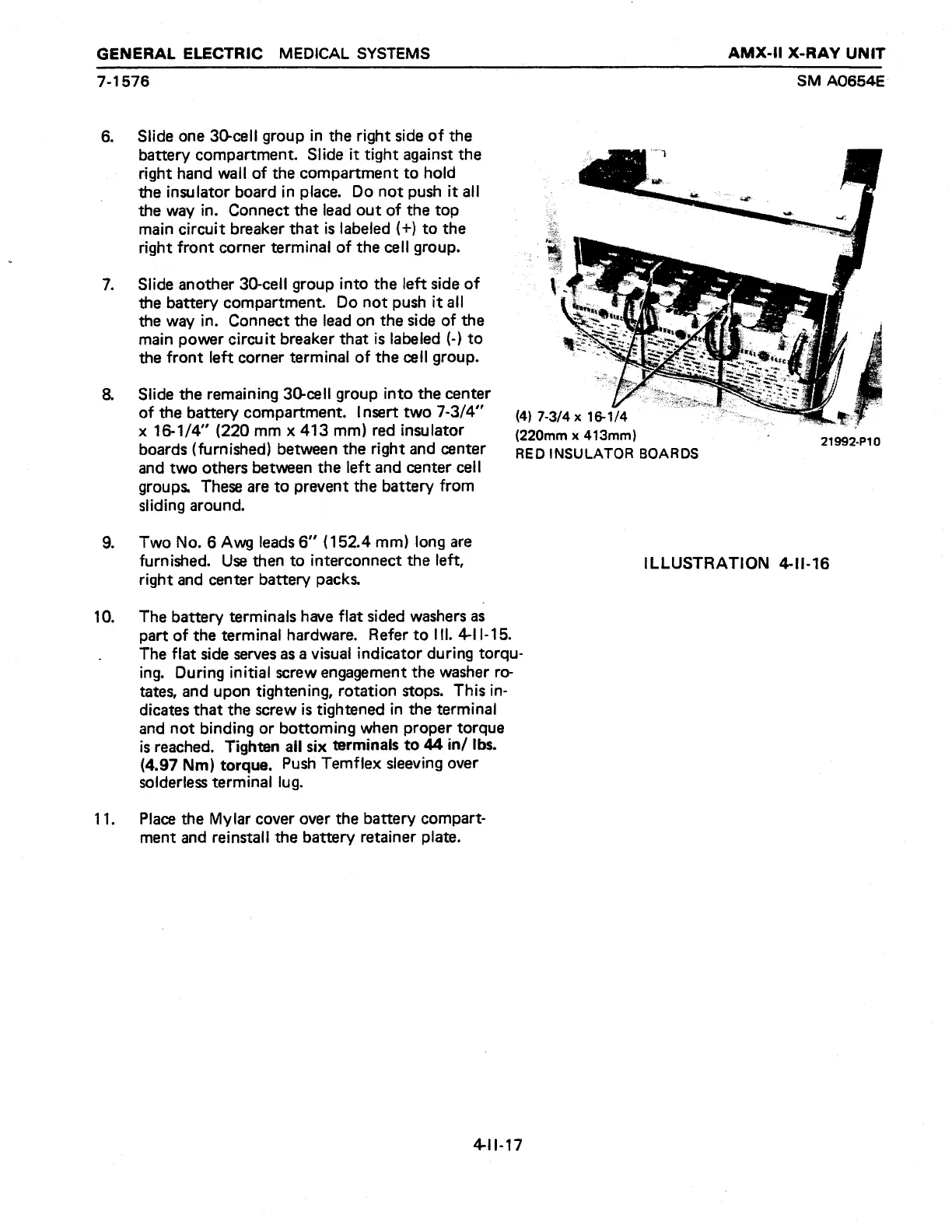

6. Slide one 30-cell group in the right side of the
battery compartment. Slide it tight against the
right hand wall of the compartment to hold
the insulator board in piace. Do not push it all
the way in. Connect the lead out of the top
main circuit breaker that is labeled (+) to the
right front corner terminal of the cell group.
7. Slide another 30-cell group into the left side of
the battery compartment. Do not push it all
the way in. Connect the lead on the side of the
main power circuit breaker that is labeled (-) to
the front left corner terminal of the cell group.
8 Slide the remaining 30-cell group into the center e
of the battery compartment. Insert two 7-3/4” (4) 7.3/4 x 16-1/4
x 16-1/4" (220 mm x 413 mm) red insulator (220mm x 413mm)
boards (furnished) between the right and center RED INSULATOR BOARDS
and two others between the left and center cell
groups. These are to prevent the battery from
sliding around.
21992-P10
9. Two No. 6 Awg leads 6” (152.4 mm) long are
furnished. Use then to interconnect the left, ILLUSTRATION 4-11-16
right and center battery packs,
10. The battery terminals have flat sided washers as
part of the terminal hardware. Refer to Il. 411-15.
The flat side serves as a visual indicator during torqu-
ing. During initial screw engagement the washer ro-
tates, and upon tightening, rotation stops. This in-
dicates that the screw is tightened in the terminal
and not binding or bottoming when proper torque
is reached. Tighten all six terminals to 44 in/ Ibs.
(4.97 Nm) torque. Push Temflex sleeving over
solderless terminal lug.
11. Place the Mylar cover over the battery compart-
ment and reinstall the battery retainer plate.
