GENERAL ELECTRIC MEDICAL SYSTEMS AMX-il X-RAY UNIT
7-1576 SM A0654E

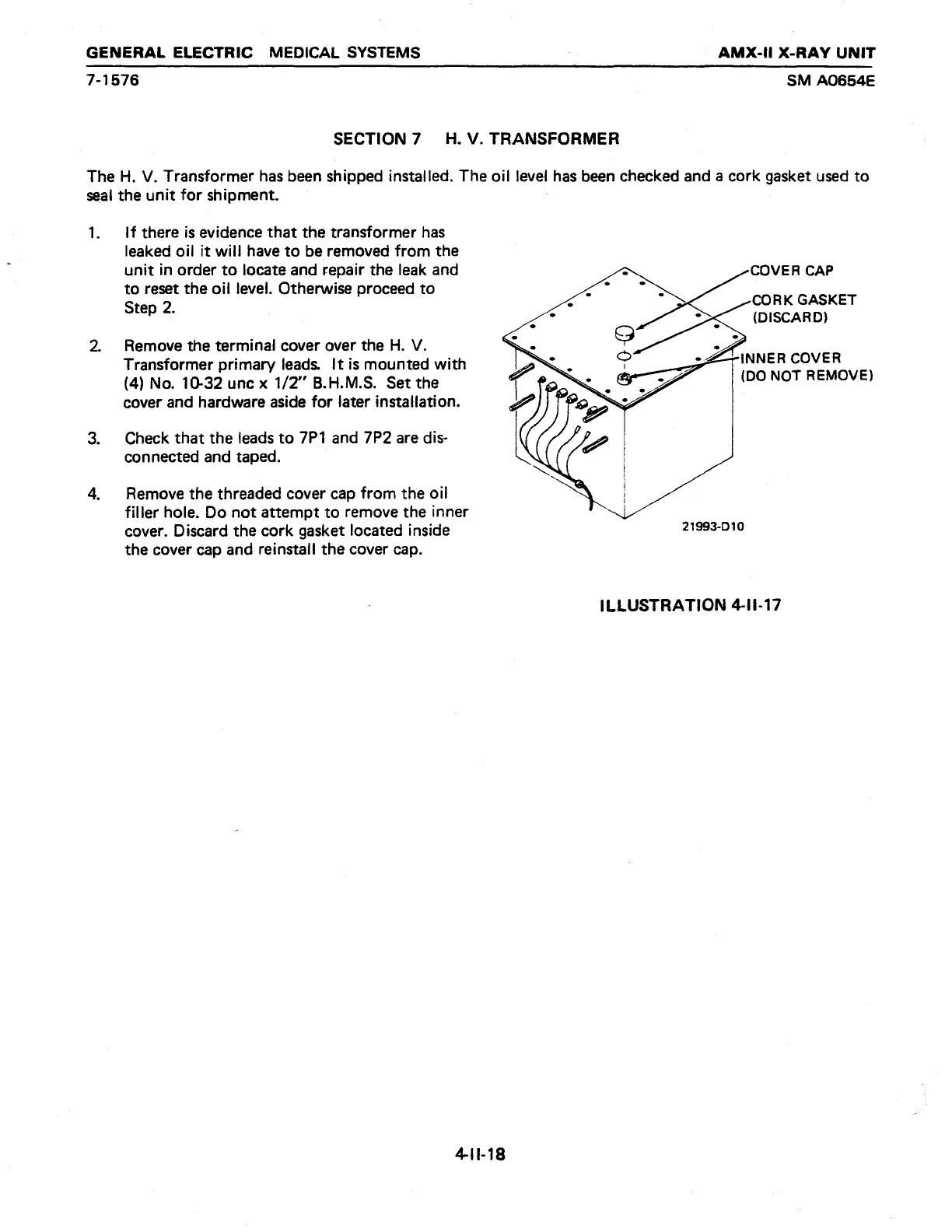

SECTION 7 H.V. TRANSFORMER
The H. V. Transformer has been shipped installed. The oil level has been checked and a cork gasket used to
seal the unit for shipment.
1. If there is evidence that the transformer has
leaked oil it will have to be removed from the
unit in order to locate and repair the leak and
to reset the oil level. Otherwise proceed to
Step 2.
COVER CAP
CORK GASKET
(DISCARD)
2. Remove the terminal cover over the H. V.
Transformer primary leads. It is mounted with
(4) No. 10-32 unc x 1/2” B.H.M.S. Set the
cover and hardware aside for later installation.
INNER COVER
(DO NOT REMOVE)
3. Check that the leads to 7P1 and 7P2 are dis-
connected and taped.
4. Remove the threaded cover cap from the oil
filler hole. Do not attempt to remove the inner
cover. Discard the cork gasket located inside 21993-D10
the cover cap and reinstall the cover cap.
ILLUSTRATION 4-11-17
4-11-18
