GENERAL
ELECTRIC
MEDICAL
SYSTEMS
1-1582
|
10.
11.
12.

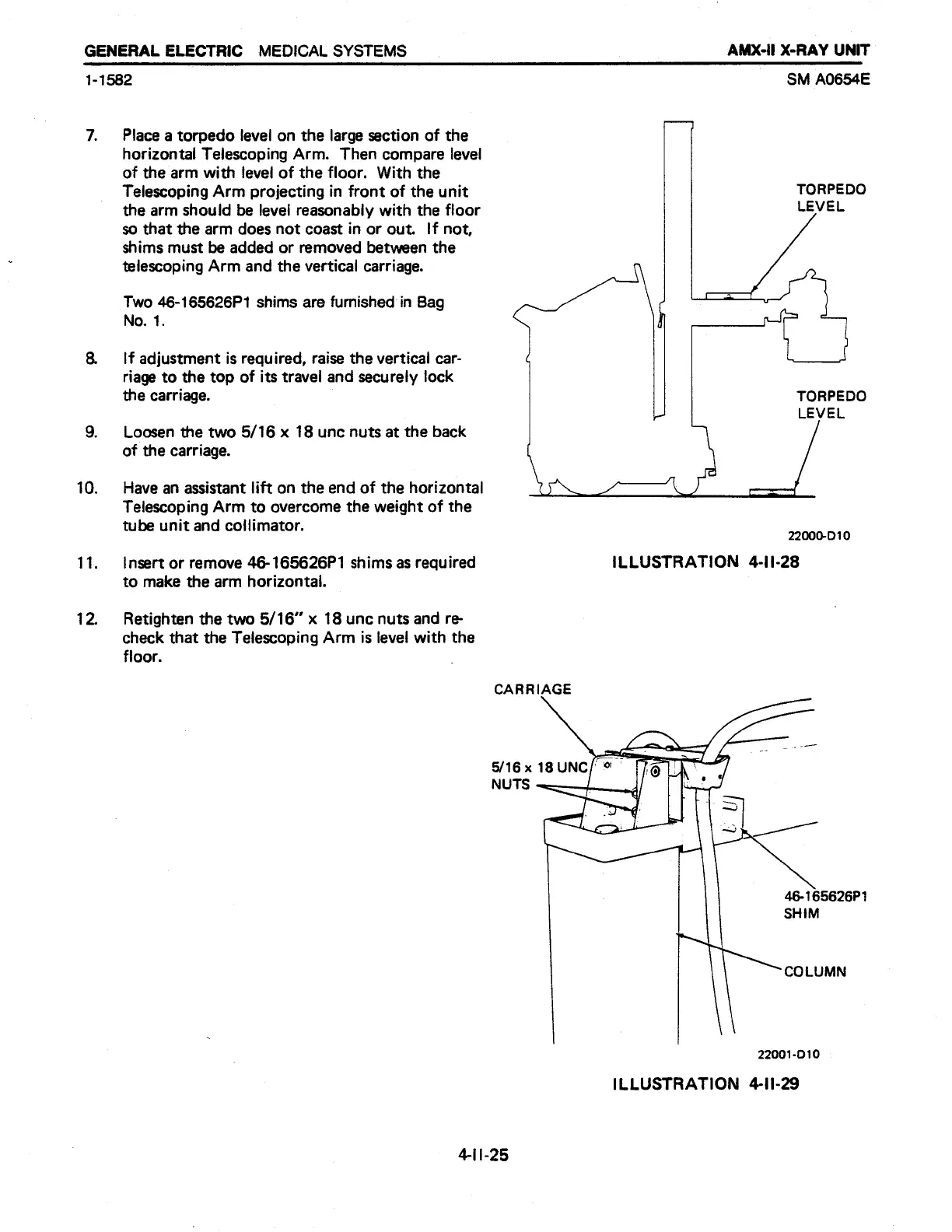

Place
a
torpedo
level
on
the
large
section
of
the
horizontal
Telescoping
Arm.
Then
compare
level
of
the
arm
with
level
of
the
floor.
With
the
Telescoping
Arm
projecting
in
front
of
the
unit
the
arm
should
be
level
reasonably
with
the
floor
so
that
the
arm
does
not
coast
in
or
out.
If
not,
shims
must
be
added
or
removed
between
the
telescoping
Arm
and
the
vertical
carriage.
Two
46-165626P1
shims
are
furnished
in
Bag
No.
1.
If
adjustment
is
required,
raise
the
vertical
car-
riage
to
the
top
of
its
travel
and
securely
lock
the
carriage.
Loosen
the
two
5/16
x
18
unc
nuts
at
the
back
of
the
carriage.
Have
an
assistant
lift
on
the
end
of
the
horizontal
Telescoping
Arm
to
overcome
the
weight
of
the
tube
unit
and
collimator.
insert
or
remove
46-165626P1
shims
as
required
to
make
the
arm
horizontal.
Retighten
the
two
5/16”
x
18
unc
nuts
and
re-
check
that
the
Telescoping
Arm
is
level
with
the
floor.
AMX-il
X-RAY
UNIT
_
684
A0654E
TORPEDO
LEVEL
TORPEDO
LEVEL
22000-D10
ILLUSTRATION
4-11-28
CARRIAGE
46-165626P1
SHIM
COLUMN
22001-010
ILLUSTRATION
4-11-29
4-11-25
