GENERAL ELECTRIC MEDICAL SYSTEMS AMX-il X-RAY UNIT
10-377 SM A0654E

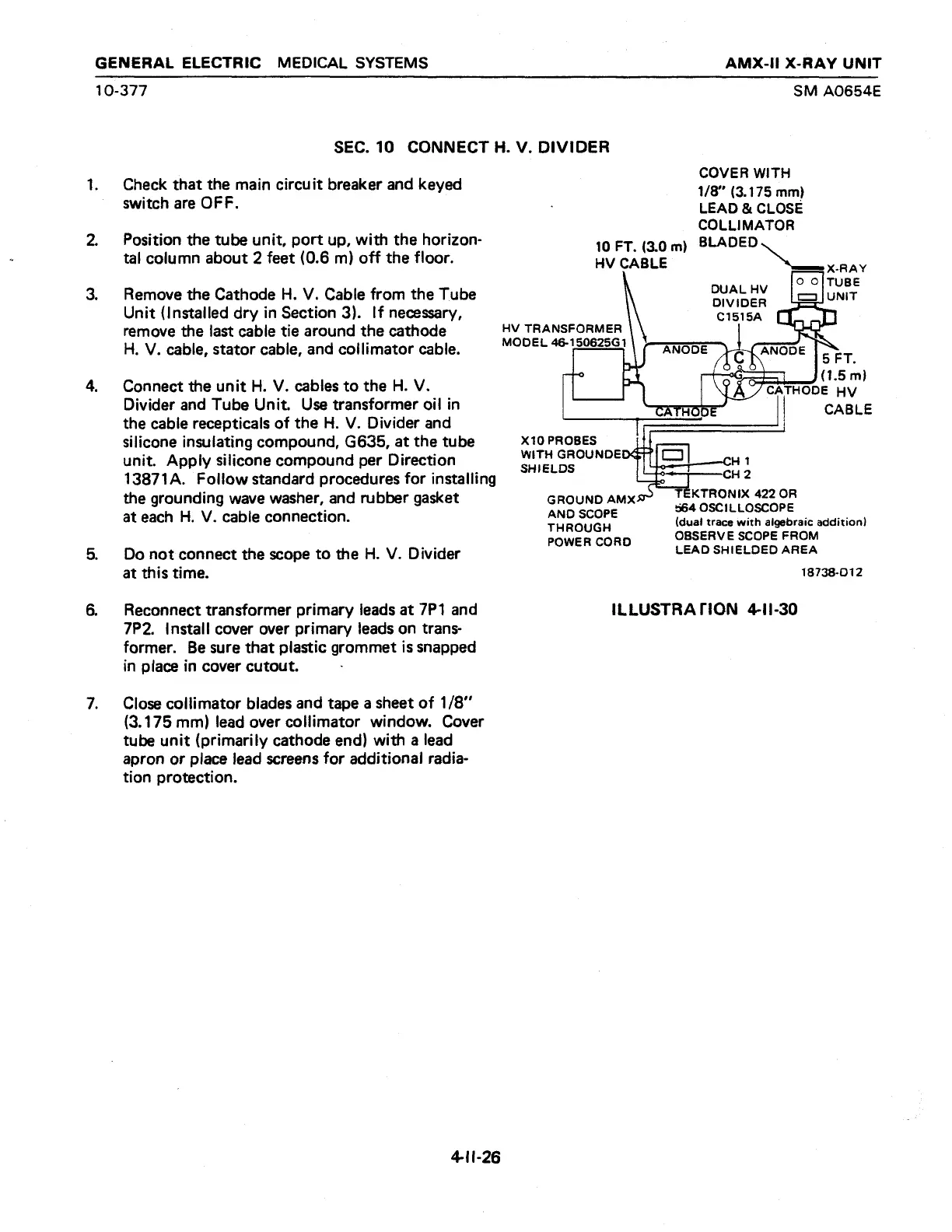

SEC. 10 CONNECT H. V. DIVIDER
. COVER WITH
Check that the main circuit breaker and keyed 1/8” (3.175 mm)
switch are OFF. . LEAD & CLOSE
р h be ith the hori COLLIMATOR
osition the tube unit, port up, with the horizon- 10 FT. (3.0m) BLADED
tal column about 2 feet (0.6 m) off the floor. HV CABLE N X-RAY
TUBE
Remove the Cathode H. V. Cable from the Tube UNIT
Unit (Installed dry in Section 3). If necessary,
remove the last cable tie around the cathode HV TRANSFORMER
MODEL 46-150625G1
H. V. cable, stator cable, and collimator cable.
Connect the unit H. V. cables to the H. V.
CATHODE HV
Divider and Tube Unit. Use transformer oil in CABLE
the cable recepticals of the H. V. Divider and
silicone insulating compound, G635, at the tube X10 PROBES i
unit. Apply silicone compound per Direction EDS NDE Ol Hi
13871A. Follow standard procedures for installing E CH 2
the grounding wave washer, and rubber gasket GROUND AMX 164 OSCIL | OSCOPE
at each H. V. cable connection. AND SCORE (dual trace with algebraic addition)
POWER CORD OBSERVE SCOPE FROM
Do not connect the scope to the H. V. Divider LEAD SHIELDED AREA
at this time. 18738-012
6. Reconnect transformer primary leads at 7P1 and ILLUSTRATION 4-11-30
7P2. Install cover over primary leads on trans-
former. Be sure that plastic grommet is snapped
in place in cover cutout.
Close collimator blades and tape a sheet of 1/8”
(3.175 mm) lead over collimator window. Cover
tube unit (primarily cathode end) with a lead
apron or place lead screens for additional radia-
tion protection.
4-11-26
