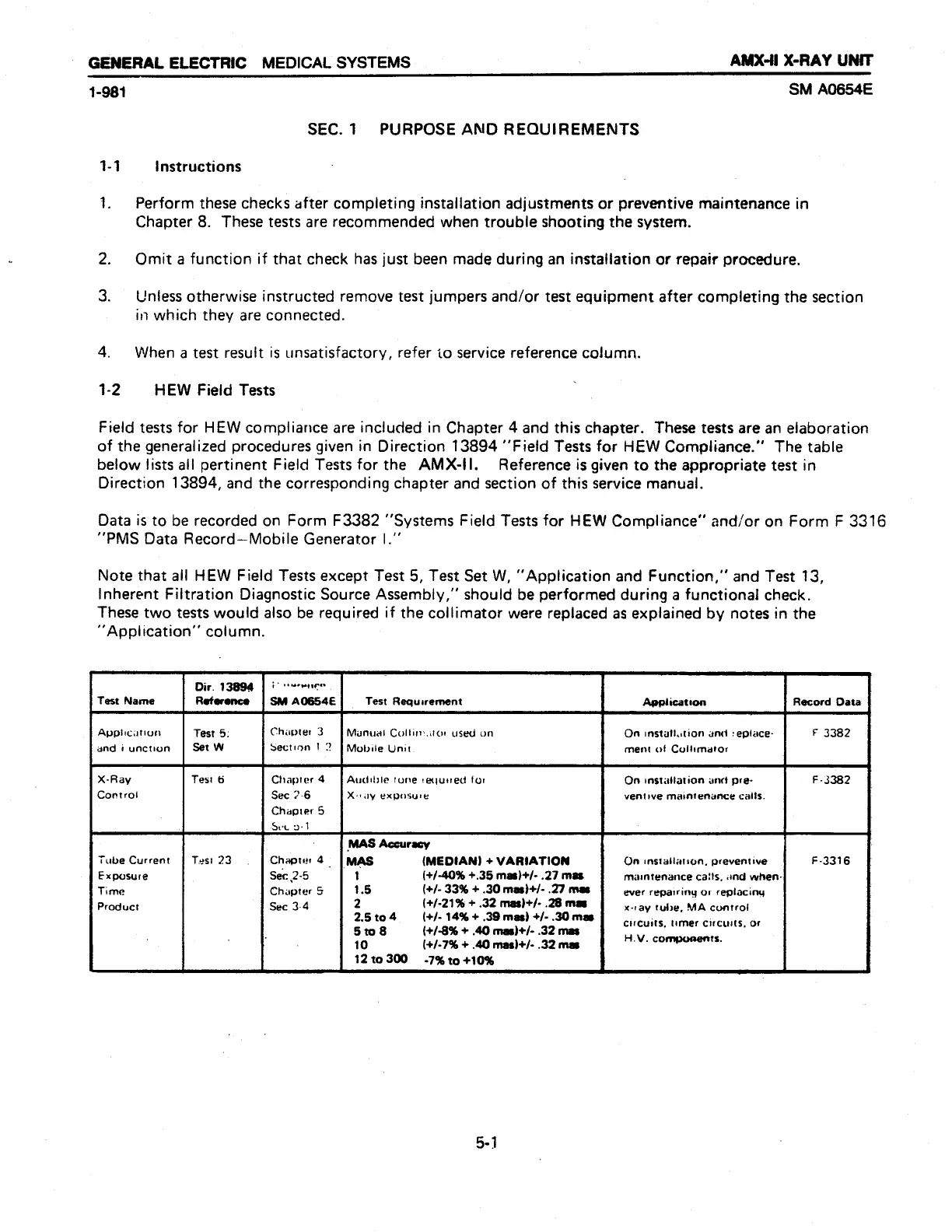

GE AMX-II User Manual

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-il X-RAY UNIT
1-981 SM A0654E
SEC. 1 PURPOSE AND REQUIREMENTS
1-1 Instructions
1. Perform these checks after completing installation adjustments or preventive maintenance in
Chapter 8. These tests are recommended when trouble shooting the system.
2. Omita function if that check has just been made during an installation or repair procedure,
3. Unless otherwise instructed remove test jumpers and/or test equipment after completing the section
in which they are connected.
4. When a test result is unsatisfactory, refer io service reference column.
1-2 HEW Field Tests
Field tests for HEW compliance are included in Chapter 4 and this chapter. These tests are an elaboration
of the generalized procedures given in Direction 13894 "Field Tests for HEW Compliance.” The table
below lists all pertinent Field Tests for the AMX-Il. Reference is given to the appropriate test in
Direction 13894, and the corresponding chapter and section of this service manual.
Data is to be recorded on Form F3382 “Systems Field Tests for HEW Compliance” and/or on Form F 3316
“PMS Data Record—Mobile Generator |.”
Note that all HEW Field Tests except Test 5, Test Set W, “Application and Function,” and Test 13,
Inherent Filtration Diagnostic Source Assembly,” should be performed during a functional check.
These two tests would also be required if the collimator were replaced as explained by notes in the
“Application” column.
Dir. 13894 | "nc
Test Name Reference | SM A0654E Test Requirement Application Record Data
Application Test 5: Chapter 3 Manual Coltimator used on On instatlution and :eplace- F 3382
and i unction Set W Section 1 2 | Mobile Unit ment of Collimator
X-Ray Test 6 Chapter 4 Audible tone required for On installation and pre- F-3382
Control Sec 2-6 X- dy exposure ventive maintenance calls.
Chapier 5
Seu 2.1
МА$ Ассигасу
Tube Current Test 23 © Chapter 4 | MAS (MEDIAN) + VARIATION On installation, preventive F-3316
Exposure Sec 2-5 1 (+/-40% +.35 mas)+/- .27 mas maintenance calls, and when-
Time Chapter 5 1.5 (+/- 33% + .30 mas}+/- .27 mas ever repairing or replacing
Product Sec 3-4 2 (+/-21% + .32 mas)+/- .28 mas x-ray tube, MA control
2.5 to 4 (+/- 14% + .39 mas) +/- .30 mas circuits, timer circuits, or
5 to 8 (+/-8% + .40 mas)+/- .32 mas H.V. components
10 (+/-7% + .40 mas)+/- .32 mas na `
1210300 -7% to +10%
