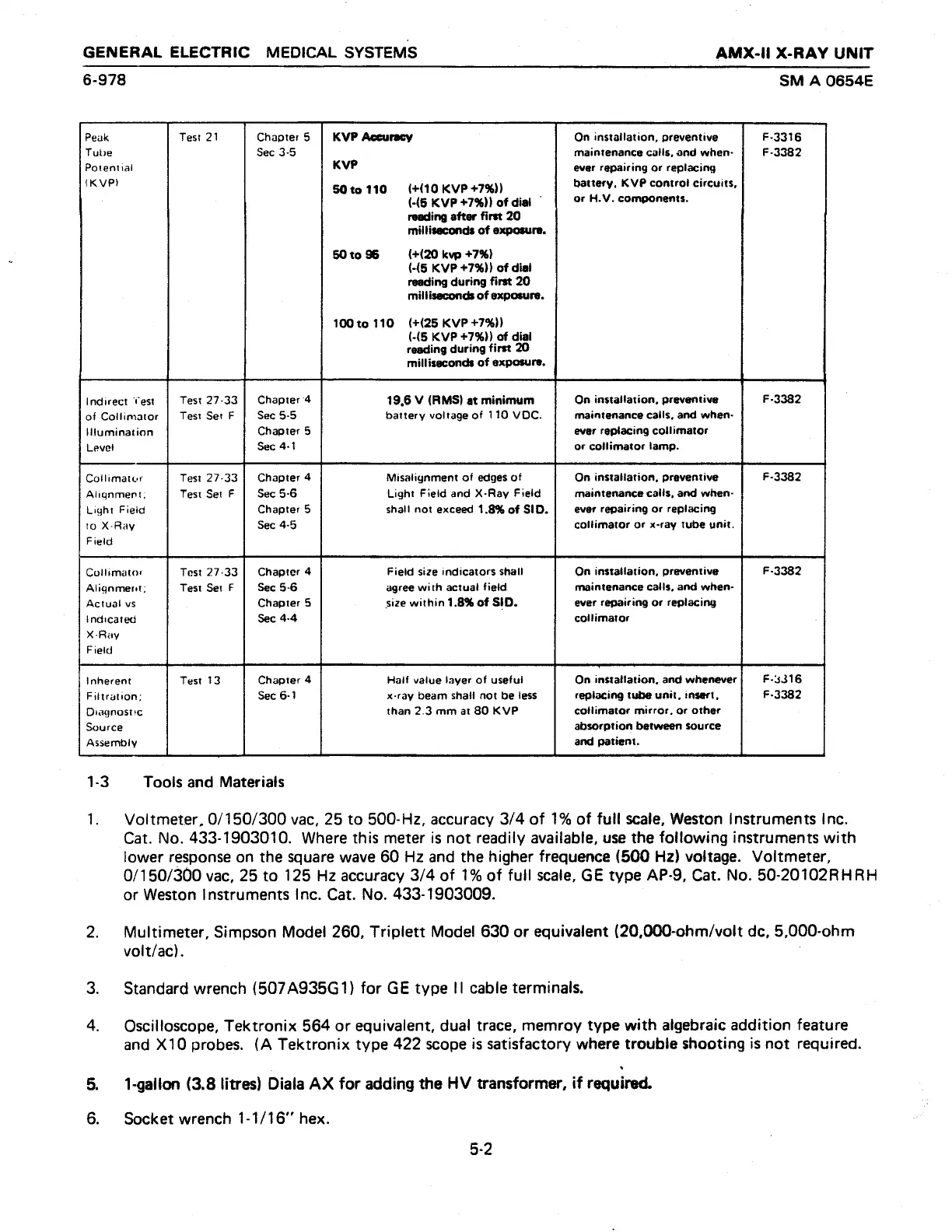

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-li
X-RAY
UNIT
6-978
SM
A
0654E
Peak
Test
21
Chapter
5
KVP
Accuracy
On
installation,
preventive
F-3316
Tube
Sec
3-5
maintenance
calls,
and
when-
F-3382
Potential
KvP
ever
repairing
or
replacing
(KVP)
50
to
110
(+(10
KVP
+7%))
|
battery,
KVP
control
circuits,
(-(5
KVP
+7%))
of
dial
or
H.V.
components.
reading
after
first
20
miiliseconds
of
exposure.
50
to
96
(+(20
kvp
+7%)
(-(5
KVP
+7%))
of
dial
reading
during
first
20
milliseconds
of
exposure.
100
to
110
(+25
KVP
+7%))
(-(5
KVP
+7%))
of
dial
reading
during
first
20
milliseconds
of
exposure.
Indirect
Test
Test
27-33
|
Chapter
4
19.6
V
(RMS)
at
minimum
On
installation,
preventive
F-3382
of
Collimator
Test
Set
F
Sec
5-5
battery
voltage
of
110
VOC.
maintenance
calis,
and
when-
Hiumination
Chapter
5
ever
repiacing
collimator
Level
Sec
4-1
or
collimator
lamp.
Collimatur
Tesi
27-33
|
Chapter
4
Misalignment
of
edges
of
On
installation,
preventive
F-3382
Ahgnment;
Test
Set
F
Sec
5-6
Light
Field
and
X-Ray
Field
maintenance
calis,
and
when-
Light
Fieid
Chapter
5
shall
not
exceed
1.8%
of
SID.
ever
repairing
or
replacing
to
X-Ray
Sec
4-5
collimator
or
x-ray
tube
unit.
Field
Collimator
Test
27-33
|
Chapter
4
Field
size
indicators
shall
On
installation,
preventive
F-3382
Alignment;
Test
Set
F
Sec
5-6
agree
with
actual
field
maintenance
calls,
and
when-
Actual
vs
Chapter
5
size
within
1.8%
of
SiD.
ever
repairing
or
replacing
indicated
Sec
4-4
collimator
X-Ray
Field
Inherent
Test
13
Chapter
4
Half
value
layer
of
usefui
On
installation,
and
whenever
F-3316
Filtration;
Sec
6-1
x-ray
beam
shail
not
be
less
replacing
tube
unit,
insert,
F-3382
Diagnostic
than
2.3
mm
at
80
KVP
collimator
mirror,
or
other
Source
absorption
between
source
Assembly
and
patient.
1-3
Tools
and
Materials
1.
Voltmeter,
0/150/300
vac,
25
to
500-Hz,
accuracy
3/4
of
1%
of
full
scale,
Weston
Instruments
Inc.
Cat.
No.
433-1903010.
Where
this
meter
is
not
readily
available,
use the
following
instruments
with
lower
response
on
the
square
wave
60 Hz
and
the
higher
frequence
(500
Hz)
voitage.
Voltmeter,
0/150/300
vac,
25
to
125
Hz
accuracy
3/4
of
1%
of
full
scale,
GE
type
AP-9,
Cat.
No.
50-20102RHRH
or
Weston
Instruments
Inc.
Cat.
No.
433-1903009.
2.
Multimeter,
Simpson
Mode!
260,
Triplett
Mode!
630
or
equivalent
(20,000-ohm/volt
dc,
5,000-ohm
volt/ac).
3.
Standard
wrench
(507A935G1)
for
GE
type
Il
cable
terminals.
4.
Qscilloscope,
Tektronix
564
or
equivalent,
dual
trace,
memroy
type
with
algebraic
addition
feature
and
X10
probes.
(A
Tektronix
type
422
scope
is
satisfactory
where
trouble
shooting
is
not
required.
5.
1-gallon
(3.8
litres)
Diala
AX
for
adding
the
HV
transformer,
if
required.
6.
Socket
wrench
1-1/16"
hex.
5-2
