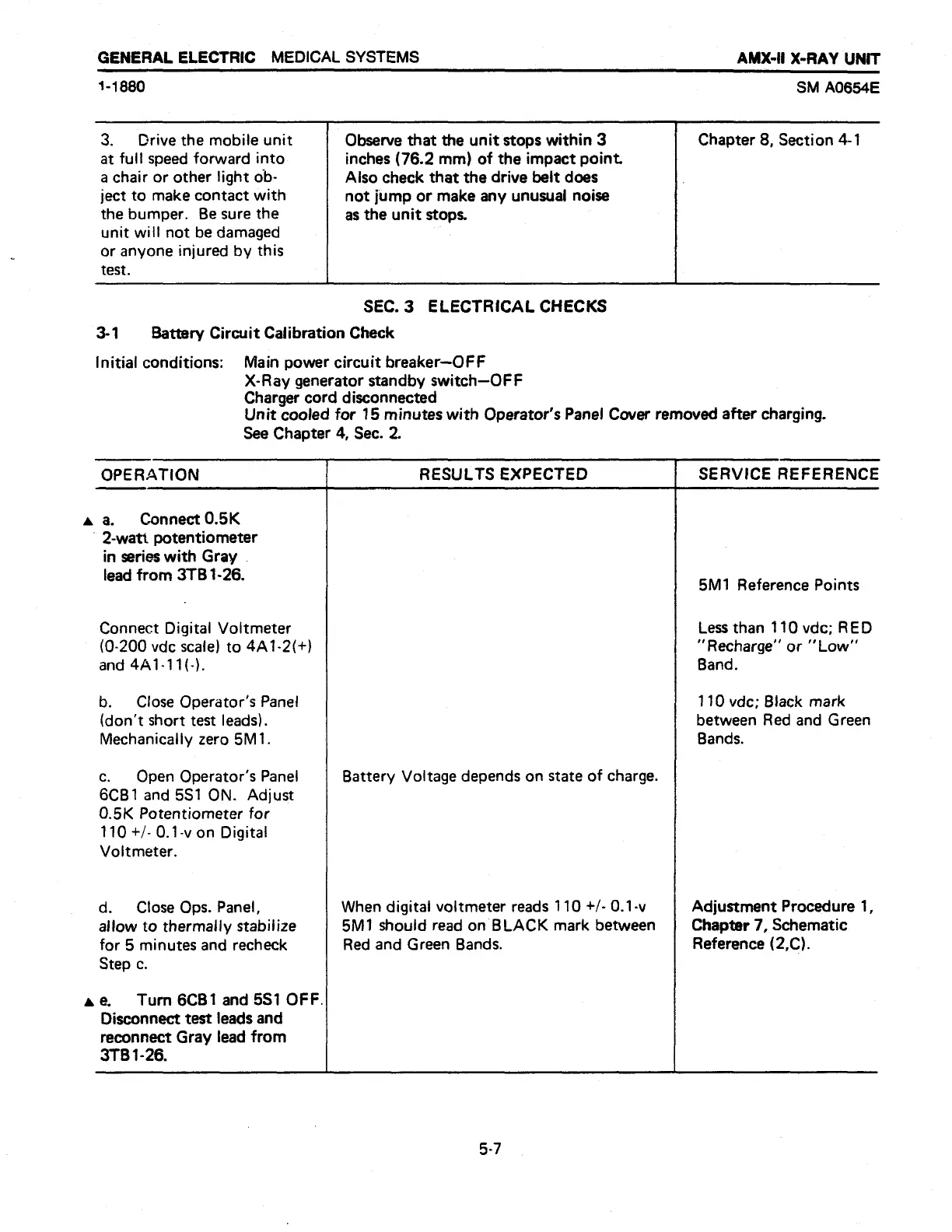

GENERAL ELECTRIC MEDICAL SYSTEMS
AMX-ll X-RAY UNIT
1-1880
SM A0654E
3. Drive the mobile unit
at full speed forward into
a chair or other light ob-
ject to make contact with
the bumper. Be sure the
unit will not be damaged
or anyone injured by this
test.
Observe that the unit stops within 3
inches (76.2 mm) of the impact point.
Also check that the drive belt does
not jump or make any unusual noise
as the unit stops.
Chapter 8, Section 4-1
SEC.3 ELECTRICAL CHECKS
3-1 Battery Circuit Calibration Check
Initial conditions: Main power circuit breaker—OFF
X-Ray generator standby switch—OFF
Charger cord disconnected
Unit cooled for 15 minutes with Operator’s Pane! Cover removed after charging.
See Chapter 4, Sec. 2.
OPERATION
RESULTS EXPECTED SERVICE REFERENCE
aa. Connect 0.5K
” 2-watt potentiometer
in series with Gray .
lead from 3TB1-26.
Connect Digital Voltmeter
(0-200 vdc scale) to 4A1-2(+)
and 4A1-11(-).
b. Close Operator's Panel
(don't short test leads).
Mechanically zero 5M1.
c. Open Operator's Panel
6CB1 and 551 ON. Adjust
0.5K Potentiometer for
110 +/- 0.1-von Digital
Voltmeter.
d. Close Ops. Panel,
allow to thermally stabilize
for 5 minutes and recheck
Step c.
ae. Turn 6CB1 and 5S1 OFF.
Disconnect test leads and
reconnect Gray lead from
3181-26.
Battery Voltage depends on state of charge.
When digital voltmeter reads 110 +/- 0.1-v
5M1 should read on BLACK mark between
Red and Green Bands.
5M1 Reference Points
Less than 110 vdc; ŘED
“Recharge” or “Low”
Band.
110 vde; Black mark
between Red and Green
Bands.
Adjustment Procedure 1,
Chapter 7, Schematic
Reference (2,C).
5-7
