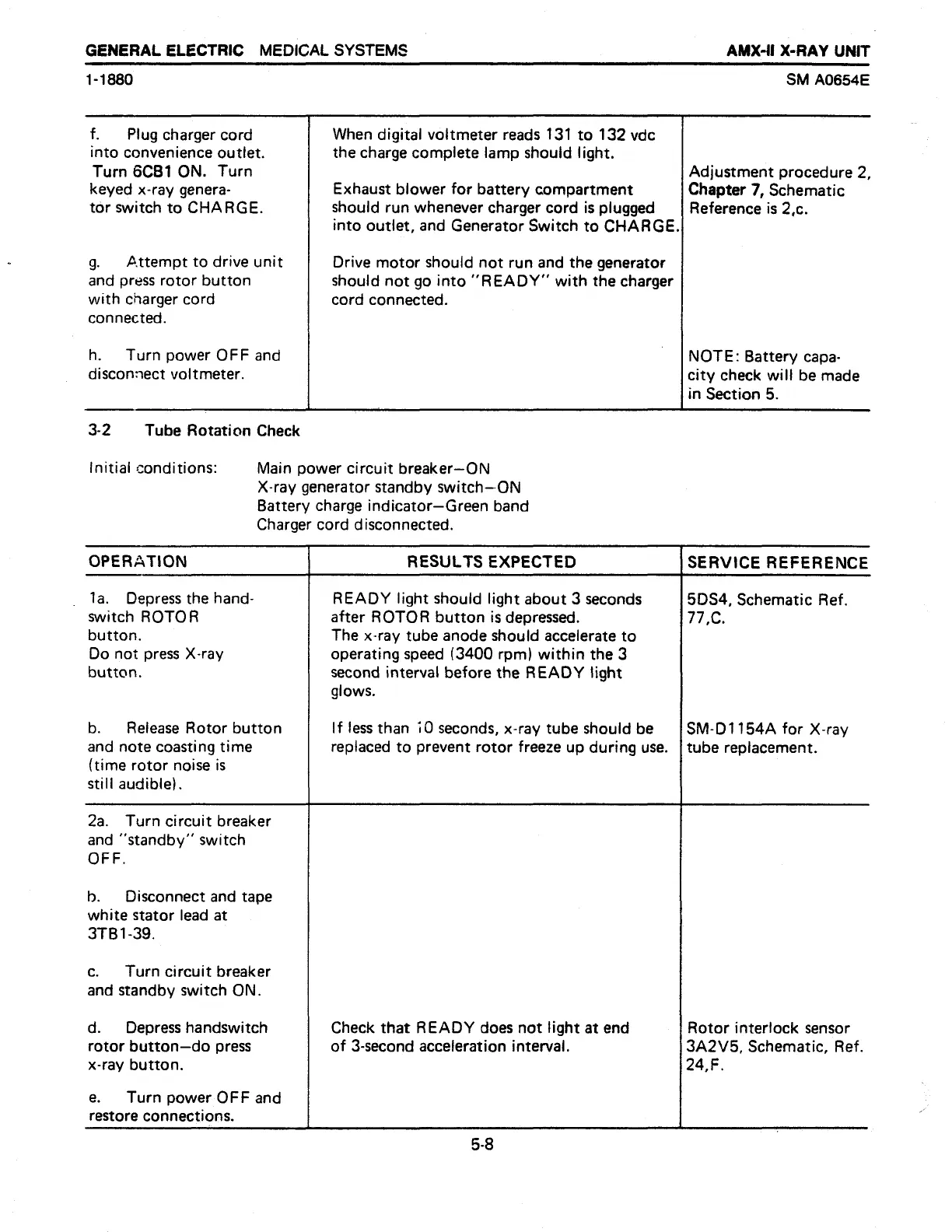

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-I X-RAY UNIT
1-1880
SM A0654E
f. Plug charger cord
into convenience outlet.
Turn 6CB1 ON. Turn
keyed x-ray genera-
tor switch to CHARGE.
g. Attempt to drive unit
and press rotor button
with charger cord
connected.
h. Turn power OFF and
disconnect voltmeter.
When digital voltmeter reads 131 to 132 vde
the charge complete lamp should light.
Exhaust blower for battery compartment
should run whenever charger cord is plugged
into outlet, and Generator Switch to CHARGE.
Drive motor should not run and the generator
should not go into "READY" with the charger
cord connected.
Adjustment procedure 2,
Chapter 7, Schematic
Reference is 2,c.
NOTE: Battery capa-
city check will be made
in Section 5.
3-2 Tube Rotation Check
Initial conditions:
Main power circuit breaker—ON
X-ray generator standby switch— ON
Battery charge indicator— Green band
Charger cord disconnected.
OPERATION
RESULTS EXPECTED
SERVICE REFERENCE
. la. Depress the hand-
switch ROTOR
button.
Do not press X-ray
button.
b. Release Rotor button
and note coasting time
(time rotor noise is
still audible).
READY light shouid light about 3 seconds
after ROTOR button is depressed.
The x-ray tube anode should accelerate to
operating speed (3400 rpm) within the 3
second interval before the READY light
glows.
if less than 10 seconds, x-ray tube should be
replaced to prevent rotor freeze up during use.
5DS4, Schematic Ref.
77,0.
SM-D1154A for X-ray
tube replacement.
2a. Turn circuit breaker
and “standby” switch
OFF.
b. Disconnect and tape
white stator lead at
3TB1-39.
с. Turn circuit breaker
and standby switch ON.
d. Depress handswitch
rotor button—do press
x-ray button.
e. Turn power OFF and
restore connections.
Check that READY does not light at end
of 3-second acceleration interval.
Rotor interlock sensor
3A2V5, Schematic, Ref.
24,F.
5-8
