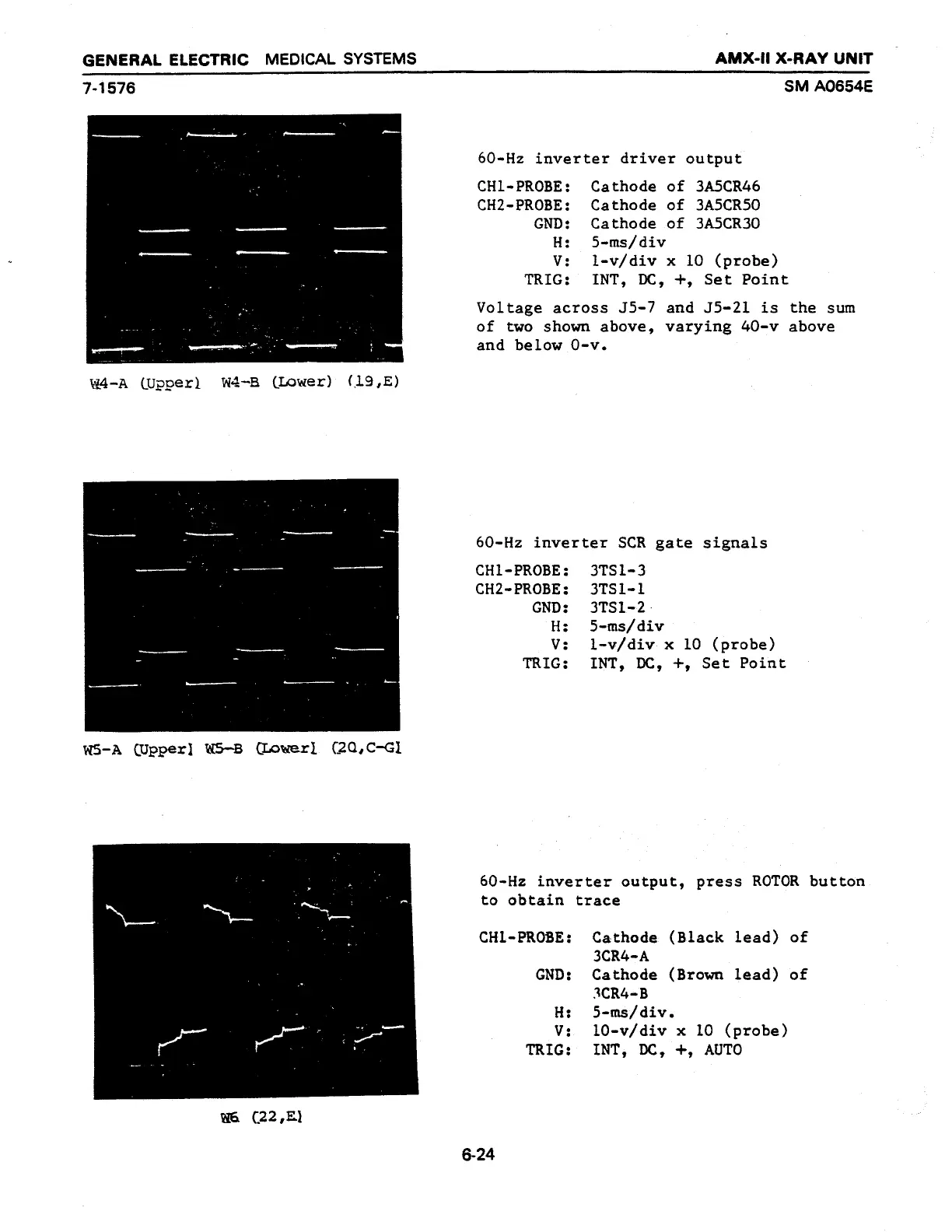

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-il
X-RAY
UNIT
7-1576
SM
A0654E
60-Hz
inverter
driver
output
CH1-PROBE:
Cathode
of
3A5CR46
CH2-PROBE:
Cathode
of
3A5CR50
GND:
Cathode
of
3A5CR30
H:
5-ms/div
У:
l-v/div
x
10
(probe)
TRIG:
INT,
DC,
+,
Set
Point
Voltage
across
J5-7
and
J5-21
is
the
sum
у
E
of
two
shown
above,
varying
40-v
above
AE
—
:
ei
and
below
O-v.
W4-A
(Upper)
W4-B
(Lower)
(19,E)
60-Hz
inverter
SCR
gate
signals
CHL-PROBE:
3TS1-3
CH2-PROBE:
3TS1-1
GND:
3TS1-2.
H:
5-ms/div
У:
1l-v/div
x
10
(probe)
TRIG:
INT,
DC,
+,
Set
Point
W5-A
(Upper]
WS-B
(Lower]
(20,C-G]
60-Hz
inverter
output,
press
ROTOR
button
to
obtain
trace
CHL-PROBE:
Cathode
(Black
lead)
of
3CR4-A
GND:
Cathode
(Brown
lead)
of
3CR4-B
H:
5-ms/div.
V:
10-v/div
x
10
(probe)
TRIG:
INT,
DC,
+,
AUTO
w6
(22,E)
6-24
