GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS
AMX-II X-RAY UNIT
7-1576
М7-А:
GND:
H:
Vs
TRIG:
W7-B:
PROBE:
GND:
Set up

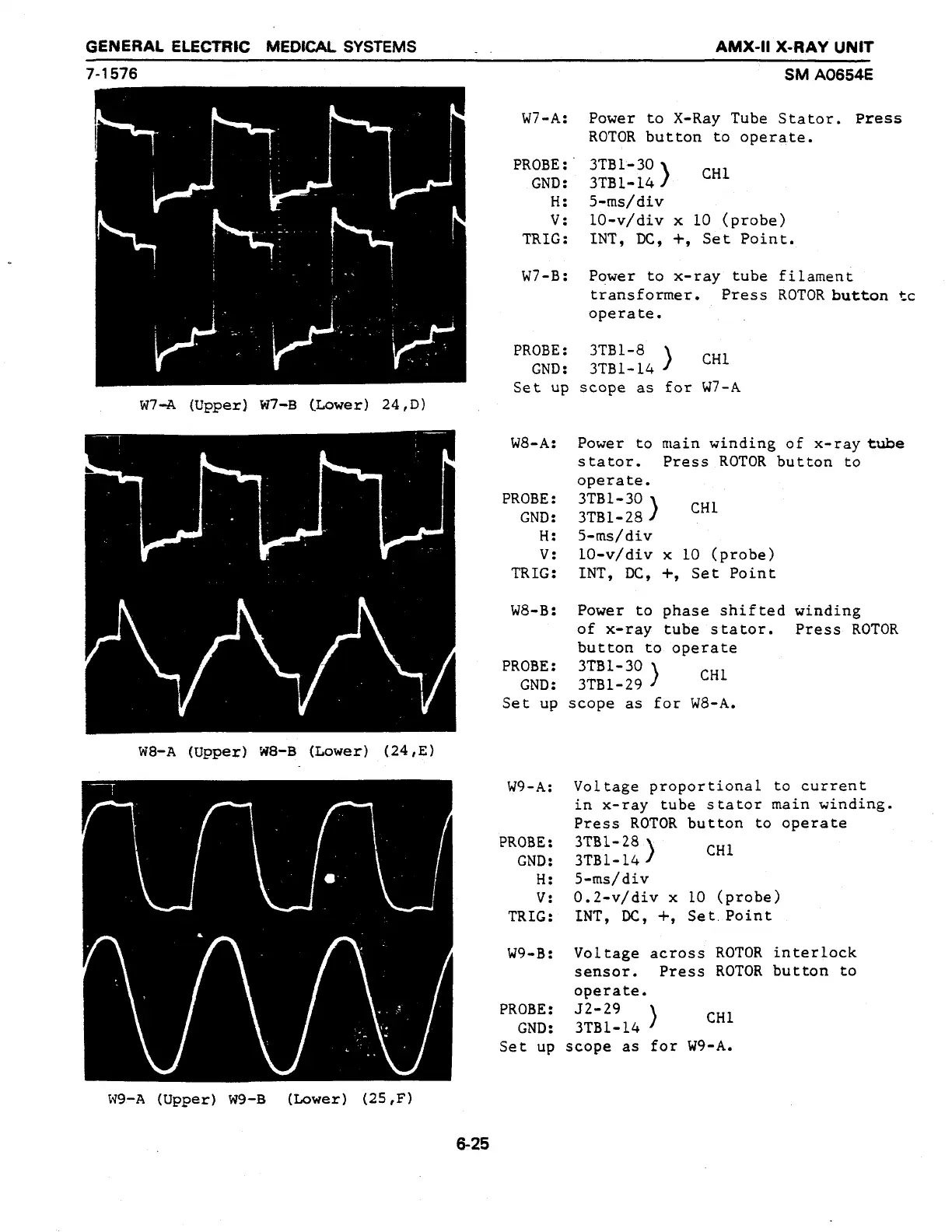

W7-A (Upper) W7-B (Lower) 24,D)
1 W8-A:
PROBE:
GND:
H:
Vs
TRIG:
W8-B:
PROBE:
GND:
W8-A (Upper) W8-B (Lower) (24,E)
W9-A:
PROBE:
GND:
H:
Vs
TRIG:
W9-B:
PROBE:
GND:
Set up
(25,F)
W9-A (Upper) W9-B (Lower)
6-25
PROBE:
SM A0654E
Power to X-Ray Tube Stator. Press
ROTOR button to operate.
3TB1-30
3TB1-14 ノ СН
5-ms/div
10-v/div x 10 (probe)
INT, DC, +, Set Point.
Power to x-ray tube filament
transformer. Press ROTOR button tc
operate.
3TB1-8
3TB1-14 ) CHI
scope as for W/-A
Power to main winding of x-ray tube
stator. Press ROTOR button to
operate.
3TB1-30
3TB1-28 CHI
5-ms/div
10-v/div x 10 (probe)
INT, DC, +, Set Point
Power to phase shifted winding
of x-ray tube stator. Press ROTOR
button to operate
3TB1-30
3TB1-29 CHL
Set up scope as for W8-A.
Voltage proportional to current
in x-ray tube stator main winding.
Press ROTOR button to operate
3TB1-28 \
3TB1-14 CHL
5-ms/div
0.2-v/div x 10 (probe)
INT, DC, +, Set Point
Voltage across ROTOR interlock
sensor. Press ROTOR button to
operate.
J2-29
3TB1-14 ) CHL
scope as for W9-A.
