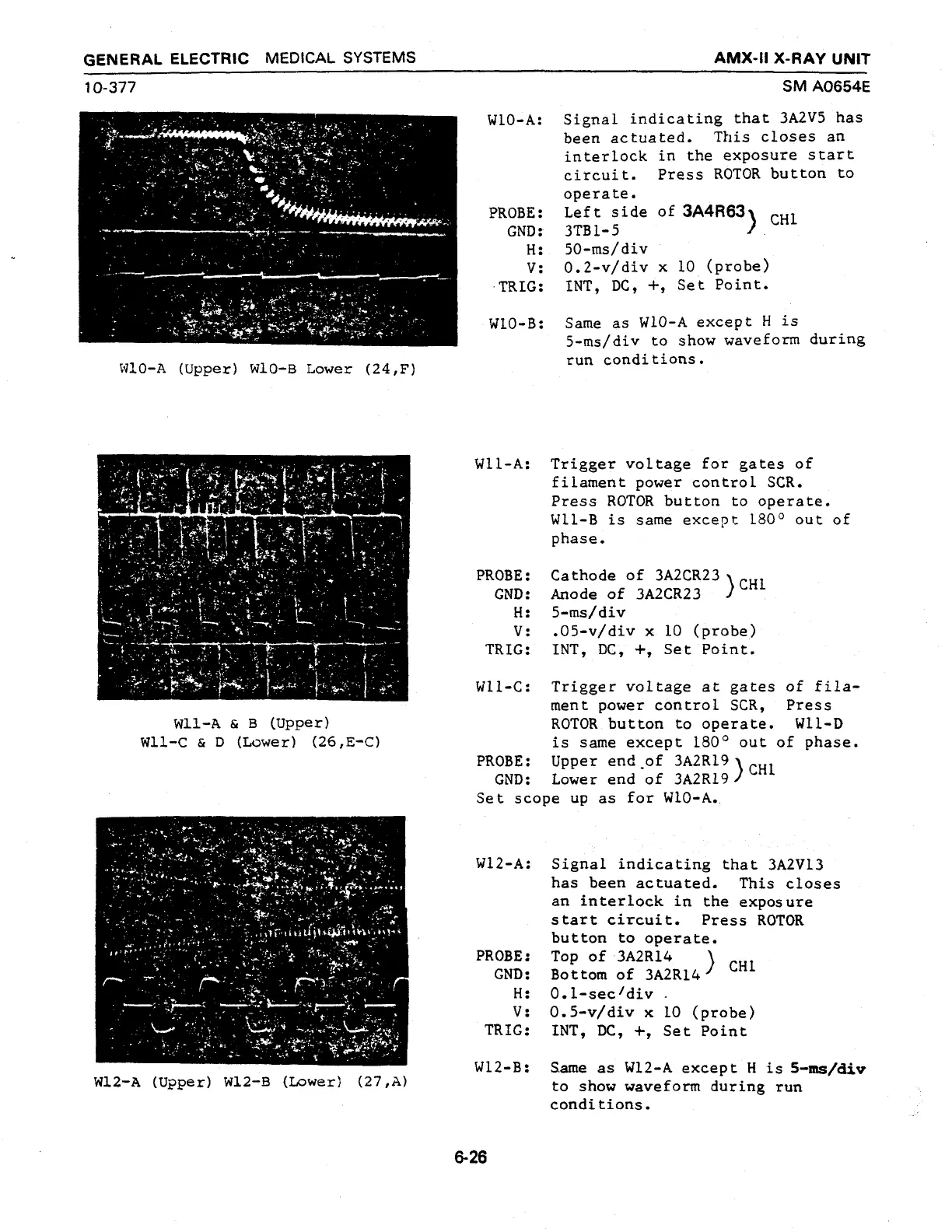

GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS
AMX-II X-RAY UNIT
10-377
WIO-A:
PROBE:
GND:
Hs
Vs
-TRIG:
WLO-B:
WLO-A (Upper) W10-B Lower (24,F)
Wil-A:
PROBE:
GND:
Hs
V:
TRIG:
WL1-C:
WLI-A & B (Upper)
W11-C а В (Lower) (26,E-C)
PROBE:
GND:
SM A0654E
Signal indicating that 3A2V5 has
been actuated. This closes an
interlock in the exposure start
circuit. Press ROTOR button to
operate.
Left side of 3A4R63
3TB1-5
50-ms/div
0.2-v/div x 10 (probe)
INT, DC, +, Set Point.
) CHL
Same as WIO-A except H is
5-ms/div
to
show
waveform
during
run conditions.
Trigger voltage for gates of
filament power control SCR.
Press ROTOR button to operate.
WLL-B is same except 180° out of
phase.
Cathode of 3A2CR23
Anode of 3A2CR23
5-ms/div
.05-v/div x 10 (probe)
INT, DC, +, Set Point.
усн:
Trigger voltage at gates of fila-
ment power control SCR, Press
ROTOR button to operate. wl1-D
is same except 180° out of phase.
Upper end of 3A2R19 CHI
Lower end of 3A2R19
Set scope up as for WIO-A..
W12-A:
PROBE:
GND:
Hs
Vs
TRIG:
W12-B:
W12-A (Upper) W12-B (Lower) (27,4)
6-26
Signal indicating that 3A2V13
has been actuated. This closes
an interlock in the exposure
start circuit. Press ROTOR
button to operate.
Top of 3A2R14
Bottom of 3A2R14 CH1
0.l-sec/div .
0.5-v/div x 10 (probe)
INT, DC, +, Set Point
Same as W12-A except H is 5-ms/div
to show waveform during run
conditions.
