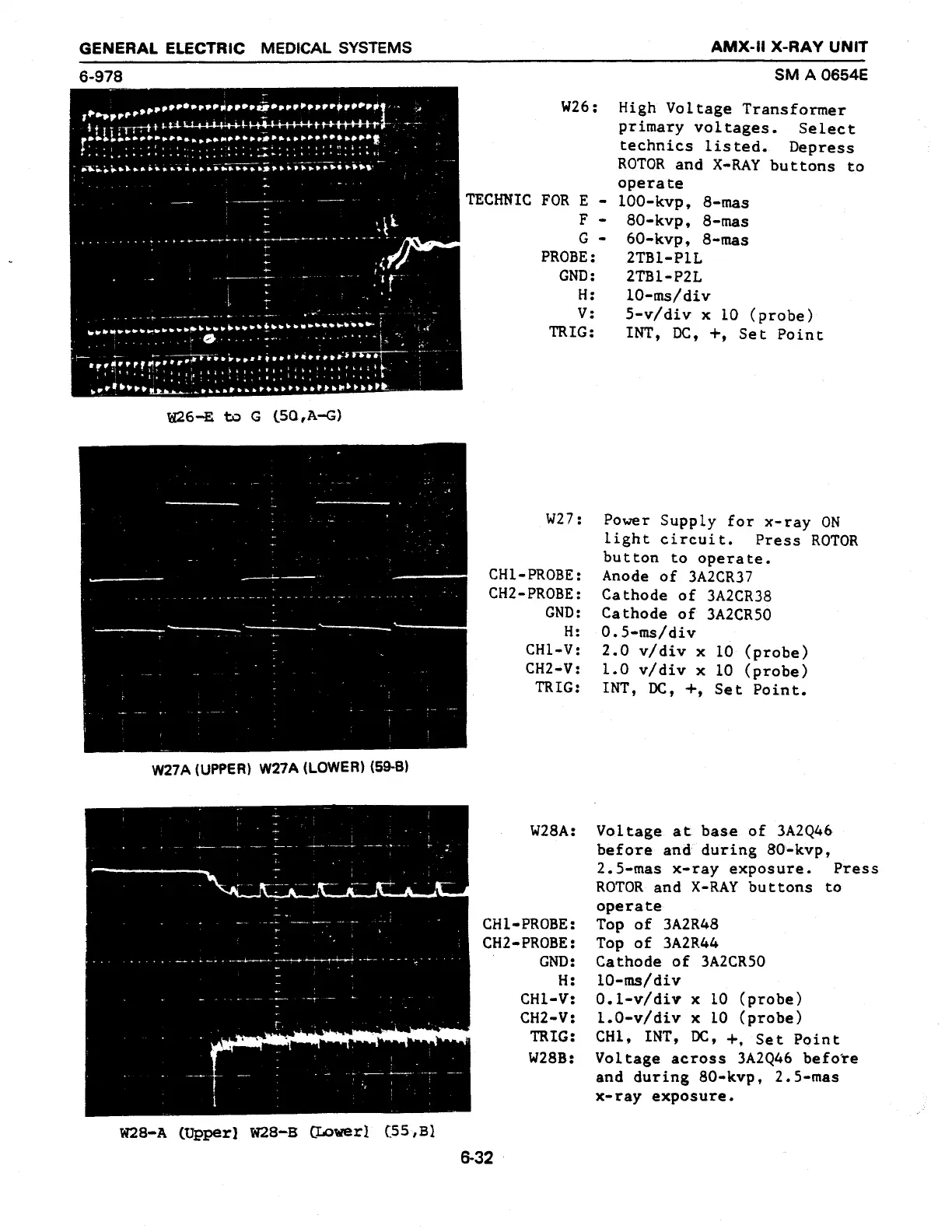

GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS
6-978
了
W26:
Te datti
ο κ κκ ο ο.
На i
TECHNIC FOR E
F
G
PROBE:
GND:
H:
V:
TRIG:
A
a
|
adí
ON
—
аня いい いい いい
ο ο ο ο μμ
W26-E to G (50,A-G)
W27:
CH1-PROBE :
CH2-PROBE:
GND:
W28A:
CHL-PROBE:
CH2-PROBE:
| GND:
Н:
CH1 =Vs
CH2-V:
TRIG:
W28B:
W28-A (Upper) W28-B (Lower) (55,B)
6-32
AMX-il X-RAY UNIT
SM A 0654E
High
Voltage
Transformer
primary
voltages.
Select
technics
listed.
Depress
ROTOR
and
X-RAY
buttons
to
operate
- 100-kvp, 8-mas
- 80-kvp, 8-mas
- 60-kvp, 8-mas
2TBI-PIL
2TB1-P2L
10-ms/div
5-v/div x 10 (probe)
INT, DC, +, Set Point
Power Supply for x-ray ON
light circuit. Press ROTOR
button to operate.
Anode of 3A2CR37
Cathode of 3A2CR38
Cathode of 3A2CR50
0.5-ms/div
2.0 v/div x 10 (probe)
1.0 v/div x 10 (probe)
INT, DC, +, Set Point.
Voltage at base of 3A2Q46
before and during 80-kvp,
2.5-mas x-ray exposure. Press
ROTOR and X-RAY buttons to
operate
Top of 3A2R48
Top of 3A2R44
Cathode of 3A2CR50
10-ms/div
0.1-v/div x 10 (probe)
1.0-v/div x 10 (probe)
CH1, INT, DC, +, Set Point
Voltage across 3A2Q46 before
and during 80-kvp, 2.5-mas
x-ray exposure.
