GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS
7-1576

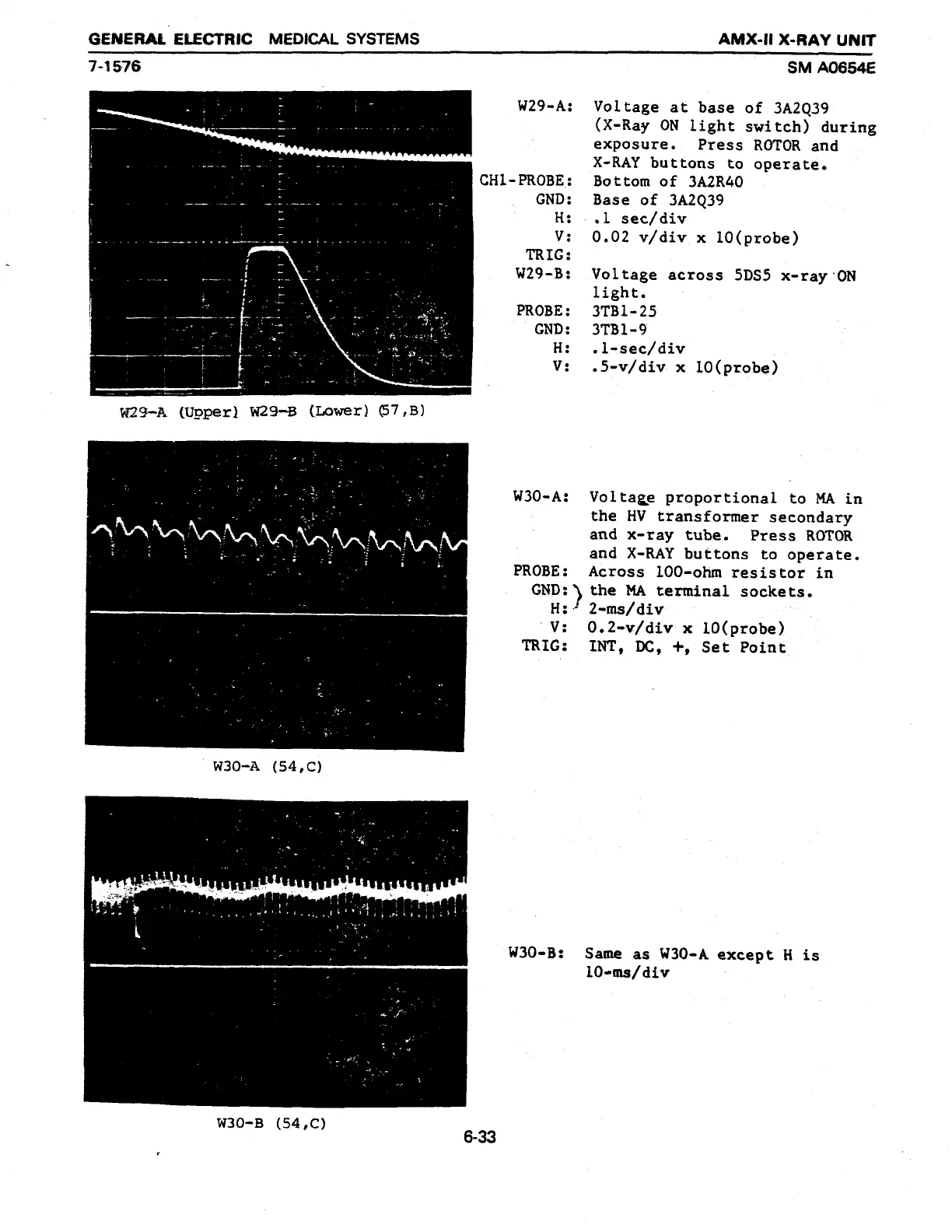

W30-B (54,C)
W29-A:
CH1-PROBE:
GND:
Hs
V;
TRIG:
W29-B:
PROBE:
GND:
H:
Vs
W30-A:
PROBE:
GND: ゝ
“Vs
TRIG:
W30-B:
6-33
AMX-Il X-RAY UNIT
SM A0654E
Voltage at base of 3A2Q39
(X-Ray ON light switch) during
exposure. Press ROTOR and
X-RAY buttons to operate.
Bottom of 3A2R40
Base of 3A2Q39
- al sec/div
0.02 v/div x 10(probe)
Voltage across 5DS5 x-ray ON
light.
3TB1-25
3TB1-9
.l-sec/div
+5-v/div x 10(probe)
Voltage proportional to MA in
the HV transformer secondary
and x-ray tube. Press ROTOR
and X-RAY buttons to operate.
Across 100-ohm resistor in
the MA terminal sockets.
2-ms/div |
0.2-v/div x 10(probe)
INT, DC, +, Set Point
Same as W30-A except H is
10-ms/div
