GE AMX-II

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
77-1576
W-55B (Lower)
max. spe
Uefa SERIO
|
|
hi
i
tt
|
|
|
|
|
|
|
|
W-56A (Upper)
max. speed
W-56B (Lower)
slow speed
W-57A (Upper)
slow speed max. speed
W-57B (Lower)
6-41

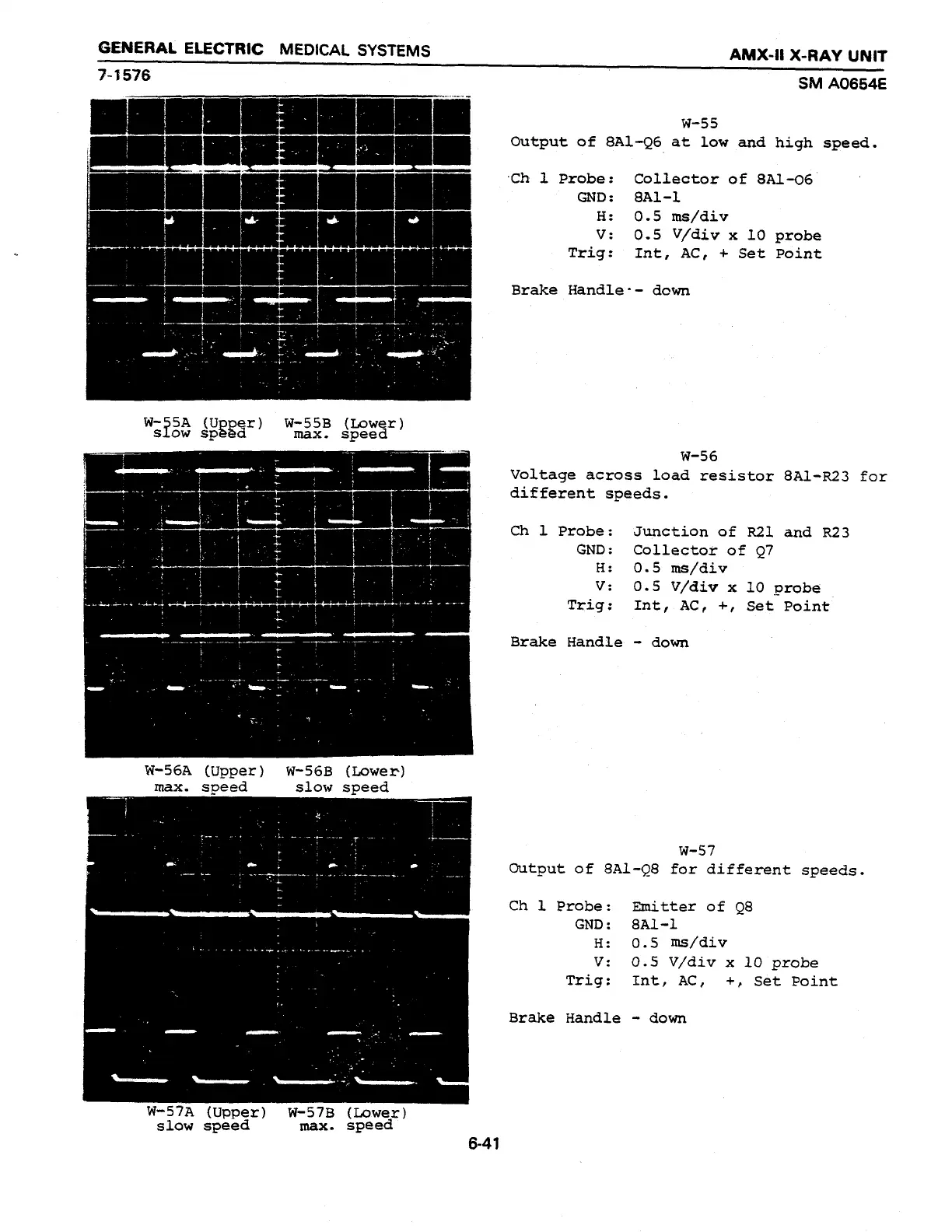

AMX-II X-RAY UNIT
SM A0654E
W-55
Output of 8A1-06 at low and high speed.
‘ch 1 Probe: Collector of 8Al-06
GND: SAl-1
H: 0.5 ms/div
У: 0.5 V/div x 10 probe
Trig: Int, AC, + Set Point
Brake Handle-- down
W-56
Voltage across load resistor 8A1-R23 for
different speeds.
Ch l Probe: Junction of R21 and R23
GND: Collector of 07
H: 0.5 ms/div
V: 0.5 V/div x 10 probe
Trig: Int, AC, +, Set Point
Brake Handle - down
W-57
Output of 8Al-08 for different speeds.
Ch 1 Probe: Emitter of 08
GND: 8А1-1
H: 0.5 ms/div
V: 0.5 V/div x 10 probe
Trig: Int, AC, +, Set Point
Brake Handle - down
