GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
7-1576 SM A0654E

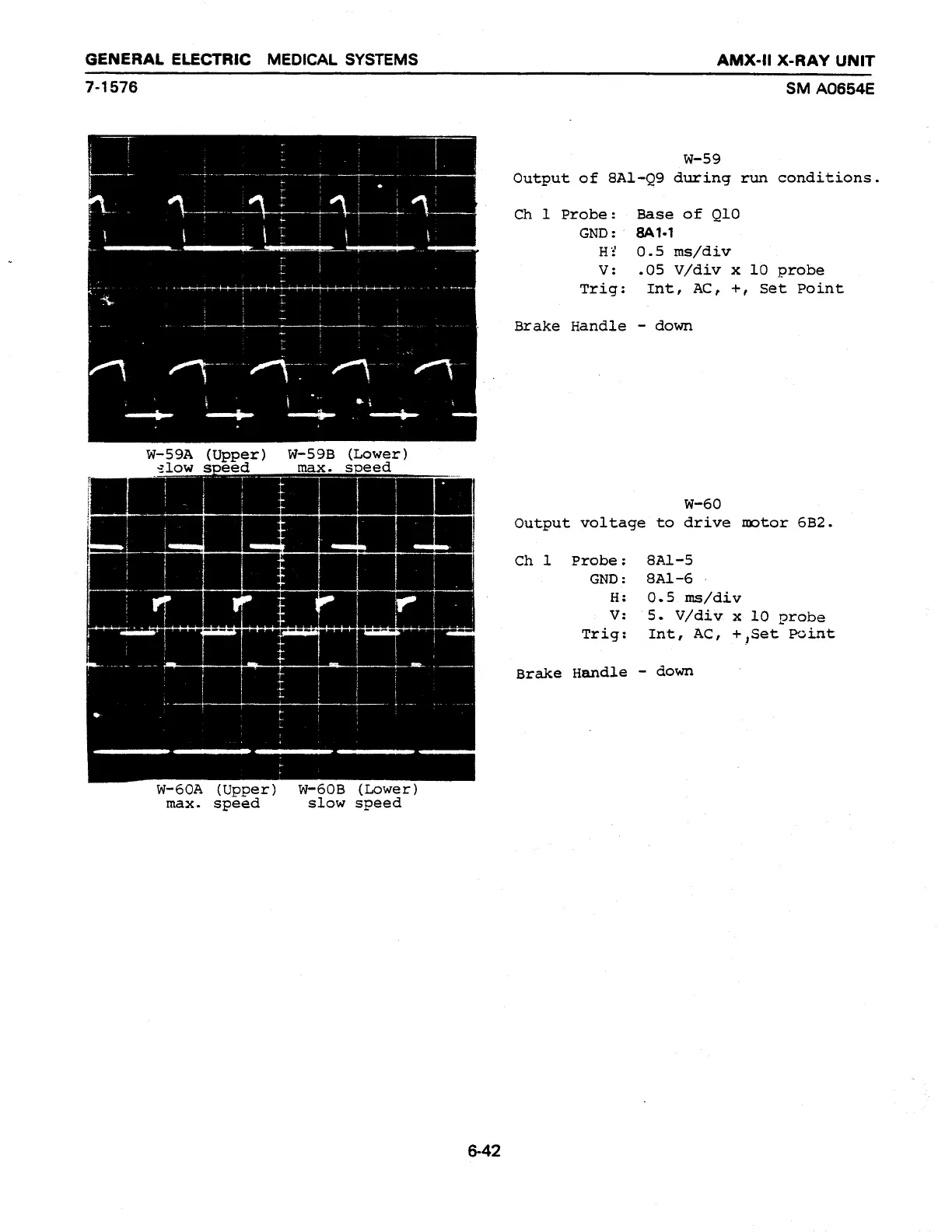

W-59
Output of 8A1-09 during run conditions.
|
|
|
Ch 1 Probe: Base of Q10
GND: 8A1-1
H? 0.5 ms/div
У: .05 V/div x 10 probe
Trig: Int, AC, +, Set Point
ri ἥ
‘ i
r р
H + i
1 +
i を
; A i
+ i
~
i
a
Brake Handle - down
W-59B (Lower)
max. speed
W-59A (Upper)
slow. E d
W-60
Output voltage to drive motor 6B2.
Ch 1 Probe: 8AL-5
GND: 8Al-6 -
H: 0.5 ms/div
V: S. V/div x 10 probe
Trig: Int, AC, +,Set Point
Brake
Handle
-
down
W-60A (Upper) W-60B (Lower)
max. speed slow speed
6-42
